2600 H (UT-26150) - Green Machine Hedge Trimmer Gear Case Parts Diagram

Hedge Trimmer

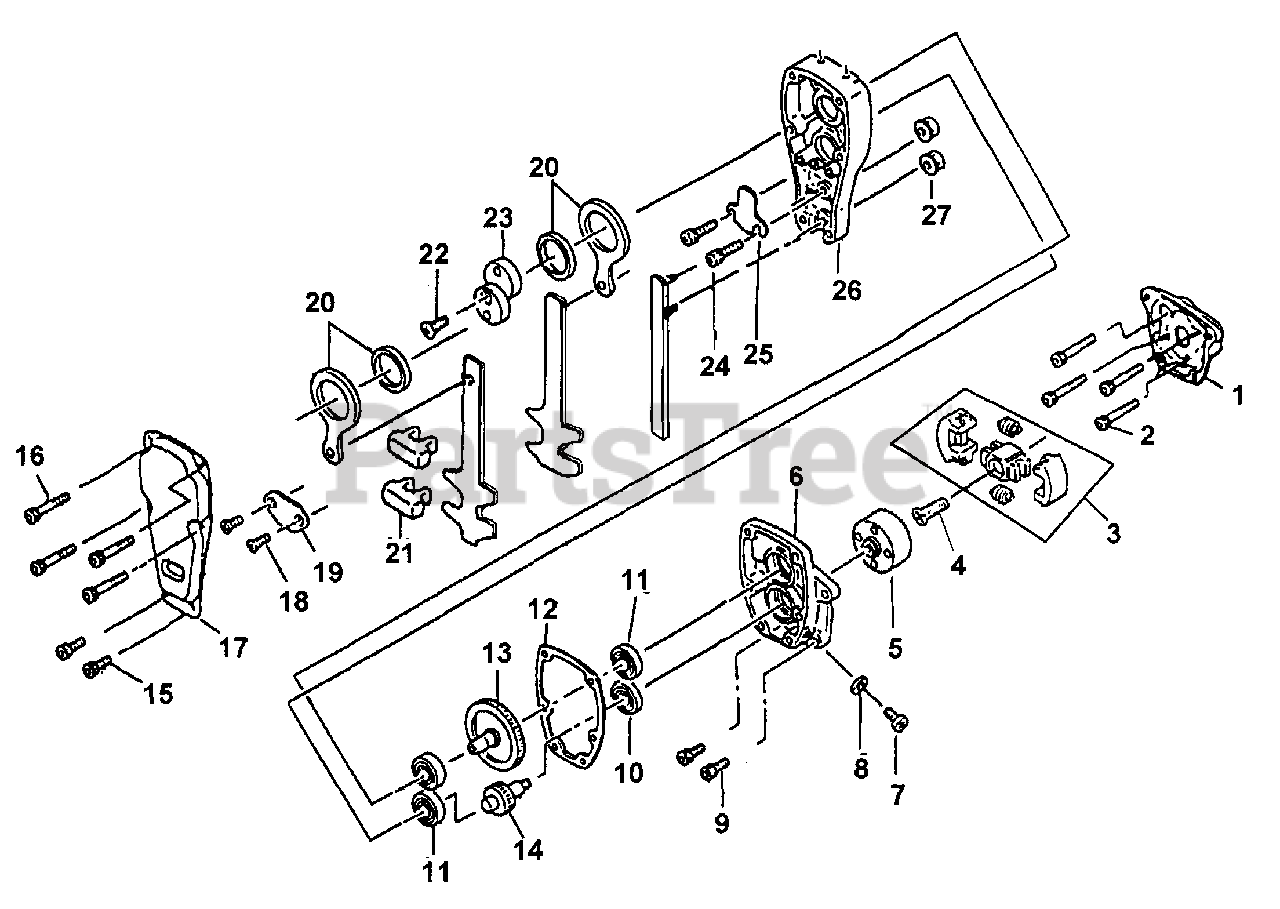

Gear Case Parts Diagram

  • Title

1

Homelite 0797048

ENGINE BASE

$

$

Not available

2

Homelite 0797008

SOCKET SCREW

Note: Torque Specs: 35-40 In/Lbs; 4.0-4.5 Nm

$

$

Not available

3

Homelite A0797050

CLUTCH ASSY.

$

$

Not available

4

Homelite 0797007

FLAT SCREW

Note: Torque Specs: 35-40 In/Lbs; 4.0-4.5 Nm

$

$

Not available

5

Homelite 0797052

CLUTCH DRUM

$

$

Not available

6

Homelite 0797053

GEAR CASE

$

$

Not available

7

Homelite 0797054

SCREW (M6 X 10)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Currently unavailable

8

Homelite 0797055

WASHER, FLAT

$

$

Currently unavailable

9

Homelite 0797009

SOCKET SCREW

Note: Torque Specs: 35-40 In/Lbs; 4.0-4.5 Nm

$

$

Not available

10

Homelite 0797057

BEARING

$

$

Not available

11

Homelite 0797058

BEARING

$

$

Not available

12

Homelite 0797059

PACKING

$

$

Not available

13

Homelite 0797060

GEAR

$

$

Not available

14

Homelite 0797061

PINION

$

$

Not available

15

Homelite 0797062

SOCKET SCREW (M5 X 10)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

16

Homelite 0797063

SOCKET SCREW (M X 40)

Note: Torque Specs: 35-40 In/Lbs; 4.0-4.5 Nm

$

$

Not available

17

Homelite 0797064

CAM CASE COVER

$

$

Not available

18

Homelite 0797065

FLAT SCREW (M5 X 10)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

19

Homelite 0797066

FIXING PLATE

$

$

Not available

20

Homelite 0797067

CAM ROD

$

$

Not available

21

Homelite 0797068

FELT PACKING

$

$

Not available

22

Homelite 0797069

CAM PUSH SCREW

Note: Torque Specs: 35-40 In/Lbs; 4.0-4.5 Nm

$

$

Not available

23

Homelite 0797070

CAM

$

$

Not available

24

Homelite 0797071

HEX BOLT (M5 X 30)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

25

Homelite 0797072

SLIDE PLATE

$

$

Currently unavailable

26

Homelite 0797073

CAM CASE

$

$

Not available

27

Homelite 0797074

FLANGE NUT (M6)

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available
