260 - Poulan Chainsaw, Type 5 (2008-03) Engine - Type 4-5 Parts Diagram

Chainsaw, Type 5

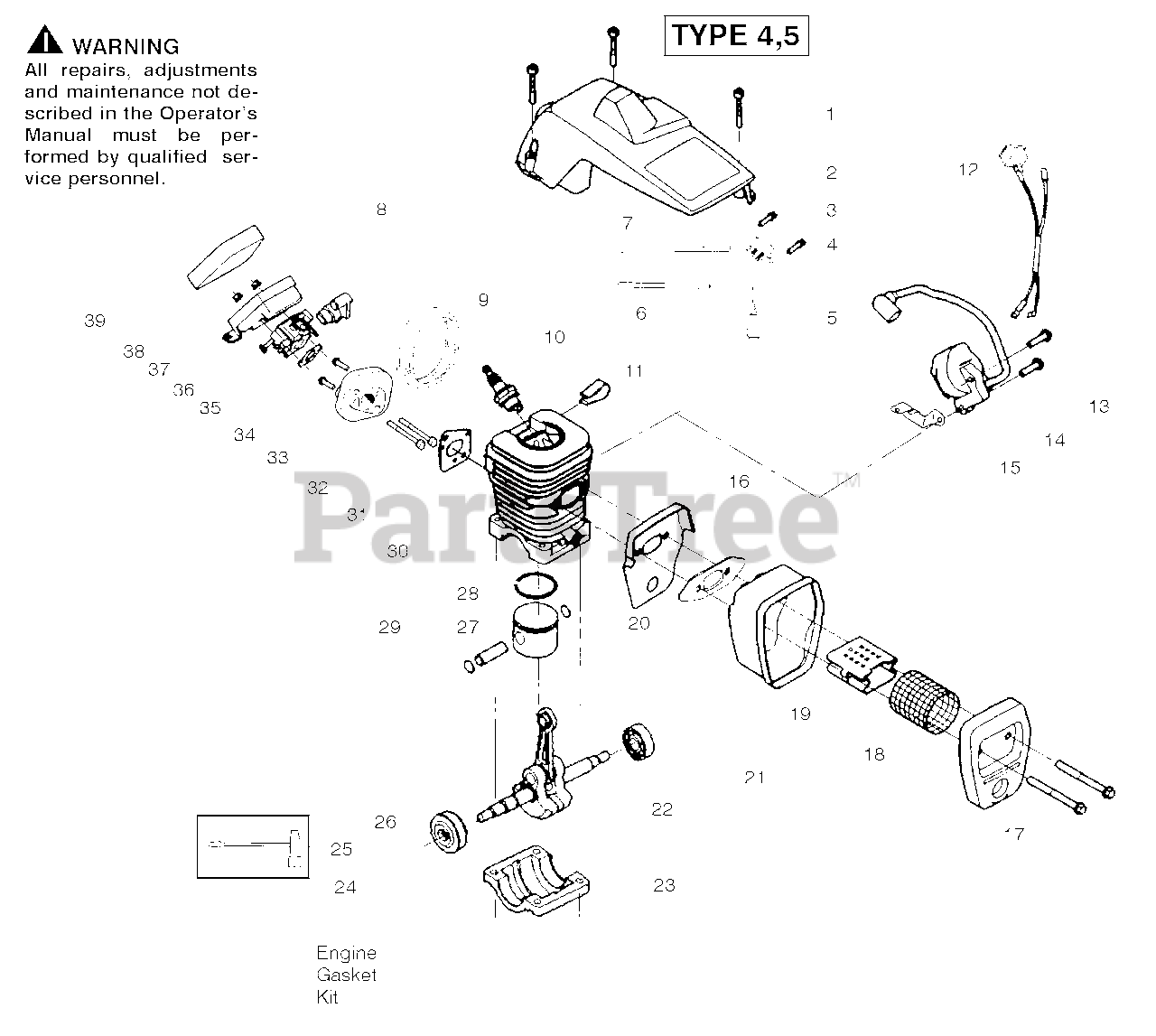

Engine - Type 4-5 Parts Diagram

  • Title

1

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530055638

Shield-Cylinder

$

$

Not available

3

Electrolux/AYP 530047213

Assy-Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 19

0

4

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069247

Kit-Line Purge/Carb. (Small Dia)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Line Purge/Tank (large line)

$11.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530035526

Grommet-Carb Adjust.
(Superseded to 530049244)

$4.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 530054144

Seal-Carb Adapter

$

$

Not available

10

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530049117

Assy-Wire Harness

Note: (Includes switch)

$

$

Not available

13

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

14

Electrolux/AYP 530039198

Module-Ignition

$56.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530049870

Back Plate-Muffler

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

18

Electrolux/AYP 530036103

Screen-Spark

$

$

Not available

19

Electrolux/AYP 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530069608

Gasket-Muffler(kit)

$8.99

$

In Stock, Qty 15

0

21

Electrolux/AYP 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 16-20)

$20.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530069608

Kit-Engine Gasket

Note: (Incl. 20,31,35)

$8.99

$

In Stock, Qty 15

0

25

Electrolux/AYP 530031135

Scrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

28

Electrolux/AYP 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530069719

Kit-Piston

Note: (Incl. 27,28)

$

$

Not available

30

Electrolux/AYP 530071411

Kit-Cylinder
(Superseded to 530012552)

$43.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530069608

Gasket-Adapter(kit)

$8.99

$

In Stock, Qty 15

0

32

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 530049700

Adapter-Carb.

$10.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 530069608

Carb. Gasket(kit)

$8.99

$

In Stock, Qty 15

0

36

Electrolux/AYP 530071621

Kit-Carburetor (WT-625)

$

$

Not available

37

Electrolux/AYP 530047604

Housing-Air Filter

$

$

Not available

38

Electrolux/AYP 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 7

0

39

Electrolux/AYP 530163654

Manual

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 530057757

Decal-Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
