26 RLC - Husqvarna String Trimmer (1988-01) Carburetor Assembly Parts Diagram

String Trimmer

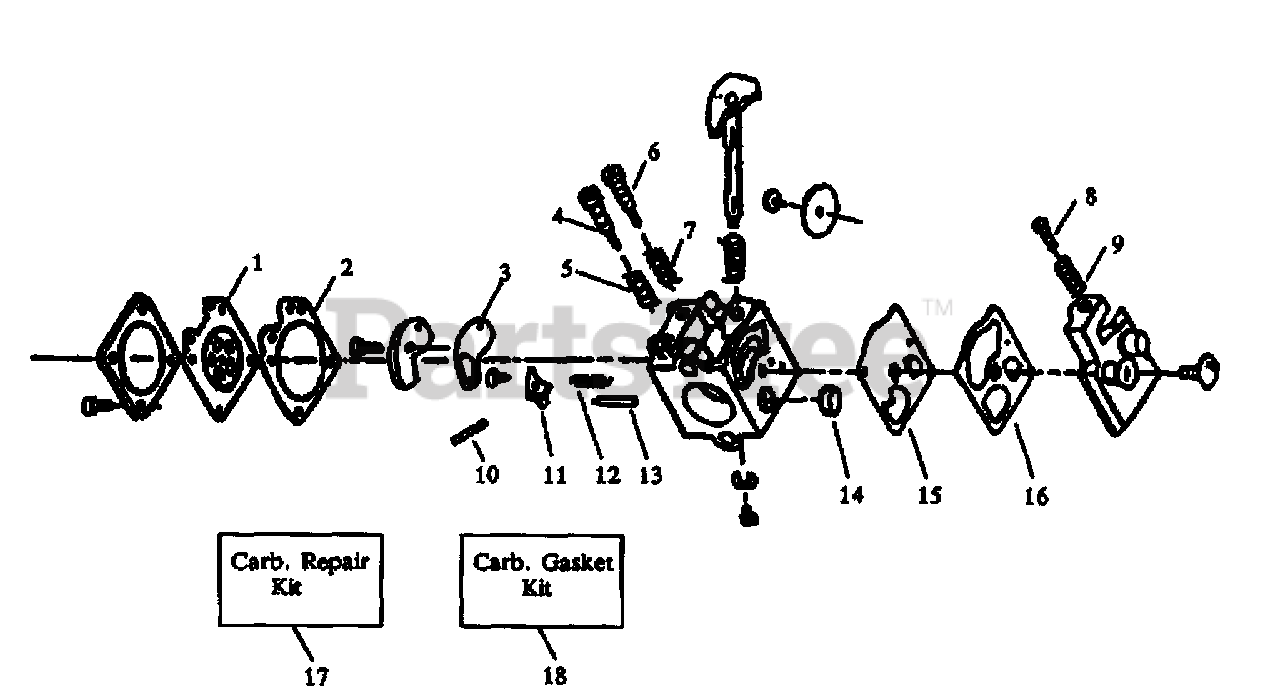

Carburetor Assembly Parts Diagram

  • Title

1

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$51.99

$

In Stock, Qty 10

0

2

Husqvarna 530035151

Metering Diaphragm Gasket

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$3.99

$

In Stock, Qty 8

0

3

Husqvarna 530035147

Circuit Plate Gasket
(Superseded to 501781301)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Not available

4

Husqvarna 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

5

Husqvarna 530035036

Hi Speed Needle Spring

$

$

Not available

6

Husqvarna 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530035023

Idle Needle Spring

$0.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530035208

Idle Speed Spring
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530035028

Metering Pin
(Superseded to 505520125)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$7.99

$

In Stock, only 3 left!

0

11

Husqvarna 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530036188

Metering Lever Spring

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Currently unavailable

13

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$22.99

$

In Stock, Qty 8

0

14

Husqvarna 530035178

Inlet Screen

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 530035166

Pump Diaphram
(Superseded to 504130807)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$31.99

$

In Stock, Qty 16

0

16

Husqvarna 530035164

Pump Gasket
(Superseded to 504130906)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$11.99

$

In Stock, only 3 left!

0

17

Husqvarna 530035260

Carb Kwik Repair Kit

Note: (Includes Ref. No's 1 - 3, 10 - 16)

$26.99

$

In Stock, only 3 left!

0

18

Husqvarna 530035185

Carb. Gasket/Diaphragm Kit

Note: (Includes Ref. No's 1 - 3, 15 & 16)

$36.99

$

In Stock, only 2 left!

0
