26 LC - Husqvarna String Trimmer (SN: 19911400001 - 19931800000) CRANKSHAFT Parts Diagram

String Trimmer

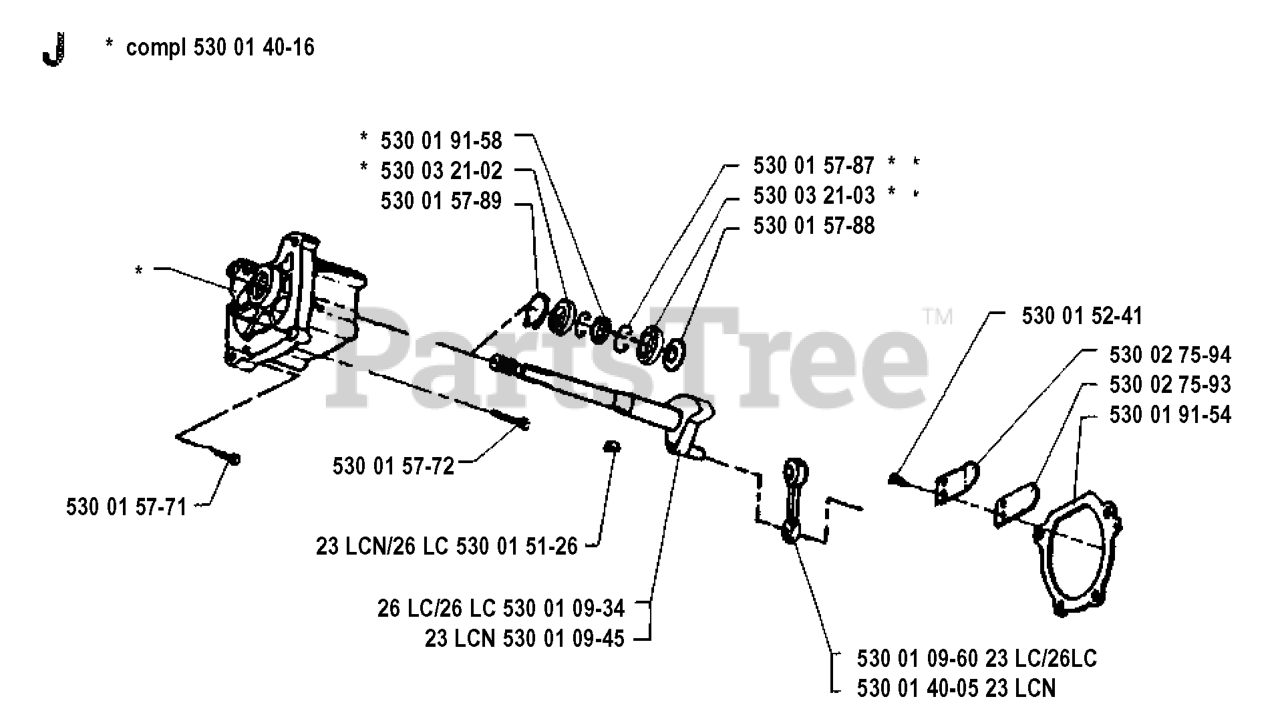

CRANKSHAFT Parts Diagram

  • Title

530 01 57-71

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

530 01 57-72

Husqvarna 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

530 02 75-94

Husqvarna 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

530 01 91-58

Husqvarna 530019158

SEAL-CRANKSHAFT

$6.49

$

Usually ships in 3-10 days

0

530 01 52-41

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

530 02 75-93

Husqvarna 530027593

VALVE-REED

$6.49

$

In Stock, only 2 left!

0

530 03 21-03

Husqvarna 530032103

Bearing-R8 (inner)

$

$

Not available

530 01 09-60

Husqvarna 530010960

ASS'Y-CONNECTING ROD

Note: 23 LC/26LC

$18.99

$

Usually ships in 3-10 days

0

530 01 91-54

Husqvarna 530019154

GASKET-C'CASE/SHROUD

$3.99

$

In Stock, only 1 left!

0

530 01 09-34

Husqvarna 530010934

ASSY-CRANKSHAFT

Note: 26 LC/26 LC

$34.99

$

Usually ships in 3-10 days

0

530 01 51-26

Husqvarna 530015126

KEY-FLYWHEEL

Note: 23 LCN/26 LC

$3.99

$

Usually ships in 3-10 days

0

530 01 57-88

Husqvarna 530015788

SPACER-BEARING

$0.99

$

Usually ships in 3-10 days

0

530 01 40-05

Husqvarna 530014005

Piston Rod

Note: 23 LCN

$

$

Not available

530 01 09-45

Husqvarna 530010945

ASSY-CRANKSHAFT

Note: 23 LCN

$43.99

$

Usually ships in 3-10 days

0

530 01 57-89

Husqvarna 530015789

RING-RETAINING (SHAFT)

$4.99

$

Usually ships in 3-10 days

0

530 01 57-87

Husqvarna 530015787

RING-RETAINING

$3.99

$

Usually ships in 3-10 days

0

530 03 21-02

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

530 01 40-16

Husqvarna 530014016

Crankcase Ass'y.

$

$

Not available
