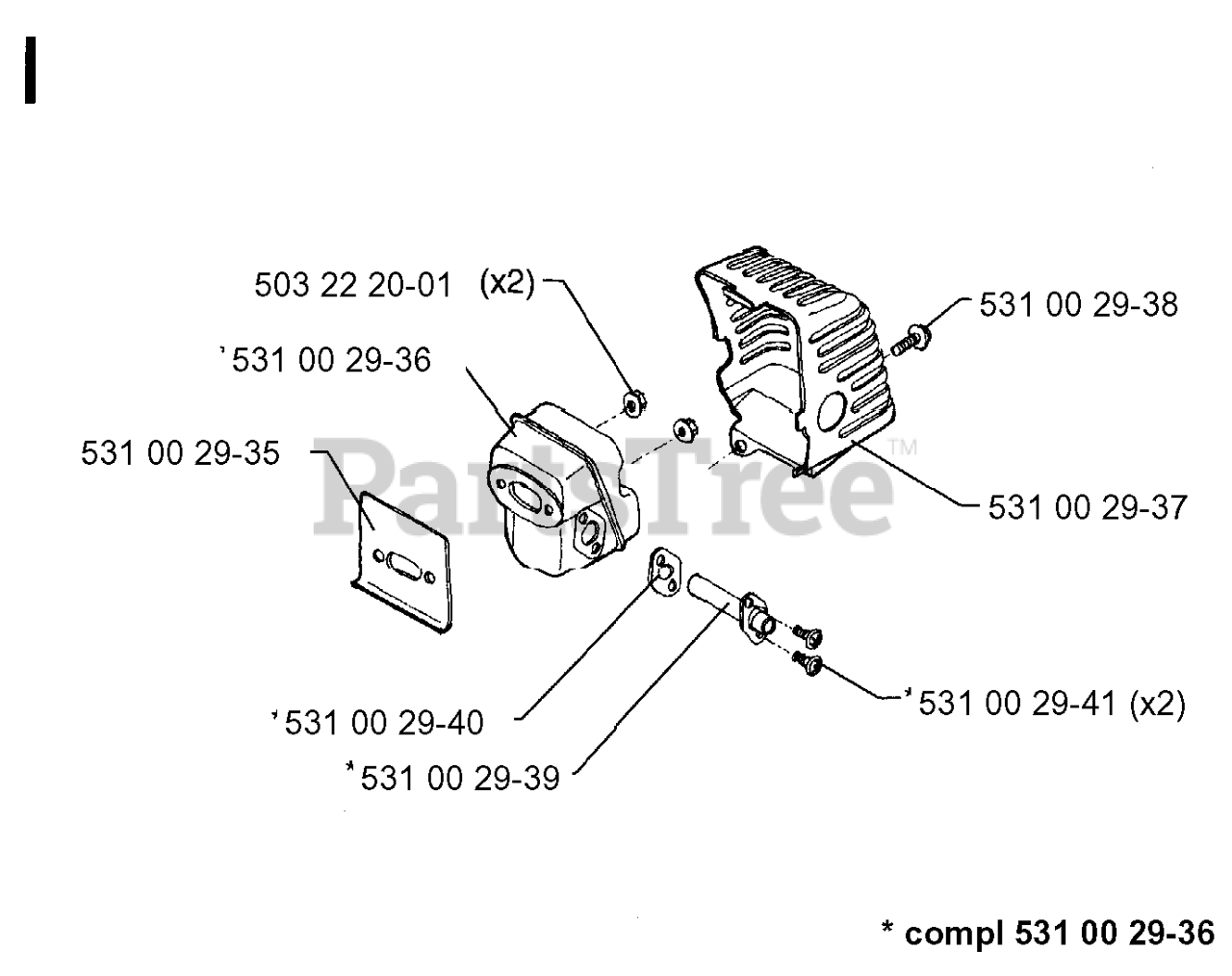

26 H - Husqvarna Hedge Trimmer (SN: 19930600001 - 19941000000) MUFFLER Parts Diagram

Hedge Trimmer

MUFFLER Parts Diagram

  • Title
531 00 29-39

Husqvarna 531002939

PIPE, TAIL

$

$

Not available

531 00 29-36

Husqvarna 531002936

MUFFLER ASS'Y

$

$

Not available

531 00 29-41

Husqvarna 531002941

SCREW & WASHER

$

$

Not available

531 00 29-38

Husqvarna 531002938

SCREW & WASHER

$

$

Not available

531 00 29-40

Husqvarna 531002940

GASKET, MUFFLER

$

$

Not available

531 00 29-35

Husqvarna 531002935

GASKET, MUFFLER

$

$

Not available

531 00 29-37

Husqvarna 531002937

COVER, MUFFLER

$

$

Not available

503 22 20-01

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available
