26-48BZ01 - Toro 48" Snow Blade (1988) SNOWBLADE-48 IN. (122CM) VEHICLE IDENTIFICATION NUMBER 26-48BZ01 Parts Diagram

48" Snow Blade

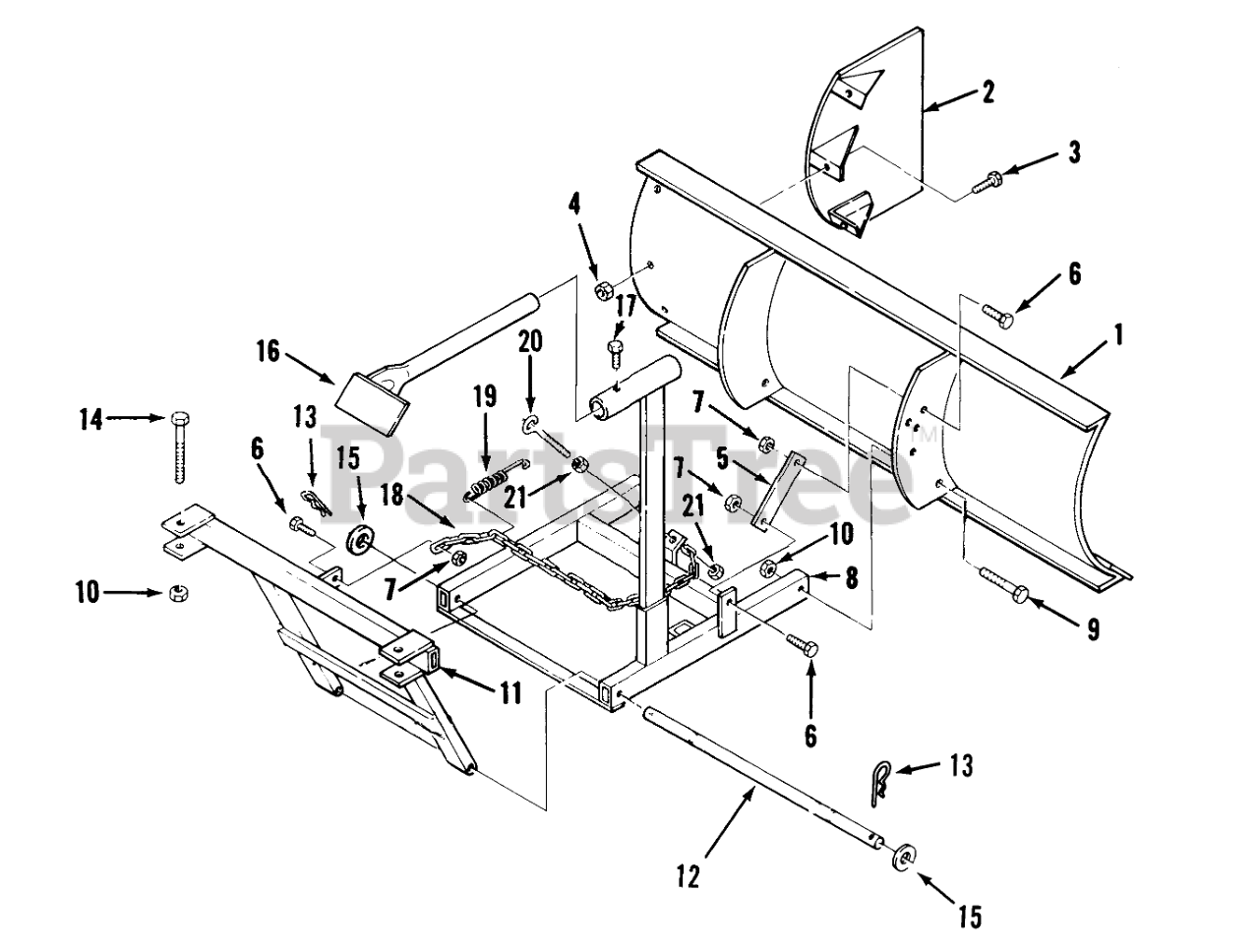

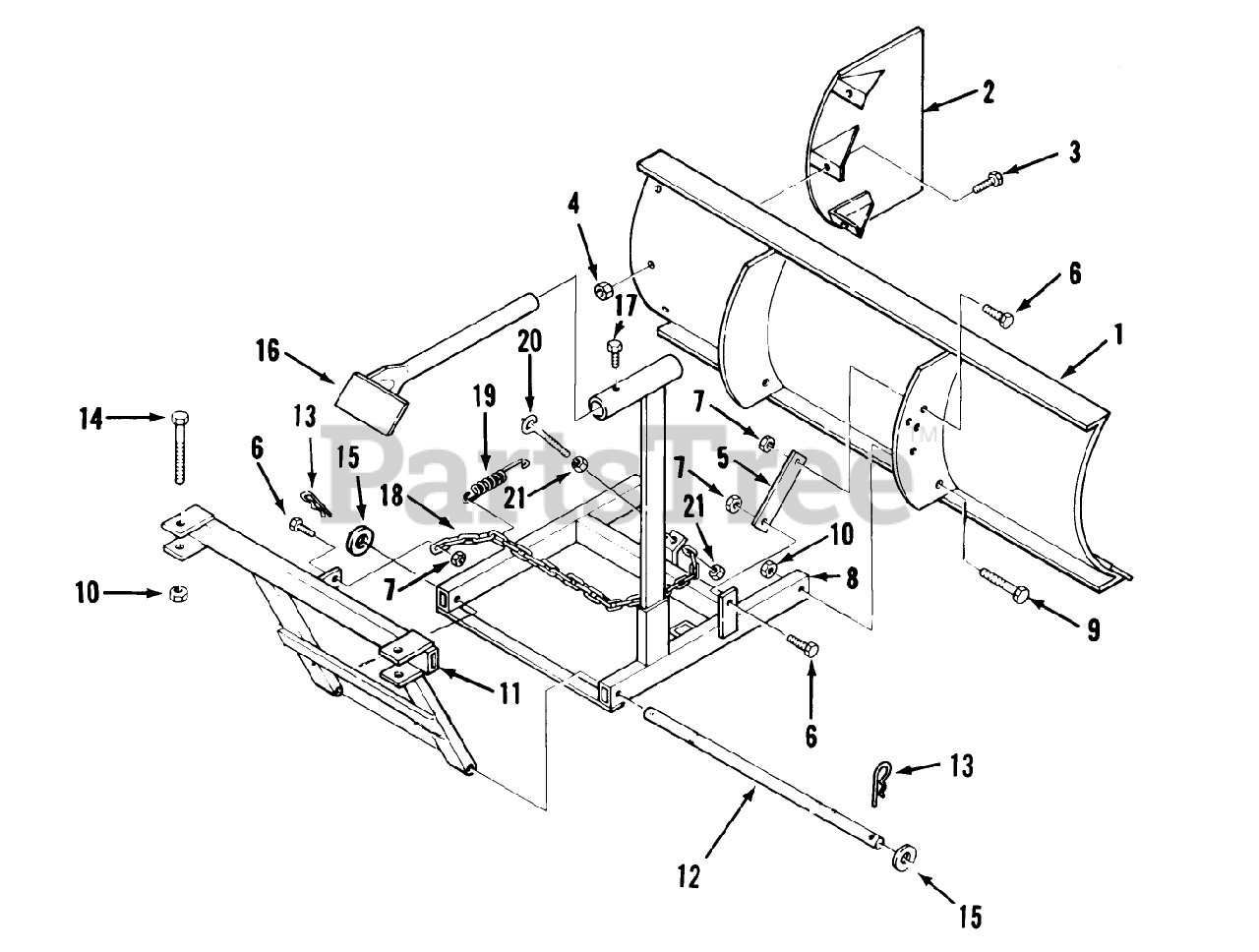

SNOWBLADE-48 IN. (122CM) VEHICLE IDENTIFICATION NUMBER 26-48BZ01 Parts Diagram

  • Title

1

Toro 90102

Blade

$

$

Not available

2

Toro 90107

End Plate

$

$

Not available

3

Toro B128

BOLT SCREW 10-32X1

$

$

Not available

4

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

5

Toro 90111

ADJUSTING STRAP

$

$

Not available

6

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8

Toro 114996

Front Frame

$

$

Not available

9

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 17

0

10

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

11

Toro 114634

ASS'Y-SNOW BLADE MTG

$

$

Not available

12

Toro 115758

Rod

$

$

Not available

13

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

14

Toro 908065

HEX HD CAP SCREW

$

$

Not available

15

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

16

Toro 114997

PEDAL

$

$

Not available

17

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

18

Toro 90113

CHAIN

$

$

Not available

19

Toro 90106

Spring
(Superseded to 4629)

$82.99

$

In Stock, only 2 left!

0

20

Toro 90110

Eye Bolt

$

$

Not available

21

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
