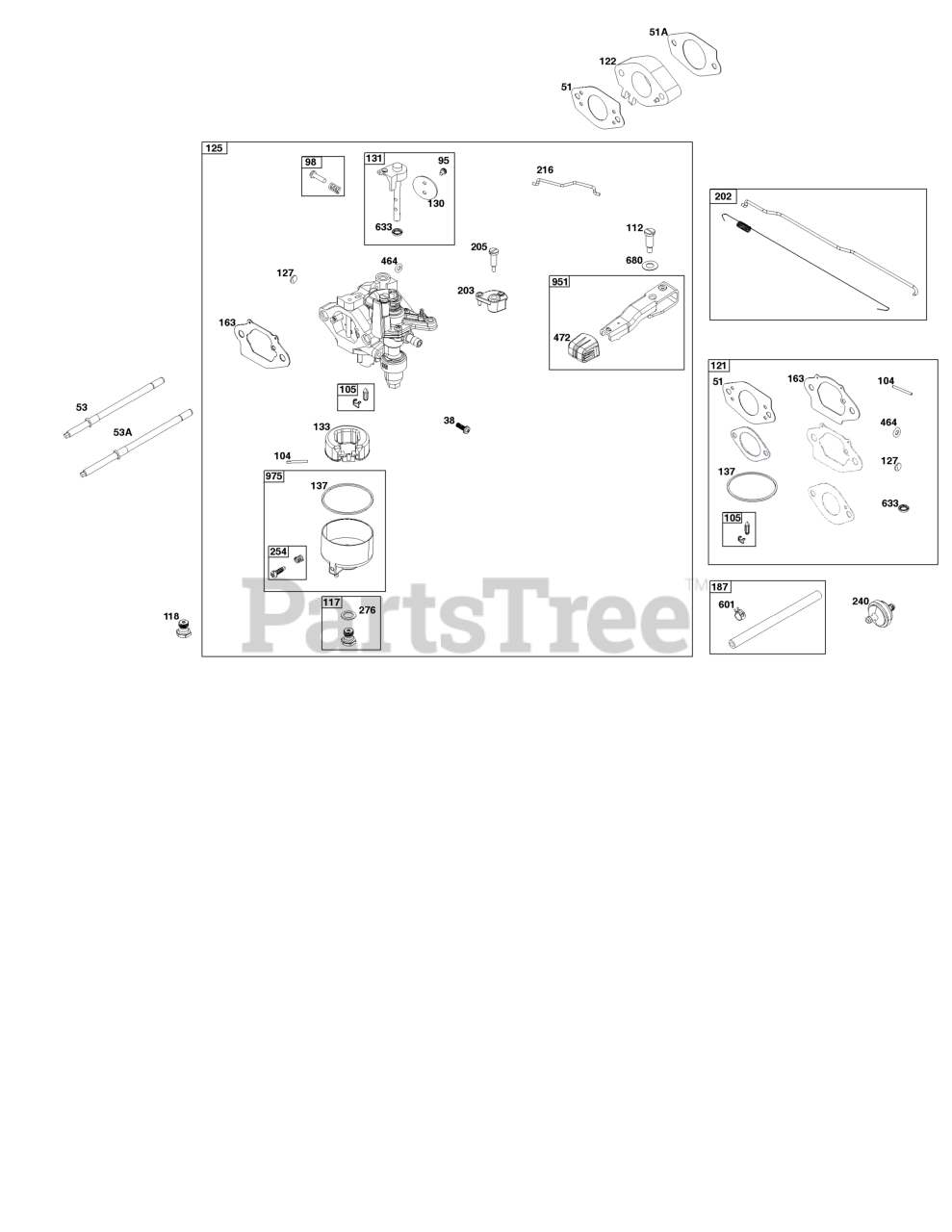

25V337-0019-F1 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

38

Briggs & Stratton 84004585

SCREW

Note: (Fuel Shut Off Valve)

$3.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 84004315

STUD

Note: (Carburetor) (Short)

$7.49

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 84004311

STUD

Note: (Carburetor) (Long)

$7.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 797161

SCREW

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 597533

PIN, Float Hinge

$3.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 84004840

VALVE, Float Needle

$17.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 84003640

SCREW

Note: (Choke Lever)

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 84004827

JET, Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 84004163

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 84004975

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$77.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 84004306

SPACER, Carburetor

$12.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 84004367

CARBURETOR

$128.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 84004841

PLUG, Welch

$3.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 84004397

VALVE, Throttle

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 84004396

SEAL, Choke/Throttle Shaft

$3.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 84004822

FLOAT, Carburetor

$15.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 84004205

GASKET, Float Bowl

$23.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 84004165

GASKET, Air Cleaner

$5.99

$

In Stock, only 3 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

202

LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

203

Briggs & Stratton 597045

CRANK, Bell

$10.99

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 84005081

SCREW

Note: (Bell Crank)

$4.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 84005080

LINK, Choke

$7.49

$

In Stock, only 2 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

254

Briggs & Stratton 595322

DRAIN, Carburetor Bowl

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797632

WASHER, Sealing

$7.99

$

In Stock, Qty 13

0

464

Briggs & Stratton 595320

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$5.99

$

Usually ships in 2-12 days

0

472

Briggs & Stratton 84002963

KNOB, Choke Shaft

$5.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 84004398

SEAL, Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

680

Briggs & Stratton 84005074

WASHER

Note: (Choke Lever)

$3.49

$

Usually ships in 2-12 days

0

951

Briggs & Stratton 84004369

LEVER, Choke

$6.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 84004204

BOWL, Float

$11.99

$

Usually ships in 2-12 days
