25V336-0018-F1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

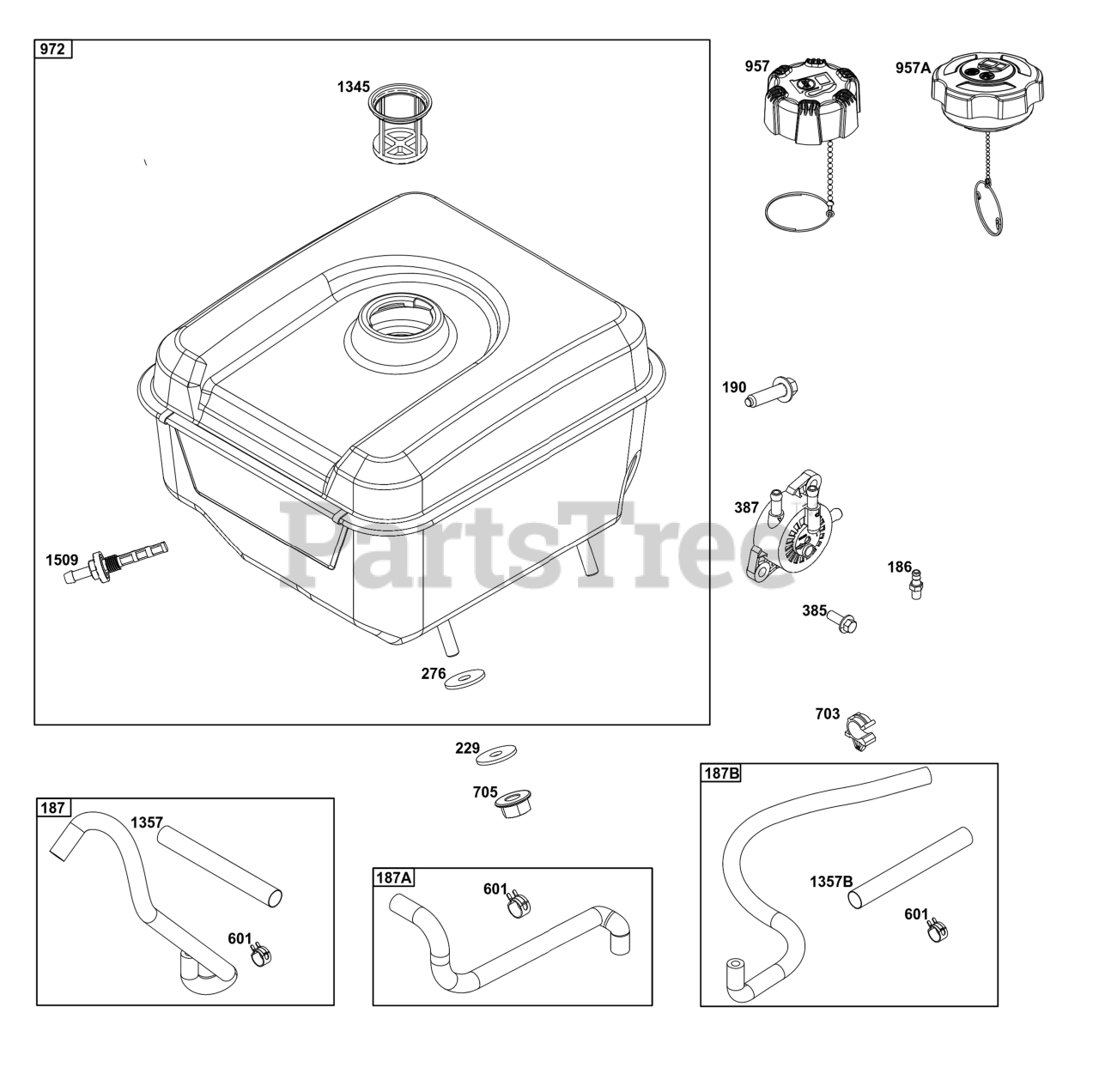

Fuel Supply Group Parts Diagram

  • Title

186

Briggs & Stratton 691764

CONNECTOR, Hose

$14.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 84004251

LINE, Fuel

$48.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 84004193

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 84004194

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 84004226

SCREW

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 84004227

WASHER

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 84004253

WASHER, Sealing

$3.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 590703

SCREW

Note: (Fuel Pump)

$3.49

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

703

Briggs & Stratton 84004255

CLIP

$6.49

$

Usually ships in 2-12 days

0

705

Briggs & Stratton 707919

NUT

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 596765

CAP, Fuel Tank

$31.99

$

In Stock, Qty 12

0

972

Briggs & Stratton 84004212

TANK, Fuel

$146.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 1 left!

0

1357

Briggs & Stratton 590688

SLEEVE, Fuel Line

$8.99

$

In Stock, only 1 left!

0

1357B

Briggs & Stratton 590688

SLEEVE, Fuel Line

$8.99

$

In Stock, only 1 left!

0

1509

Briggs & Stratton 797346

OUTLET, Tank

$12.99

$

In Stock, Qty 6

0
