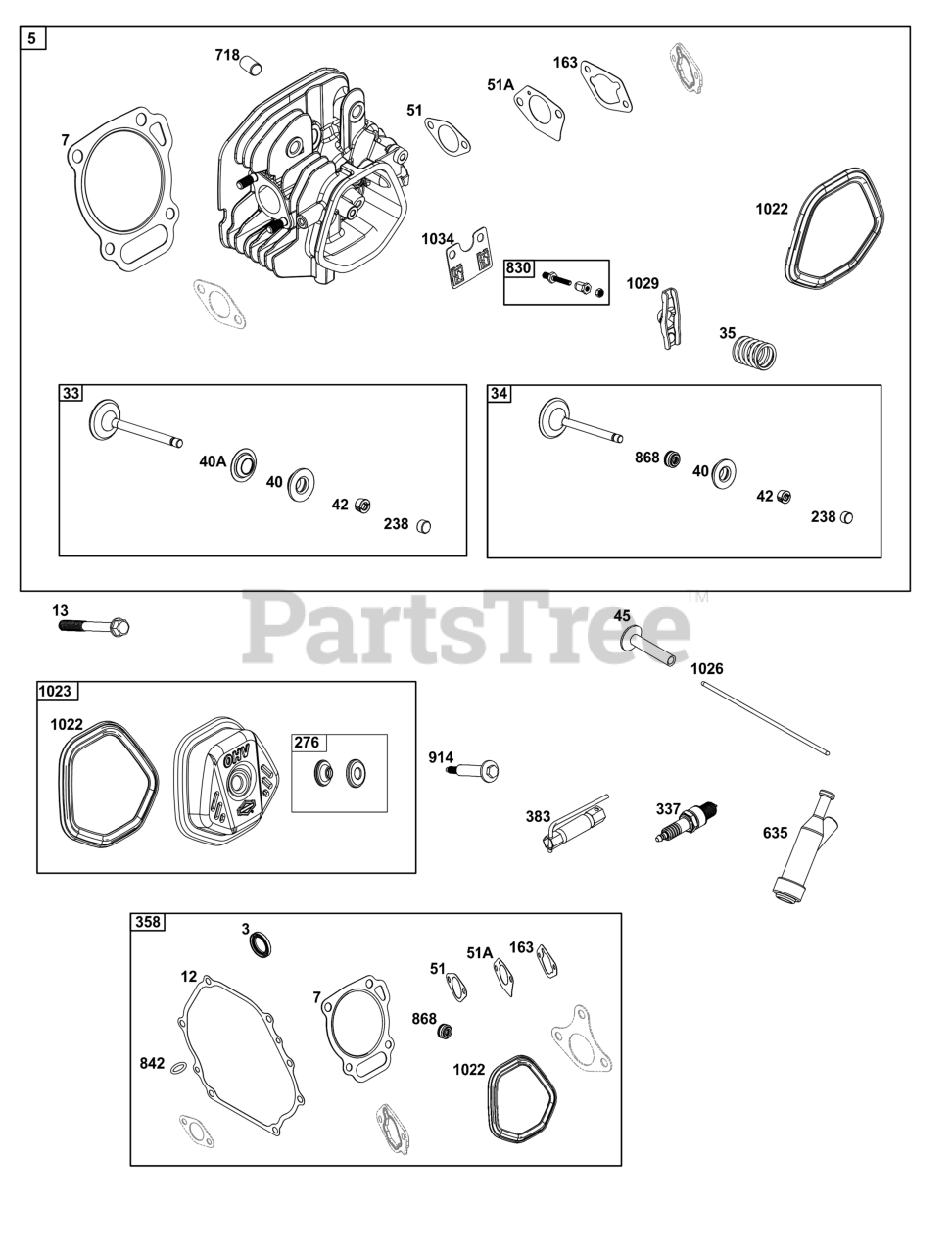

25U135-0002-G1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 799533

HEAD, Cylinder

$192.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 799534

GASKET, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 797791

SCREW

$3.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 594257

VALVE, Exhaust

$26.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 594256

VALVE, Intake

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 797780

SPRING, Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 797781

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

40A

Briggs & Stratton 797782

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 797783

KEEPER, Valve

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 797786

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Carburetor Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Carburetor Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 797784

CAP, Valve

$9.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797847

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, Qty 5

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 797658

BOOT, Spark Plug

$12.99

$

Usually ships in 2-12 days

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 797854

SEAL, Valve

$12.99

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 797848

SCREW

Note: (Rocker Cover)

$5.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 797846

GASKET, Rocker Cover

$9.99

$

In Stock, only 1 left!

0

1023

Briggs & Stratton 799778

COVER, Rocker

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 799966

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 591087

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 797787

GUIDE, Push Rod

$14.99

$

Usually ships in 2-12 days

0
