25U135-0002-G1 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

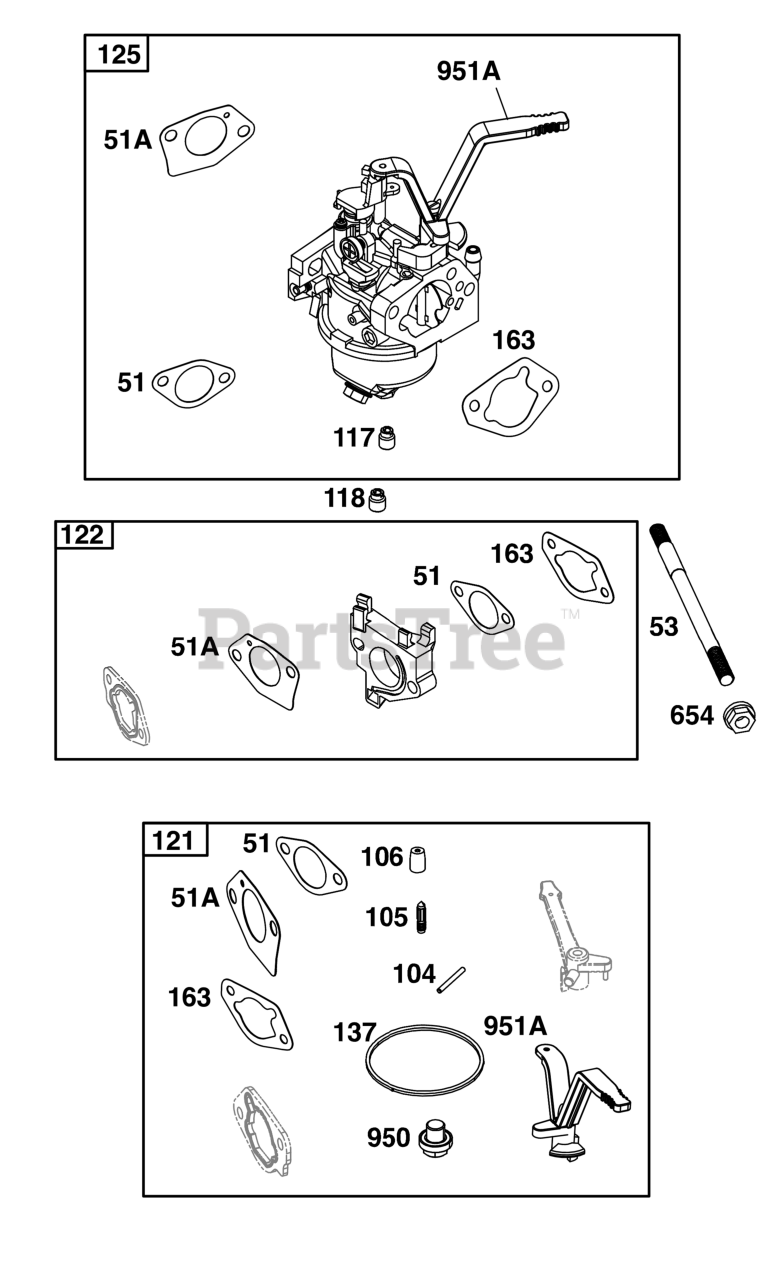

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 797845

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 797755

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

53

Briggs & Stratton 797757

STUD

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104

PIN, Float Hinge

Note: (Not Available Individually)

$

$

Not available

105

VALVE, Float Needle

Note: (Not Available Individually)

$

$

Not available

106

SEAT, Inlet

Note: (Not Available Individually)

$

$

Not available

117

Briggs & Stratton 592928

JET, Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 596388

JET, Main

Note: (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594261

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$17.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 799961

SPACER, Carburetor

$13.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 595855

CARBURETOR

$120.99

$

In Stock, only 1 left!

0

137

GASKET, Float Bowl

Note: (Not Available Individually)

$

$

Not available

163

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 7

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

950

SCREW, Float Bowl

Note: (Not Available Individually)

$

$

Not available

951A

Briggs & Stratton 797759

LEVER, Choke

$11.99

$

In Stock, only 1 left!

0
