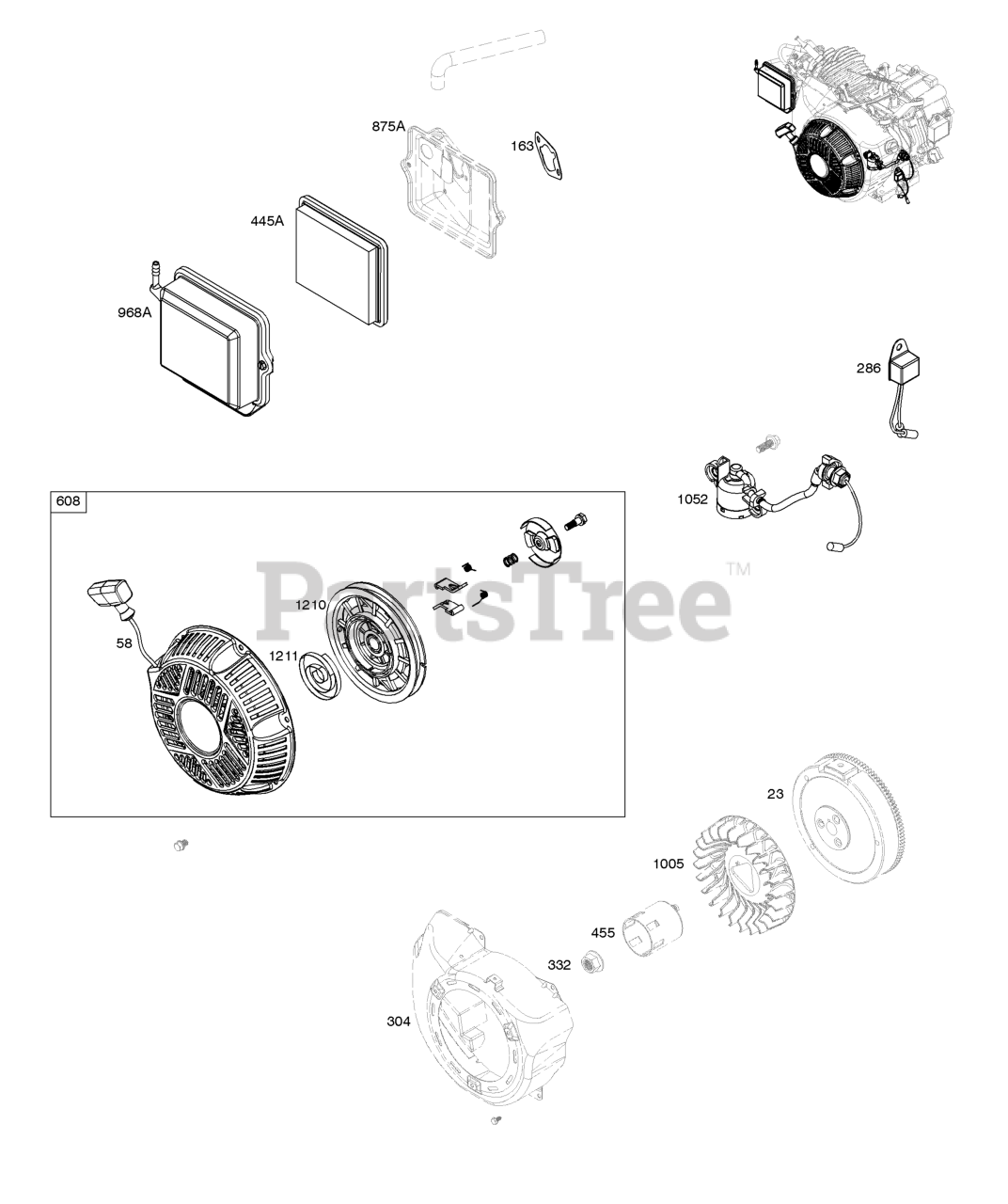

25U135-0001-G1 - Briggs & Stratton Horizontal Engine Air Cleaner, Oil Sensing, Blower Housing, Flywheel, Rewind Starter Parts Diagram

Horizontal Engine

Air Cleaner, Oil Sensing, Blower Housing, Flywheel, Rewind Starter Parts Diagram

  • Title

23

Flywheel

Note: (Currently Not Available)

$

$

Not available

58

Briggs & Stratton 691921

Rope-Starter

Note: (Cut To Required Length)

$8.49

$

In Stock, only 1 left!

0

163

Gasket-Air Cleaner

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

286

Briggs & Stratton 797772

MODULE-OIL SENSOR
(Superseded to 84004388)

$56.99

$

Usually ships in 2-12 days

0

304

Housing-Blower

Note: (Currently Not Available)

$

$

Not available

332

Nut

Note: (Flywheel) (Currently Not Available)

$

$

Not available

445A

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

455

Cup-Flywheel

Note: (Currently Not Available)

$

$

Not available

608

Briggs & Stratton 594263

Starter-Rewind

$58.99

$

In Stock, only 1 left!

0

875A

Base-Air Cleaner

Note: (Currently Not Available)

$

$

Not available

968A

Cover-Air Cleaner

Note: (Currently Not Available)

$

$

Not available

1005

Fan-Flywheel

Note: (Currently Not Available)

$

$

Not available

1052

Briggs & Stratton 797771

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

1210

Pulley/Spring Assembly

Note: (Pulley) (Not Available Individually) (See Reference 608 For Replacement)

$

$

Not available

1211

Pulley/Spring Assembly

Note: (Spring) (Not Available Individually) (See Reference 608 For Replacement)

$

$

Not available
