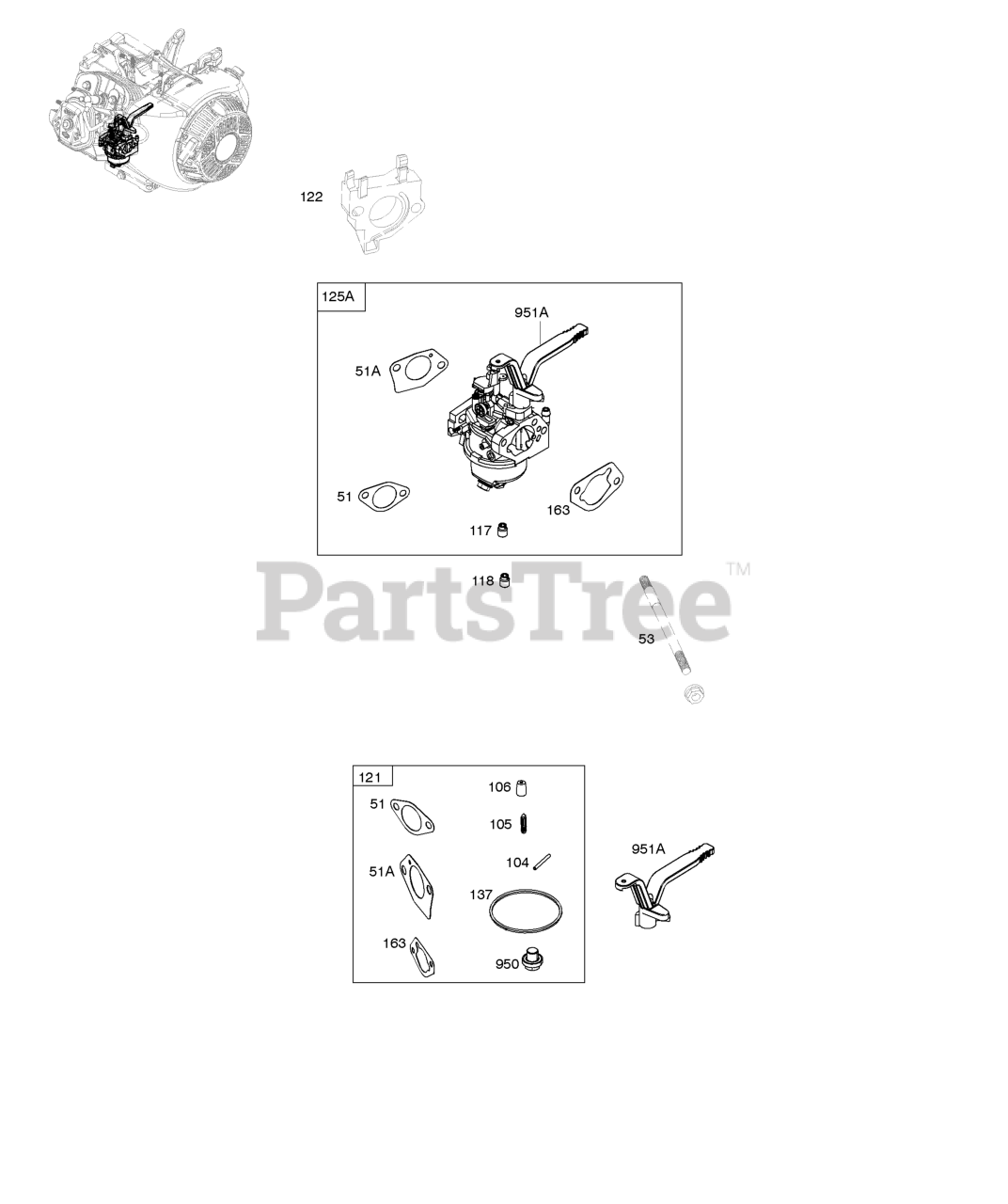

25U032-0001-G1 - Briggs & Stratton Horizontal Engine Carburetor Parts Diagram

Horizontal Engine

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton XXXXX

Gasket-Intake

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

51A

Gasket-Intake

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

53

Stud

Note: (Carburetor) (Currently Not Available)

$

$

Not available

104

Pin-Float Hinge

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

105

Valve-Float Needle

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

106

Seat-Inlet

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

117

Briggs & Stratton 592928

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 593503

JET, Main

Note: (High Altitude)

$17.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 594261

Kit-Carburetor Overhaul

$17.99

$

Usually ships in 2-12 days

0

122

Spacer-Carburetor

Note: (Currently Not Available)

$

$

Not available

125A

Briggs & Stratton 595855

Carburetor

$120.99

$

In Stock, only 3 left!

0

137

Gasket-Float Bowl

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

163

Gasket-Air Cleaner

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

950

Screw-Float Bowl

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

951A

Briggs & Stratton 797759

Lever-Choke

$11.99

$

In Stock, only 1 left!

0
