25U032-0001-G1 - Briggs & Stratton Horizontal Engine Camshaft, Crankcase Cover, Crankshaft, Cylinder, Piston/Rings/Connecting Rod, Warning Label Parts Diagram

Horizontal Engine

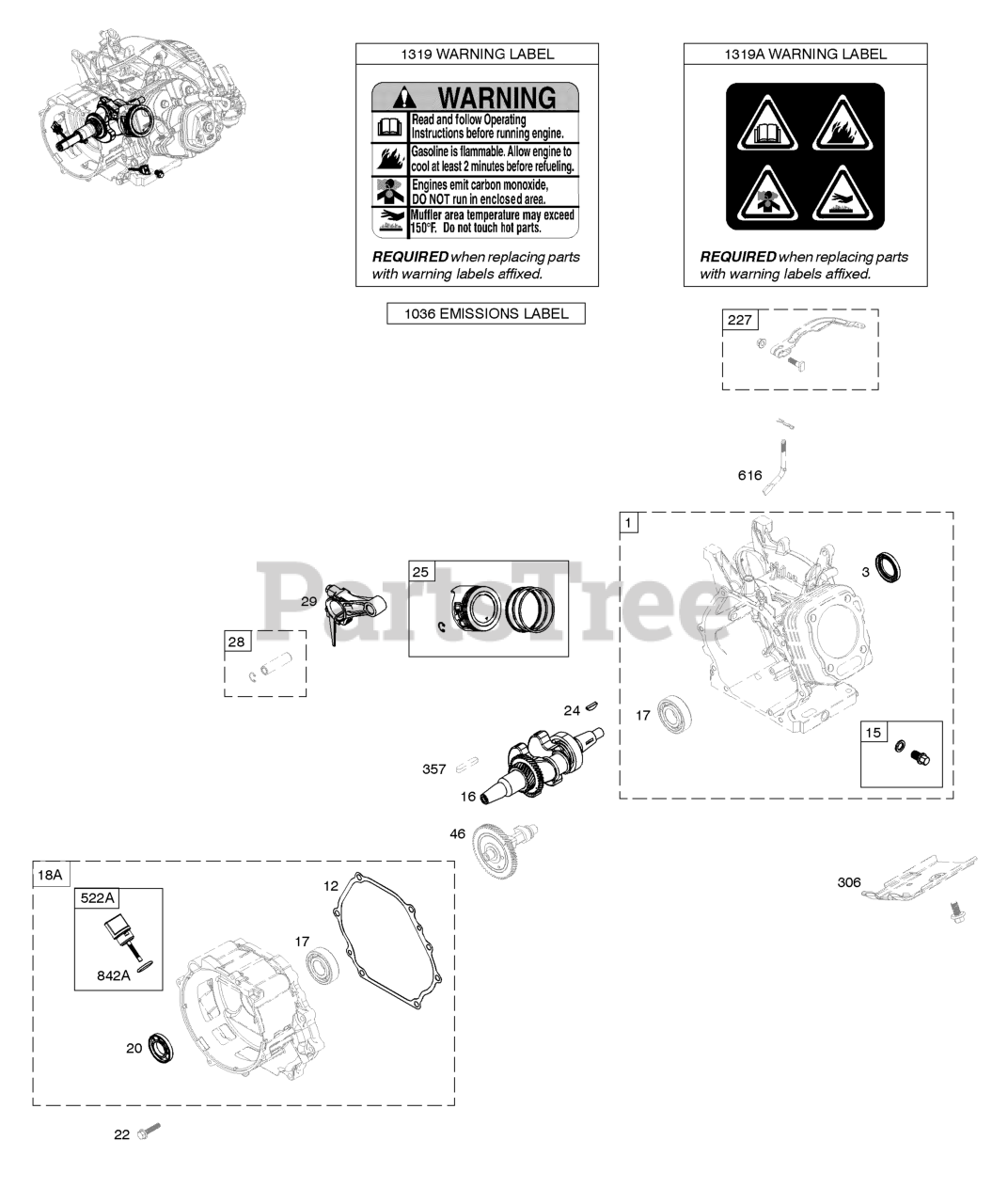

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Piston/Rings/Connecting Rod, Warning Label Parts Diagram

  • Title

1

Cylinder Assembly

Note: (Currently Not Available)

$

$

Not available

3

Seal-Oil

Note: (Magneto Side) (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

12

Gasket-Crankcase

Note: (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

15

Briggs & Stratton 797793

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 797844

Crankshaft

$222.99

$

Usually ships in 2-12 days

0

17

Bearing-Ball

Note: (Currently Not Available)

$

$

Not available

18A

Cover-Crankcase

Note: (Currently Not Available)

$

$

Not available

20

Seal-Oil

Note: (PTO Side) (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

22

Screw

Note: (Crankcase Cover/Sump) (Currently Not Available)

$

$

Not available

24

Briggs & Stratton 797812

Key-Flywheel
(Superseded to 797286)

$5.49

$

In Stock, only 2 left!

0

25

Briggs & Stratton 799535

Piston Assembly

Note: (Standard)

$119.99

$

Usually ships in 2-12 days

0

28

Pin-Piston

Note: (Currently Not Available)

$

$

Not available

29

Briggs & Stratton 797804

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

46

Camshaft

Note: (Currently Not Available)

$

$

Not available

227

Lever-Governor Control

Note: (Currently Not Available)

$

$

Not available

306

Shield-Cylinder

Note: (Currently Not Available)

$

$

Not available

357

Key-Drive Pulley

Note: (Currently Not Available)

$

$

Not available

522A

Briggs & Stratton 797762

Plug-Dipstick/Fill

$9.49

$

In Stock, only 1 left!

0

616

Crank-Governor

Note: (Currently Not Available)

$

$

Not available

842A

Seal-O Ring

Note: (Dipstick Tube) (Not Available Individually) (See Reference 358 & 522A For Replacement)

$

$

Not available

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0
