25T237-0449-H5 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

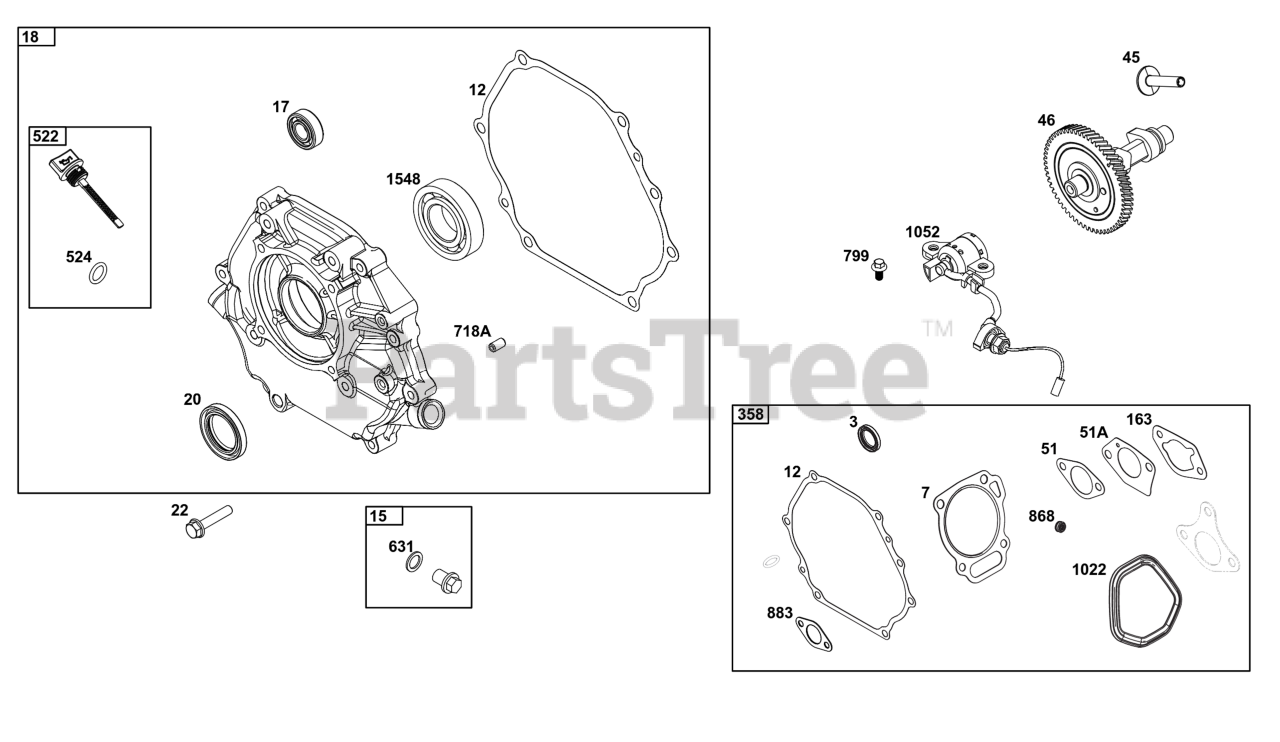

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 797789

GASKET, Crankcase

$31.99

$

Usually ships in 2-12 days

0

15

PLUG, Oil Drain

Note: (Part information located in Cylinder Group.)

$

$

Not available

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 590962

COVER, Crankcase

$158.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 797766

SEAL, Oil

Note: (PTO Side)

$10.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 797795

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

CAMSHAFT

Note: (Part information located in Crankshaft Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

522

Briggs & Stratton 84004387

PLUG, DIPSTICK/FILL

$7.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 84004385

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

Usually ships in 2-12 days

0

631

WASHER

Note: (Part information located in Cylinder Group.)

$

$

Not available

718A

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

799

Briggs & Stratton 798975

SCREW

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

Briggs & Stratton 797771

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 797765

BEARING, Ball

Note: (Crankcase Cover/Sump)

$31.99

$

Usually ships in 2-12 days

0
