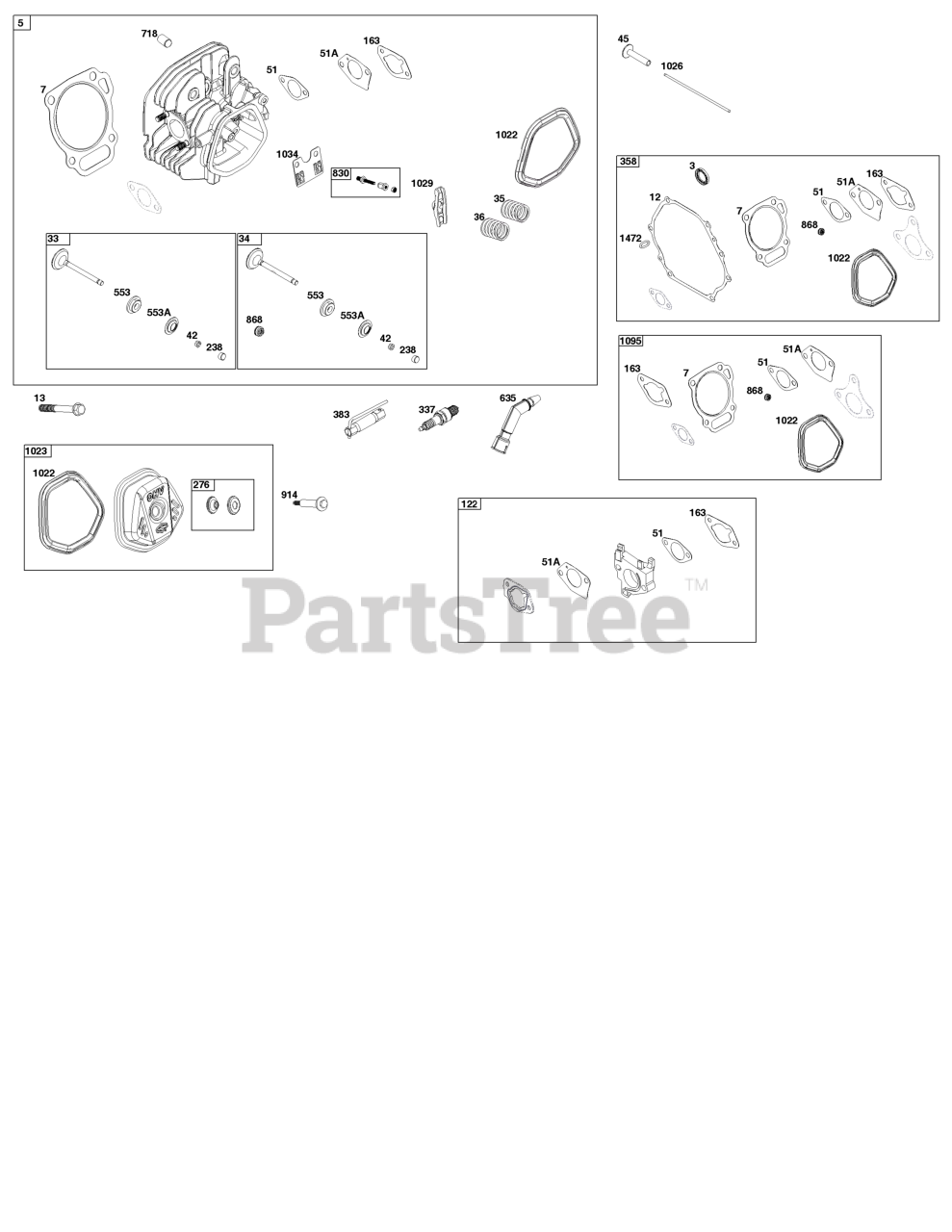

25T235-0324-G1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 799533

Head-Cylinder

$192.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 799534

Gasket-Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 797791

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 797778

Valve-Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 797777

Valve-Intake

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 797780

Spring-Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 797780

Spring-Valve

Note: (Exhaust)

$6.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 797783

Keeper-Valve

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 797786

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 797845

Gasket-Intake

$4.49

$

In Stock, Qty 11

0

51A

Briggs & Stratton 797755

Gasket-Intake

$4.49

$

In Stock, only 4 left!

0

122

SPACER, Carburetor

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

238

Briggs & Stratton 797784

Cap-Valve

$9.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 590987

Washer-Sealing

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797847

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, only 4 left!

0

358

GASKET SET, Engine

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

383

WRENCH, Spark Plug

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

553

Briggs & Stratton 797781

Retainer-Valve

$6.49

$

Usually ships in 2-12 days

0

553A

Briggs & Stratton 797782

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 797685

BOOT, Spark Plug

$29.99

$

Usually ships in 2-12 days

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: #N/A

$

$

Not available

868

Briggs & Stratton 797854

SEAL, Valve

$12.99

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 797848

SCREW

Note: (Rocker Cover)

$5.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 797846

GASKET, Rocker Cover

$9.99

$

In Stock, Qty 5

0

1023

Briggs & Stratton 799778

COVER, Rocker

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 799966

Rod-Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 591087

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 797787

Guide-Push Rod

$14.99

$

Usually ships in 2-12 days

0

1095

GASKET SET, Valve

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available
