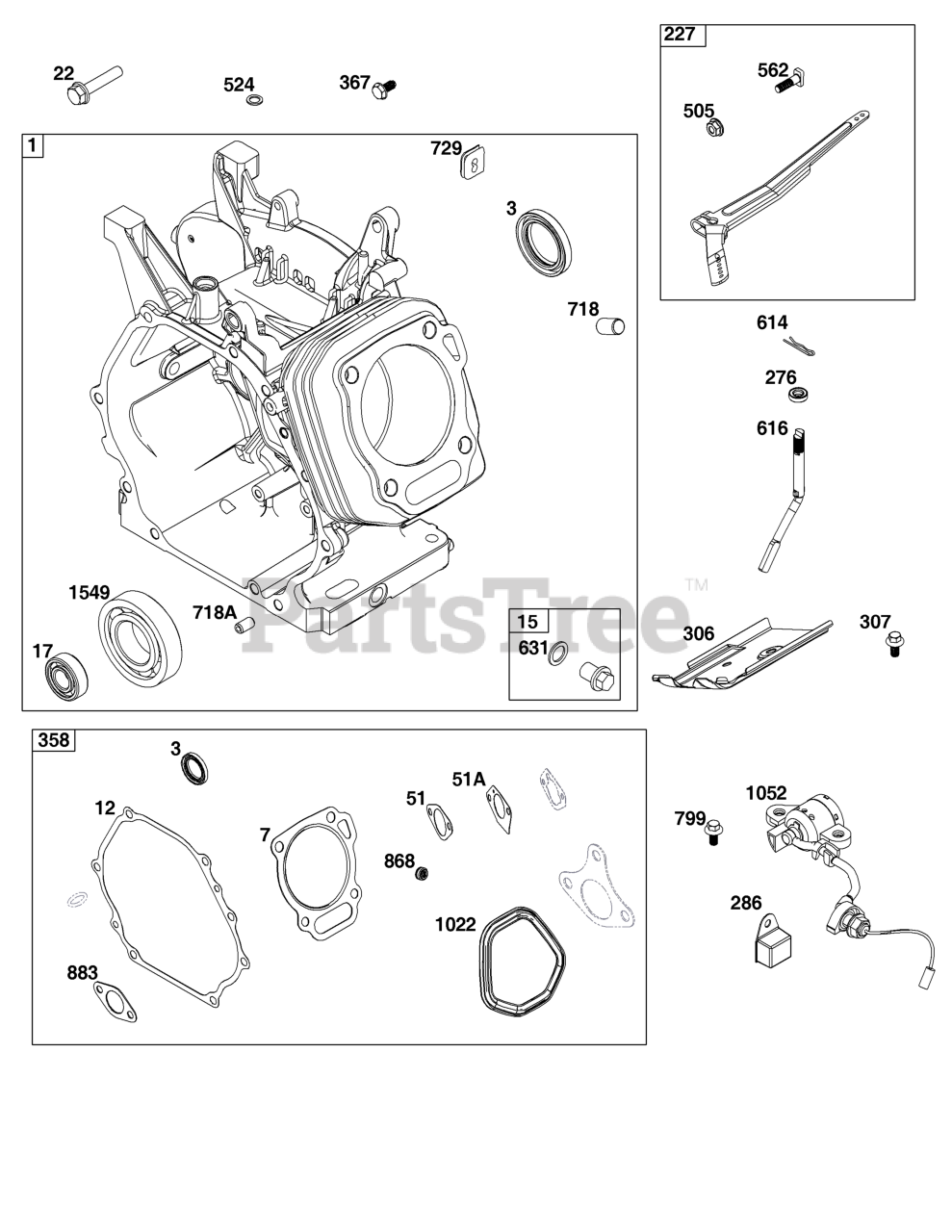

25T232-0184-G1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 595838

CYLINDER ASSEMBLY

$358.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 797766

Seal-Oil

Note: (Magneto Side)

$10.99

$

In Stock, only 1 left!

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 797793

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 797764

BEARING, Ball

Note: (Cylinder)

$13.99

$

Usually ships in 2-12 days

0

22

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

227

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

276

Briggs & Stratton 797806

Washer-Sealing

$6.99

$

Usually ships in 2-12 days

0

286

MODULE, Oil Sensor

Note: (Part information located in Controls Group.)

$

$

Not available

306

Briggs & Stratton 797749

Shield-Cylinder

$14.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 798618

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 799952

Gasket Set-Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$55.99

$

Usually ships in 2-12 days

0

367

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

505

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

562

BOLT

Note: (Part information located in Controls Group.)

$

$

Not available

614

Briggs & Stratton 797229

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 797805

Crank-Governor

$12.99

$

In Stock, only 1 left!

0

631

Briggs & Stratton 797794

WASHER

Note: (Oil Drain Plug)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 797792

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 797761

PIN, Locating

$4.99

$

Usually ships in 2-12 days

0

729

CLIP, Wire

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

799

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: #N/A

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

SENSOR, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1549

BEARING, Ball

Note: (Part information located in Crankshaft Group.)

$

$

Not available
