25T162-0001-01 - Briggs & Stratton Horizontal Engine Cylinder, Crankcase Cover, Piston & Rings Parts Diagram

Horizontal Engine

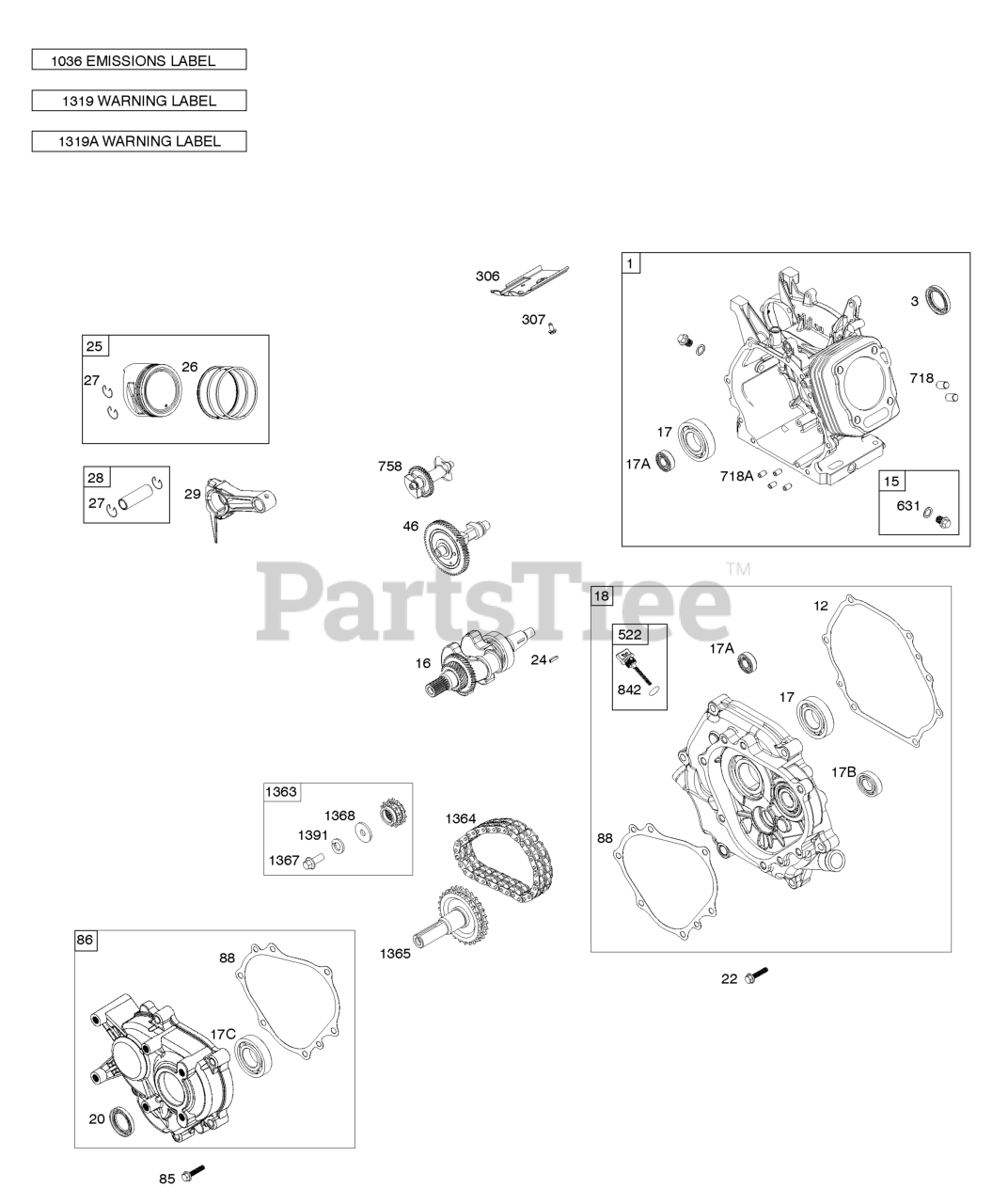

Cylinder, Crankcase Cover, Piston & Rings Parts Diagram

  • Title

1

Briggs & Stratton 595578

Cylinder Assembly

$347.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 591793

SEAL, Oil

Note: (Magneto Side)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 797789

Gasket-Crankcase

$31.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 595580

Plug-Oil Drain

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 595581

Crankshaft

$195.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 797765

Bearing-Ball

Note: (Crankshaft)

$31.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 595582

Bearing-Ball

Note: (Gear Reduction Sprocket)

$8.99

$

Usually ships in 2-12 days

0

17C

Briggs & Stratton 591792

BEARING, Ball

Note: (Gear Reduction Sprocket)

$16.99

$

Usually ships in 2-12 days

0

17B

Briggs & Stratton 797764

BEARING, Ball

Note: (Counterweight)

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 595583

Cover-Crankcase

$179.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 797766

Seal-Oil

Note: (PTO Side)

$10.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 595584

Screw

Note: (Crankcase Cover/Sump)

$4.49

$

In Stock, only 2 left!

0

24

Briggs & Stratton 797286

KEY, Flywheel

$5.49

$

In Stock, only 2 left!

0

25

Briggs & Stratton 799536

Piston Assembly

Note: (.010" Oversize)

$114.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 799537

Piston Assembly

Note: (.020" Oversize)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 799535

Piston Assembly

$119.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 799540

Ring Set

Note: (.020" Oversize)

$48.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 799538

Ring Set

$43.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 799539

Ring Set

Note: (.010" Oversize)

$46.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 797803

Lock-Piston Pin

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 797799

Pin-Piston

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 797804

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 595683

Camshaft

$69.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 595585

Screw

Note: (Gear Cover)

$4.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 595586

Cover-Gear

$119.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 595587

Gasket-Gear Cover/Housing

$14.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 595595

Shield-Cylinder

$14.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 798976

SCREW

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 799941

Plug-Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

631

Briggs & Stratton 797794

WASHER

Note: (Oil Drain Plug)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 797792

PIN, Locating

Note: (Cylinder Head)

$5.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 797761

PIN, Locating

Note: (Crankcase Cover)

$4.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 797852

Counterweight

$111.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 797327

SEAL, O-Ring

Note: (Dipstick Tube)

$7.49

$

Usually ships in 2-12 days

0

1036

Label-Emissions

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0

1363

Briggs & Stratton 595607

Sprocket-Gear Reduction

$21.99

$

Usually ships in 2-12 days

0

1364

Briggs & Stratton 595608

Chain-Gear Reduction

$38.99

$

Usually ships in 2-12 days

0

1365

Briggs & Stratton 595609

Shaft-Output Gear Reduction

$76.99

$

Usually ships in 2-12 days

0

1367

Briggs & Stratton 595610

SCREW

Note: (Gear Reduction Sprocket)

$3.99

$

Usually ships in 2-12 days

0

1368

Briggs & Stratton 595611

WASHER

Note: (Gear Reduction Sprocket)

$4.49

$

Usually ships in 2-12 days

0

1391

Briggs & Stratton 595612

Washer

Note: (Drive Gear)

$3.49

$

Usually ships in 2-12 days

0
