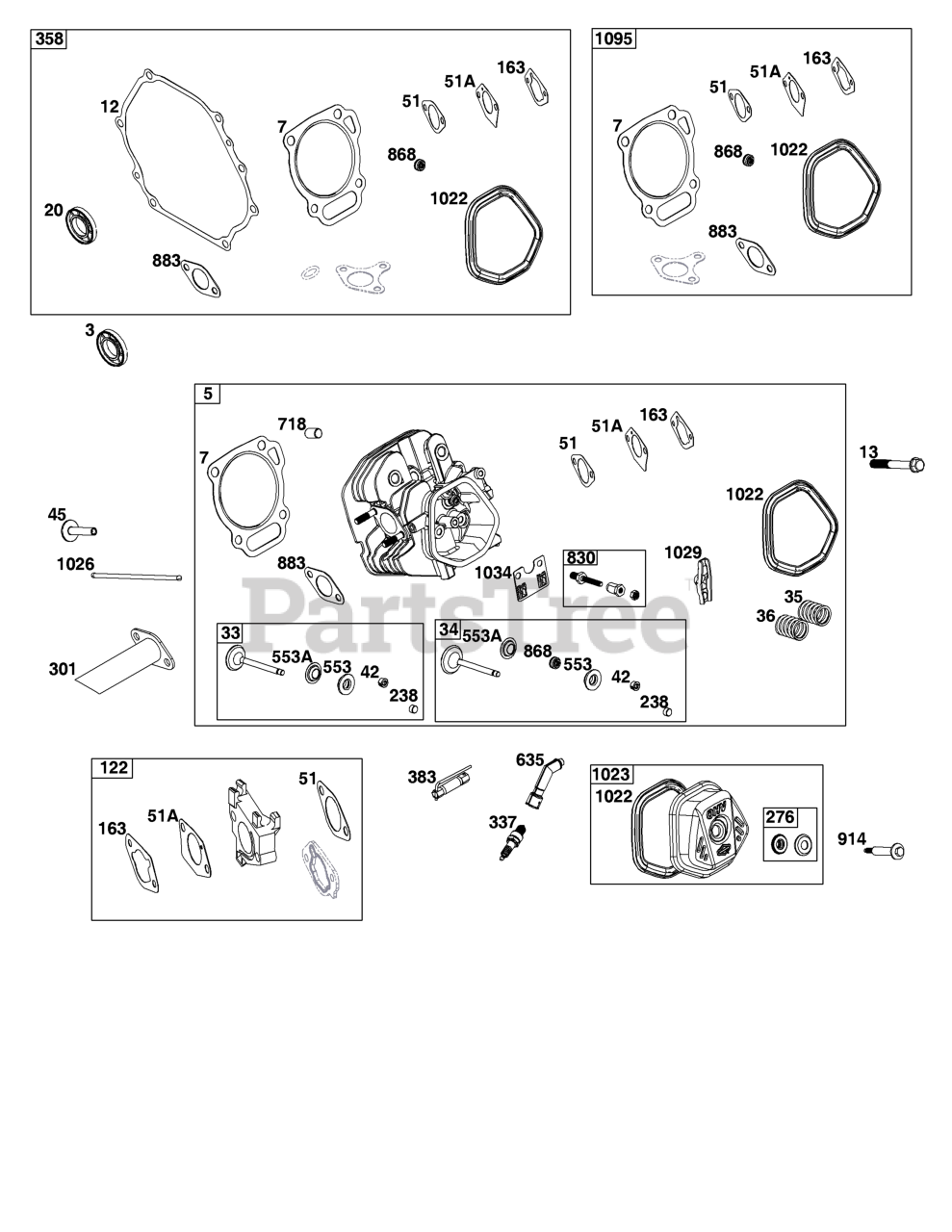

25T132-0004-01 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 595796

HEAD, Cylinder

$158.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 799534

GASKET, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 595579

SCREW

Note: (Cylinder Head)

$6.49

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 797778

VALVE, Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 797777

VALVE, Intake

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 797780

SPRING, Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 797780

SPRING, Valve

Note: (Exhaust)

$6.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 797783

KEEPER, Valve

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 797786

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 797845

GASKET, Intake

$4.49

$

In Stock, Qty 11

0

51A

Briggs & Stratton 797755

GASKET, Intake

$4.49

$

In Stock, only 4 left!

0

122

SPACER, Carburetor

Note: (Part information located in Carburetor Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 797784

CAP, Valve

$9.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 590987

WASHER, Sealing

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 595794

WASHER, Sealing

$4.99

$

Usually ships in 2-12 days

0

301

Briggs & Stratton 84003019

PIPE, Exhaust

$30.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, only 4 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

553

Briggs & Stratton 797781

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

553A

Briggs & Stratton 797782

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 797658

BOOT, Spark Plug

$12.99

$

Usually ships in 2-12 days

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 797854

SEAL, Valve

$12.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

914

Briggs & Stratton 595605

SCREW

Note: (Rocker Cover)

$6.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 797846

GASKET, Rocker Cover

$9.99

$

In Stock, Qty 5

0

1023

Briggs & Stratton 595629

COVER, Rocker

$33.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 799966

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 591087

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 797787

GUIDE, Push Rod

$14.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 799953

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$34.99

$

Usually ships in 2-12 days

0
