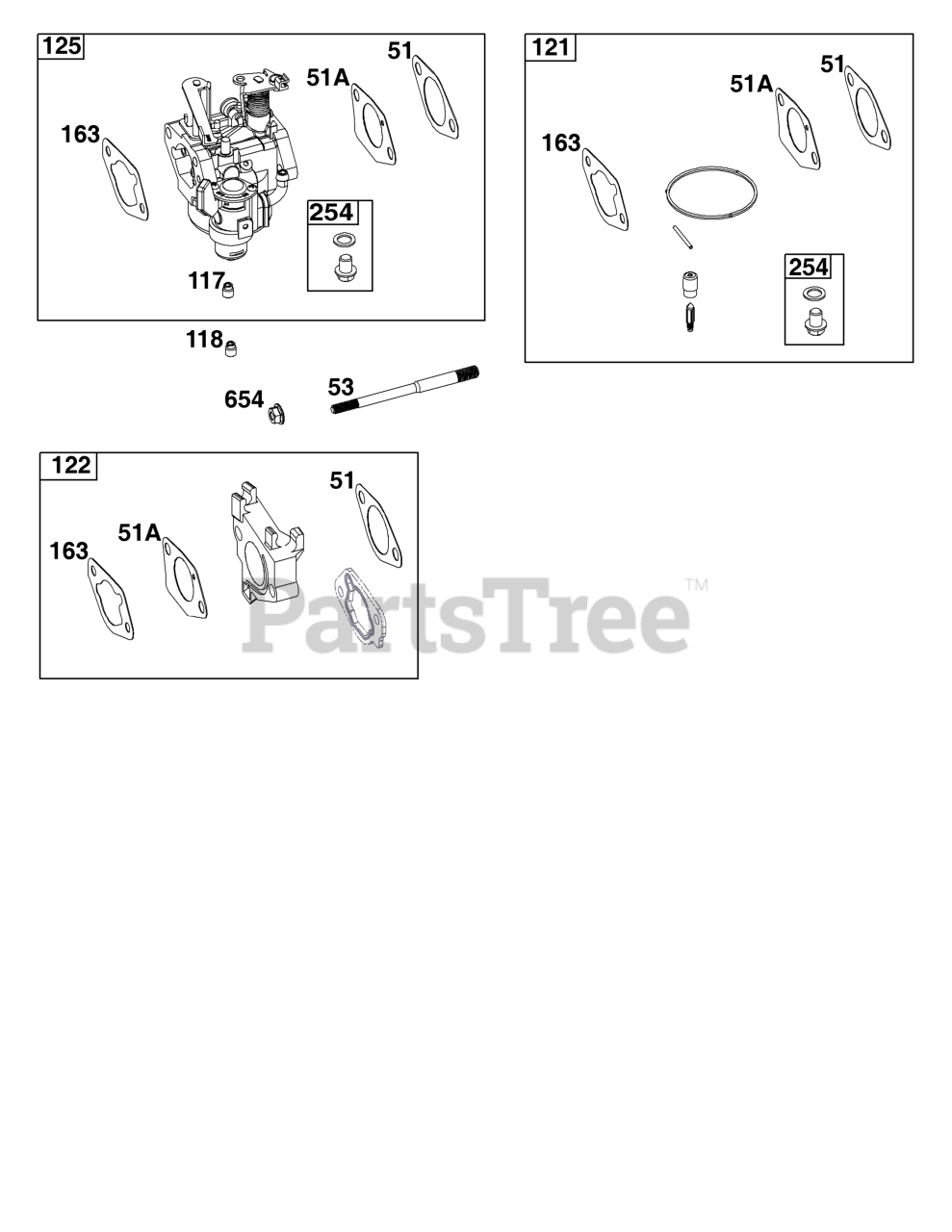

25T132-0004-01 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 595680

STUD

Note: (Carburetor)

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 595588

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 593675

JET, Main

Note: (High Altitude)

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 595797

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$32.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 799961

SPACER, Carburetor

$13.99

$

In Stock, Qty 6

0

125

Briggs & Stratton 595589

CARBURETOR

$120.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 595681

DRAIN, Carburetor Bowl

$6.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 595749

NUT

Note: (Carburetor)

$3.49

$

Usually ships in 2-12 days

0
