25M137-0021-F1 - Briggs & Stratton Horizontal Engine Exhaust System, Fuel Supply Parts Diagram

Horizontal Engine

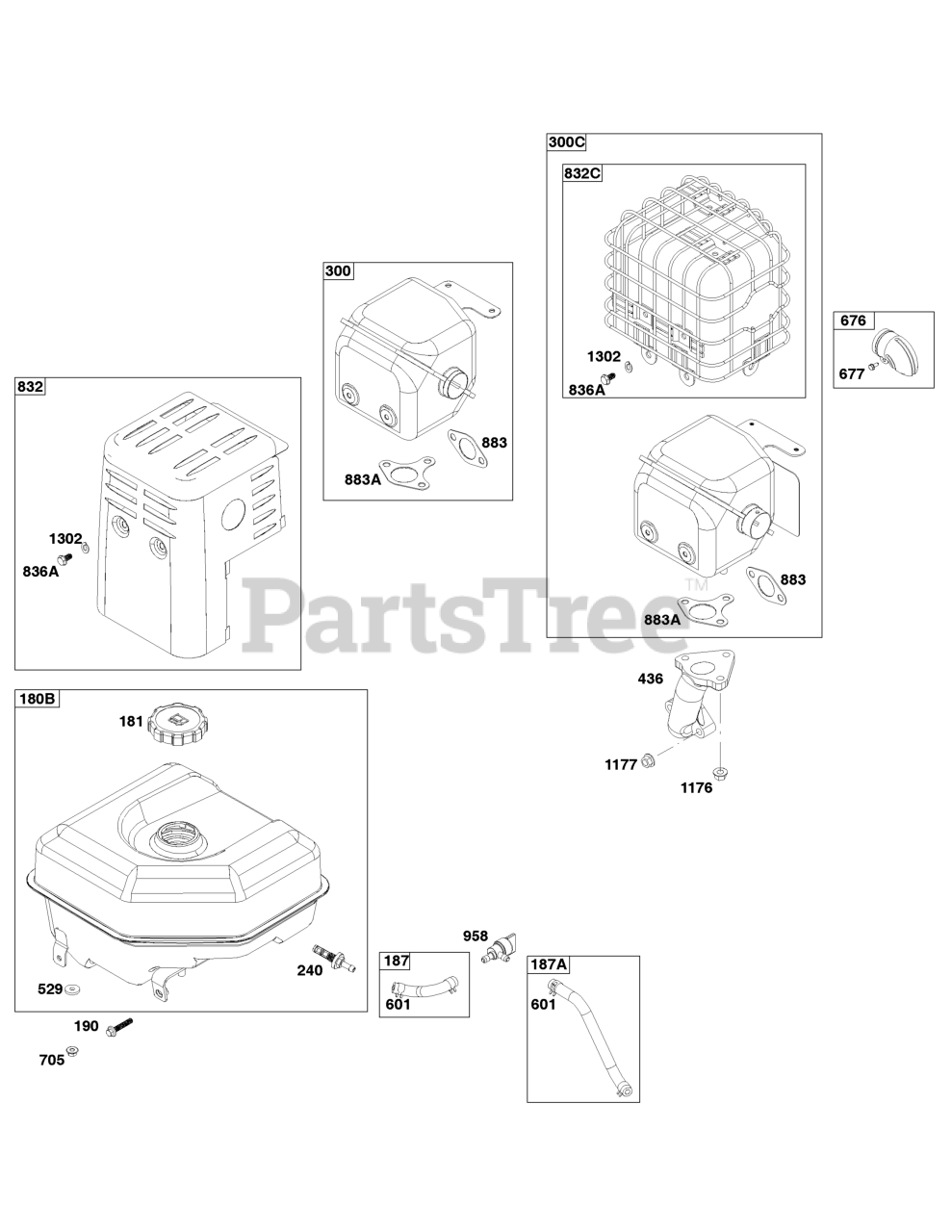

Exhaust System, Fuel Supply Parts Diagram

  • Title

180B

Briggs & Stratton 799782

Tank-Fuel

Note: (Metal)

$139.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 794641

CAP, Fuel Tank

Note: (Metal)

$20.99

$

In Stock, only 3 left!

0

187

Briggs & Stratton 799784

Line-Fuel

Note: (Formed Hose)

$14.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 799785

Line-Fuel

Note: (Formed Hose)

$13.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 590997

SCREW

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 797346

OUTLET, Tank

$12.99

$

In Stock, Qty 7

0

300C

Briggs & Stratton 591837

Muffler

$152.99

$

Usually ships in 2-12 days

0

436

Briggs & Stratton 799796

MANIFOLD, Exhaust

$45.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 799933

GROMMET

$8.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

676

Briggs & Stratton 697816

DEFLECTOR, Muffler

$16.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 699776

SCREW

$3.99

$

In Stock, only 4 left!

0

705

Briggs & Stratton 590965

NUT

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 799800

Guard-Muffler

$67.99

$

Usually ships in 2-12 days

0

832C

Briggs & Stratton 591838

Guard-Muffler

$67.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 798976

SCREW

Note: (Muffler Guard)

$4.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 799797

GASKET, Exhaust

$6.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off(PLT)

$11.99

$

In Stock, Qty 20+

0

1176

Briggs & Stratton 590965

NUT

Note: (Exhaust Manifold)

$3.99

$

Usually ships in 2-12 days

0

1177

Briggs & Stratton 590965

NUT

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

1302

Briggs & Stratton 590457

WASHER

Note: (Muffler Guard)

$3.49

$

Usually ships in 2-12 days

0
