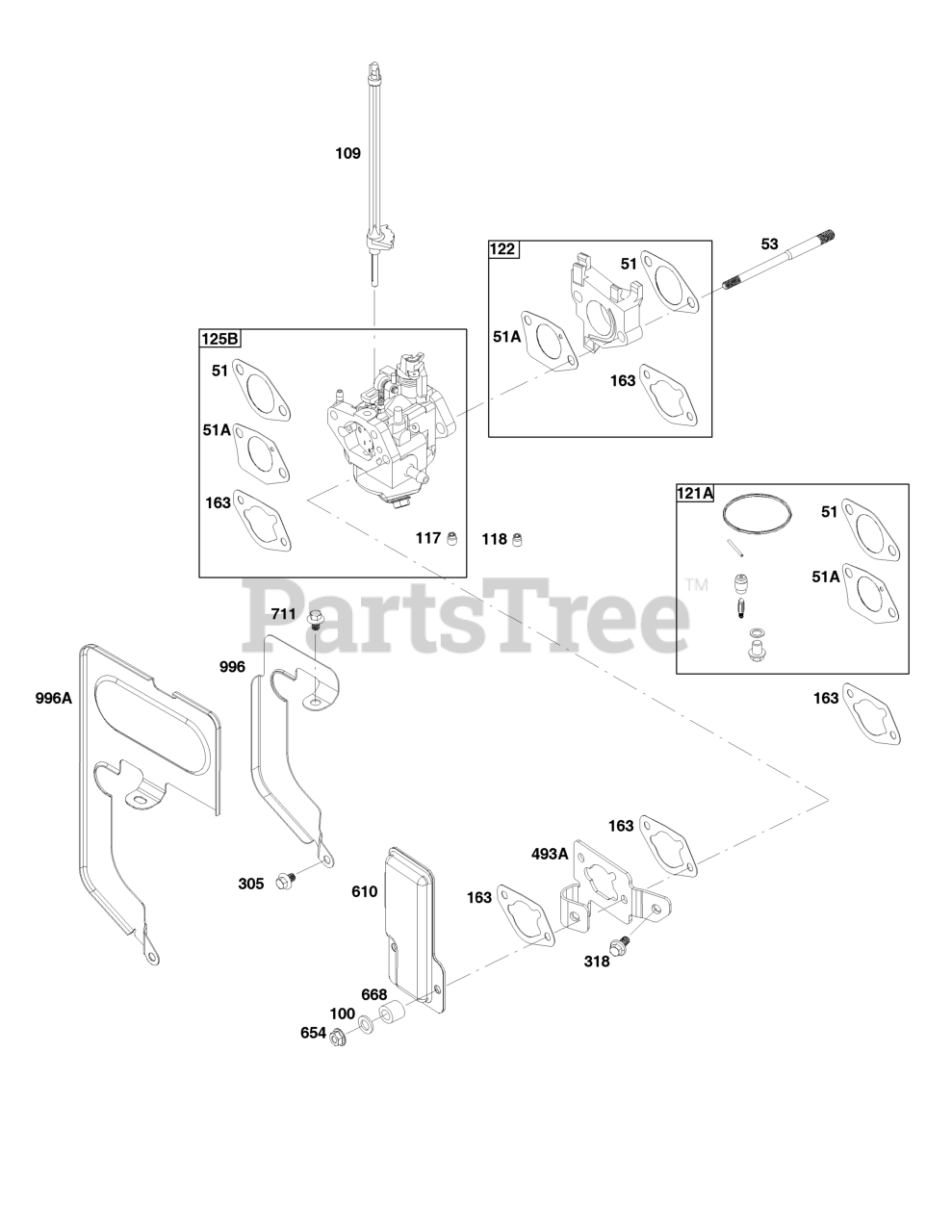

25M137-0021-F1 - Briggs & Stratton Horizontal Engine Carburetor Parts Diagram

Horizontal Engine

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 797845

Gasket-Intake

$4.49

$

In Stock, Qty 11

0

51A

Briggs & Stratton 797755

Gasket-Intake

$4.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 591841

Stud

Note: (Carburetor)

$7.49

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 591000

Washer

Note: (Carburetor)

$4.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 799803

Shaft-Choke

$21.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 591553

Jet-Main

Note: (Standard)

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 591554

Jet-Main

Note: (High Altitude)

$12.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 590453

Kit-Carburetor Overhaul

$62.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 799961

Spacer-Carburetor

$13.99

$

In Stock, Qty 6

0

125B

Briggs & Stratton 799802

Carburetor
(Superseded to 84005069)

$118.99

$

In Stock, Qty 6

0

163

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 798618

SCREW

Note: (Blower Housing)

$3.99

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 799814

SCREW

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 799806

Bracket-Mounting

$14.99

$

Usually ships in 2-12 days

0

610

Briggs & Stratton 799805

ARRESTOR, Intake

$52.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, Qty 8

0

668

Briggs & Stratton 591840

Spacer

$3.49

$

Usually ships in 2-12 days

0

711

Briggs & Stratton 798618

SCREW

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 591844

Shield-Carburetor
(Superseded to 595277)

Note: Used Before Code Date 15082700

$31.99

$

Usually ships in 2-12 days

0

996A

Briggs & Stratton 595277

SHIELD, Carburetor

Note: Used After Code Date 15082600

$31.99

$

Usually ships in 2-12 days

0
