25B-554L731 - Huskee Edger (2006) (Tractor Supply) Spindle Assembly Parts Diagram

Edger

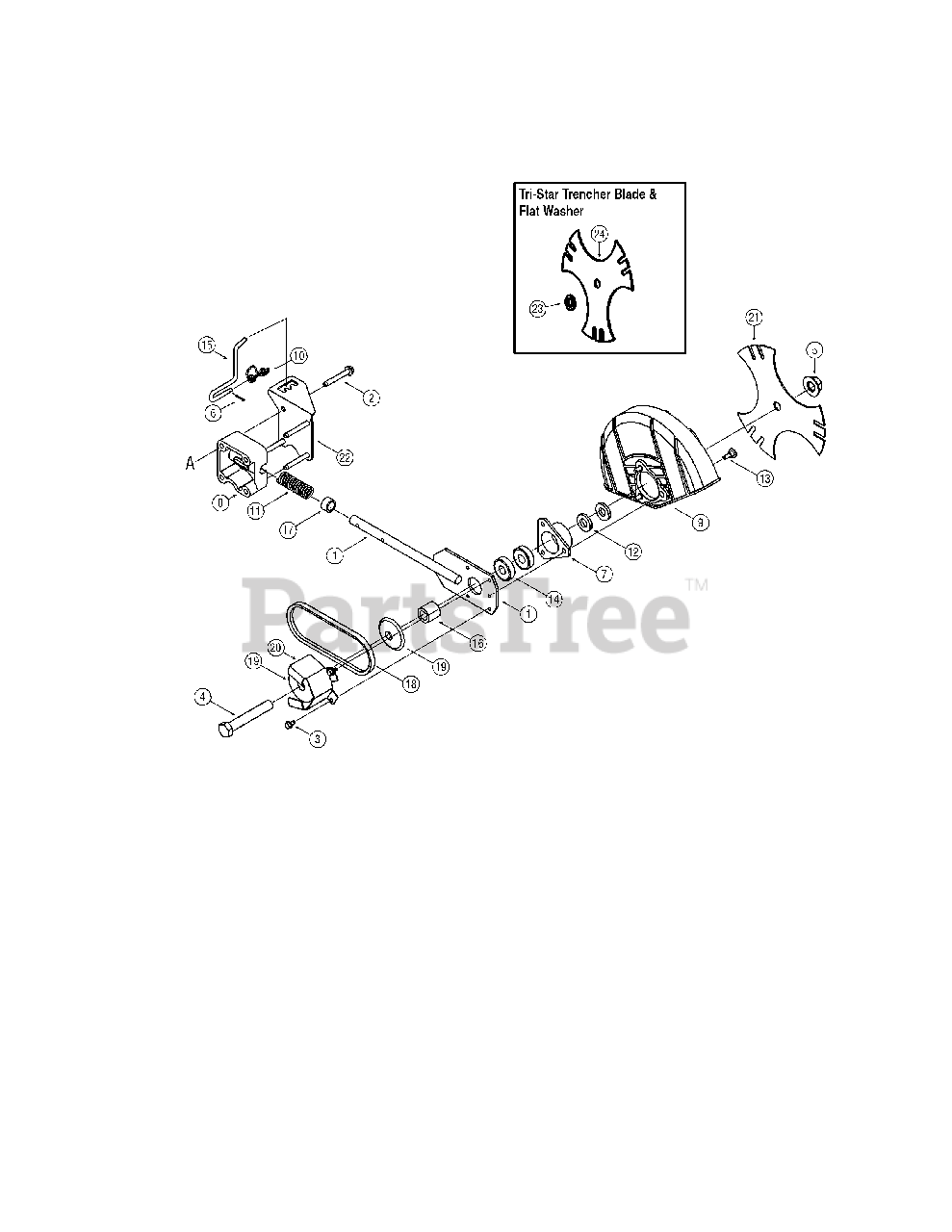

Spindle Assembly Parts Diagram

  • Title

1

MTD 687-02126

Blade Plate Assembly

$56.99

$

Usually ships in 3-6 days

0

2

MTD 710-04389

Hex Screw, 5/16-18

$6.99

$

In Stock, only 1 left!

0

3

MTD 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

5

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

6

MTD 714-3010

Clevis Pin 3/32 x .625

$4.99

$

In Stock, only 1 left!

0

7

MTD 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

8

MTD 731-04207

Bearing Block
(Superseded to 931-04207)

$27.99

$

In Stock, only 1 left!

0

9

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

10

MTD 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 10

0

11

MTD 732-04169

Compression Spring
(Superseded to 932-04169)

$10.99

$

In Stock, only 1 left!

0

12

MTD 736-04088

Flat Washer .635x1.24x.

$4.49

$

In Stock, only 2 left!

0

13

MTD 738-0706B

Shoulder Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

14

MTD 741-0524

Bearing, .625 ID x 1.57
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

15

MTD 747-04110

Blade Adjustment Rod
(Superseded to 747-04110A)

$17.99

$

In Stock, Qty 20+

0

16

MTD 750-04105

Spacer, .63 x 1.12 x 1
(Superseded to 950-04105)

$15.99

$

Usually ships in 3-6 days

0

17

MTD 750-0547

Spacer, .64 x.88 x .50

$5.99

$

In Stock, only 2 left!

0

18

MTD 754-04032B

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 17

0

19

MTD 756-0449

Sheave
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

20

MTD 781-0427

Belt Guard
(Superseded to 781-0427-0637)

Variations

MTD 781-0427-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

21

MTD 781-0748

Tri-star Blade

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

22

MTD 787-01081A

Cover Plate

Variations

MTD 787-01081A-0638

Index Edge Bracket - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-0606

BRKT-INDEX EDGE - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-0637

Index Edge Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-0691

BRKT-INDEX EDGE - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-0721

BRACKET-INDEX EDGE - SEARS RED (0721)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-4021

BRACKET-INDEX EDGE - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

MTD 787-01081A-4044

BRACKET-INDEX EDGE - CRAFTSMAN RED (4044)

$6.49

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

23

MTD 736-04088

Flat Washer

$4.49

$

In Stock, only 2 left!

0

24

MTD 781-0748

Tri-Star Blade (Trencher)

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0
