25B-554L731 - Huskee Edger (2005) (Tractor Supply) Handle Frame & Wheel Assembly Parts Diagram

Edger

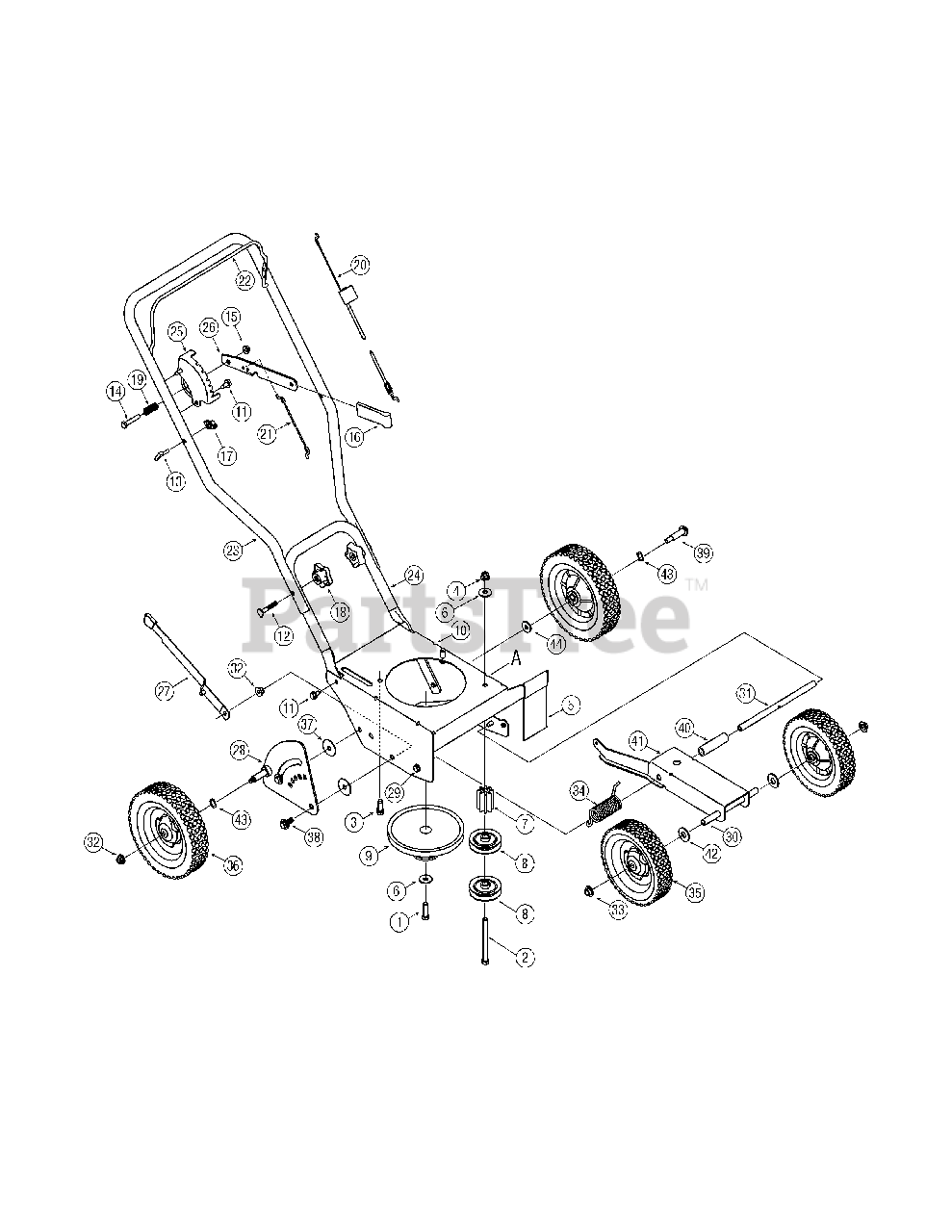

Handle Frame & Wheel Assembly Parts Diagram

  • Title

1

MTD 710-0191

Screw 3/8-24

$4.99

$

In Stock, Qty 8

0

2

MTD 710-0411

Screw 3/8-16

$8.49

$

In Stock, Qty 17

0

3

MTD 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, only 3 left!

0

4

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

6

MTD 736-0452

Bell Washer,.396 x 1.140

$4.99

$

In Stock, Qty 7

0

7

MTD 750-04142

Pulley Mount Spacer
(Superseded to 950-04142)

$14.99

$

Usually ships in 3-6 days

0

8

MTD 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

9

MTD 756-1150A

Combination Flywheel Pulley

$163.99

$

Usually ships in 3-6 days

0

10

MTD 787-01229

Frame
(Superseded to 787-01229-0638)

Variations

MTD 787-01229-0638

FRAME-EDGER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

11

MTD 710-0726

Hex Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1174

Carriage Bolt, 5/16-18

$7.49

$

In Stock, Qty 20+

0

13

MTD 710-1205

Rope Guide (Eye Bolt)

$3.99

$

In Stock, only 2 left!

0

14

MTD 710-3180

Hex Screw, 5/16-18

$5.49

$

In Stock, Qty 15

0

15

MTD 712-04063

Lock Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

17

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

18

MTD 720-04052

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

19

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 746-04035

Control Cable (Briggs & Stratton)
(Superseded to 946-04035)

$20.99

$

In Stock, only 2 left!

0

21

MTD 746-04036

Wheel Adjustment Cable
(Superseded to 946-04036)

$18.99

$

In Stock, Qty 7

0

22

MTD 747-0976A

Bail Handle
(Superseded to 747-0976B)

Variations

MTD 747-0976A-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

23

MTD 749-04183

Upper Handle
(Superseded to 749-04183A)

Variations

MTD 749-04183-0637

HANDLE:UPR:EDGER BLK - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

24

MTD 749-04184

Lower Handle
(Superseded to 749-04234)

Note: (when replacing 749-04184 with 749-04234 lower handle, also furnish 711-04440 threaded frame spacer)

Variations

MTD 749-04184-0637

Lower Handle for Edger - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

24

MTD 749-04234

Lower Handle

Note: (replaces 749-04184)

Variations

MTD 749-04234-0637

Lower Handle for Edger - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

24

MTD 711-04440

Threaded Frame Spacer

Note: (replaces 749-04184)

$29.99

$

Usually ships in 3-6 days

0

25

MTD 781-0741A

Depth Index Bracket

Variations

MTD 781-0741A-0637

BRKT-INDEX DEPTH - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

26

MTD 781-0742

Depth Index Lever
(Superseded to 781-0742-0637)

Variations

MTD 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

27

MTD 687-02022

Curb Height Adjustment

$70.99

$

Usually ships in 3-6 days

0

28

MTD 687-02125

Curb Height Adjuster Plate
(Superseded to 687-02125A)

$

$

Not available

29

MTD 710-0759

Hex Screw 5/16-18

$6.99

$

Usually ships in 3-6 days

0

30

MTD 711-04361

Axle Shaft .50x6.65

$

$

Not available

31

MTD 711-04392A

Frame Spacer .50x9.25

$

$

Not available

32

MTD 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

MTD 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0

34

MTD 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

35

MTD 734-1264

Wheel 7x1.8

$55.99

$

Usually ships in 3-6 days

0

36

MTD 734-1268

Wheel 8x1.8

$71.99

$

Usually ships in 3-6 days

0

37

MTD 736-0234

Flat Washer, .385 x 1.5 x .075

$6.49

$

Usually ships in 3-6 days

0

38

MTD 738-04149

Shoulder Screw, 3/8-16

$4.49

$

In Stock, only 3 left!

0

39

MTD 738-0929

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 2 left!

0

40

MTD 750-04129

Spacer

$4.99

$

Usually ships in 3-6 days

0

41

MTD 787-01239

Dual Wheel Bracket

Variations

MTD 787-01239-0638

BRACKET-WHEEL - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 787-01239-0637

BRACKET-WHEEL - POWDER BLACK (0637)

$

$

Not available

MTD 787-01239-0709

BRACKET-WHEEL - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01239-0721

BRACKET-WHEEL - SEARS RED (0721)

$

$

Not available

MTD 787-01239-4044

BRACKET-WHEEL - CRAFTSMAN RED (4044)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

42

MTD 736-0179

Flat Washer 1/2 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

43

MTD 736-0232

Wave Washer .531 x .781 x .013

$4.99

$

In Stock, Qty 12

0

44

MTD 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0
