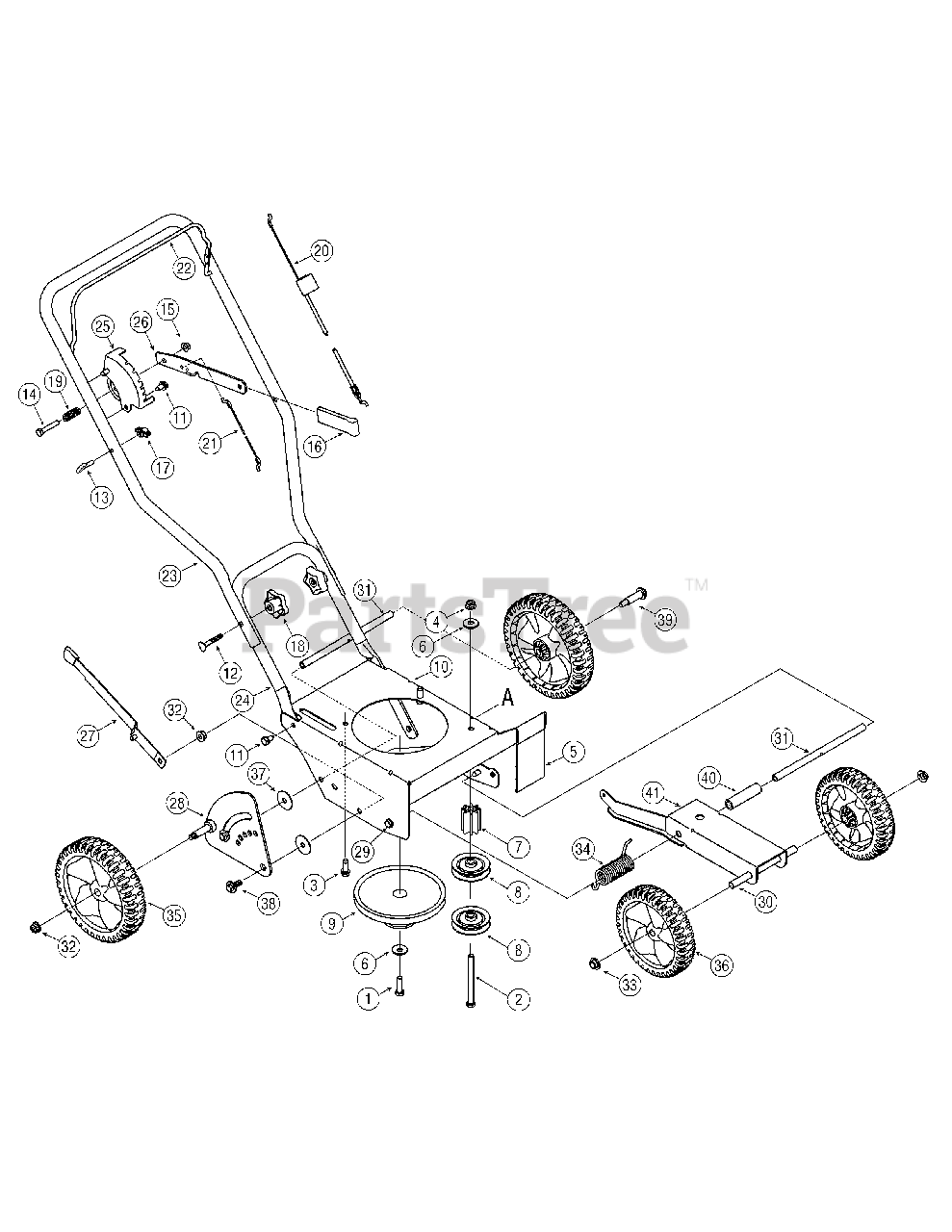

25B-550A765 - Bolens Walk-Behind Edger (2005) General Assembly 2 Parts Diagram

Walk-Behind Edger

General Assembly 2 Parts Diagram

  • Title

1

MTD 710-0191

Screw 3/8-24

$4.99

$

In Stock, Qty 9

0

2

MTD 710-0411

Screw 3/8-16

$8.49

$

In Stock, Qty 17

0

3

MTD 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, only 4 left!

0

4

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

6

MTD 736-0452

Bell Washer, .396 x 1.140

$4.99

$

In Stock, Qty 5

0

7

MTD 750-04142

Pulley Mount Spacer
(Superseded to 950-04142)

$14.99

$

Usually ships in 3-6 days

0

8

MTD 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

9

MTD 756-1150A

Combination Flywheel Pulley

$163.99

$

Usually ships in 3-6 days

0

10

MTD 787-01304

Frame (use with 2 frame spacers)

Variations

MTD 787-01304-0606

FRAME:EDGER - MAJESTIC ORANGE (0606)

$69.99

$

Usually ships in 3-6 days

0

MTD 787-01304-0638

FRAME:EDGER - MTD/TROY-BILT RED (0638)

$69.99

$

Usually ships in 3-6 days

0

MTD 787-01304-0691

FRAME:EDGER - BLACK JACK (0691)

$69.99

$

Usually ships in 3-6 days

0

MTD 787-01304-0709

FRAME:EDGER - MASTERCRAFT GREEN (0709)

$79.99

$

Usually ships in 3-6 days

0

MTD 787-01304-0721

FRAME:EDGER - SEARS RED (0721)

$79.99

$

Usually ships in 3-6 days

0

MTD 787-01304-4021

FRAME:EDGER - CUB YELLOW 2 (4021)

$79.99

$

Usually ships in 3-6 days

0

MTD 787-01304-4044

FRAME:EDGER - CRAFTSMAN RED (4044)

$79.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

24

MTD 749-04234

Lower Handle (use with 2 frame spacers)

Variations

MTD 749-04234-0637

Lower Handle for Edger - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

25

MTD 781-0741A

Depth Index Bracket

Variations

MTD 781-0741A-0637

BRKT-INDEX DEPTH - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

26

MTD 781-0742

Depth Index Lever
(Superseded to 781-0742-0637)

Variations

MTD 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

27

MTD 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

28

MTD 687-02125

Curb Height Adjuster Plate
(Superseded to 687-02125A)

$

$

Not available

29

MTD 710-0870

Hex Screw, 5/16 x 18

$6.49

$

In Stock, only 1 left!

0

30

MTD 711-04361

Axle Shaft .50x6.65

$

$

Not available

31

MTD 711-04440

Frame Spacer, .50x9.25 (2 used)

$29.99

$

Usually ships in 3-6 days

0

32

MTD 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

MTD 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0
