25B-52J1700 - Yard Machines Walk-Behind Edger (2016) Blade and Drive Assembly Parts Diagram

Walk-Behind Edger

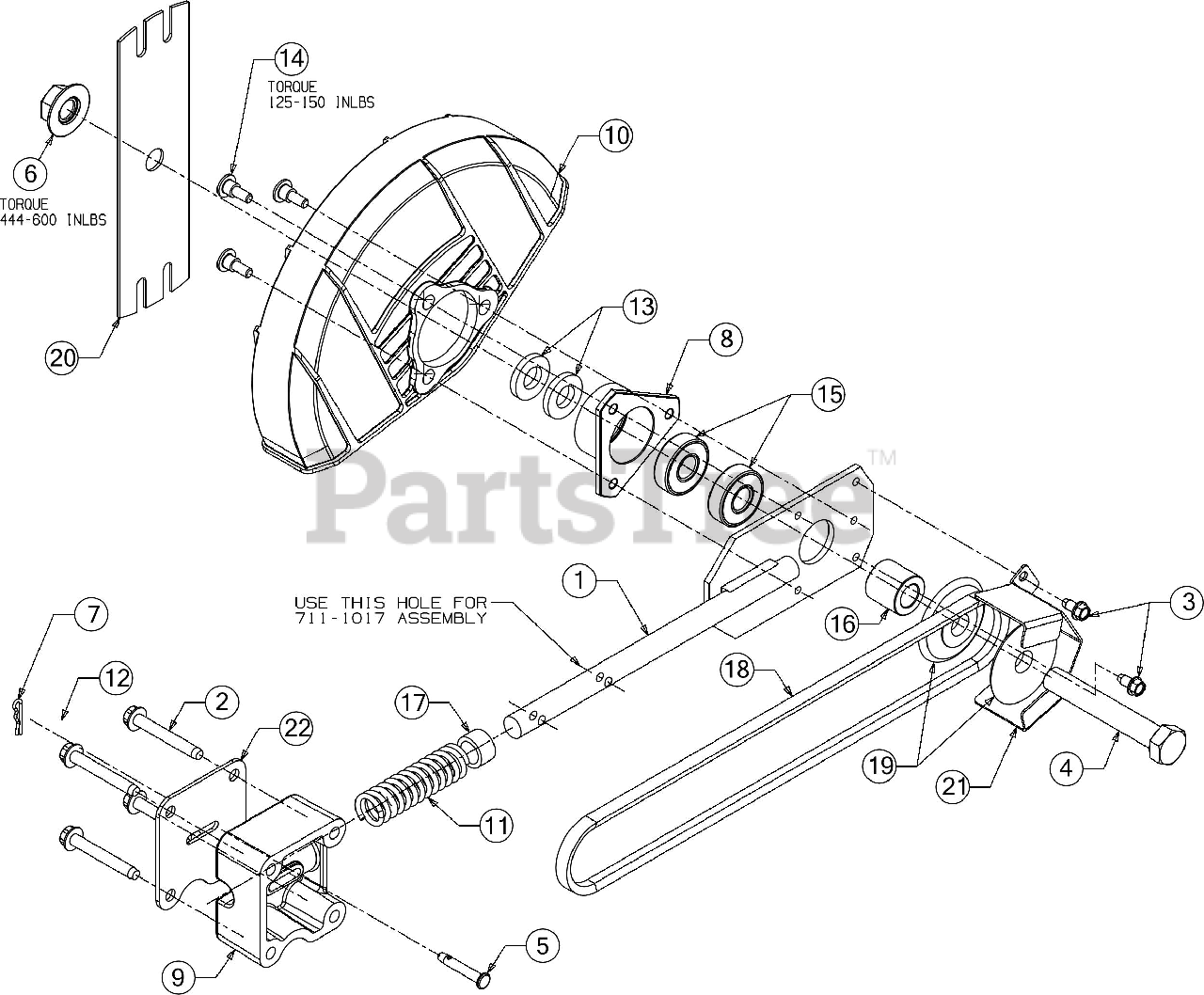

Blade and Drive Assembly Parts Diagram

  • Title

1

MTD 687-02126

BLADE PLATE ASSEMBLY

$56.99

$

In Stock, only 1 left!

0

2

MTD 710-04389

SCREW

$6.99

$

In Stock, only 1 left!

0

3

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1143A

SCREW 5/8-18 X 4 GR5

$11.99

$

In Stock, only 2 left!

0

5

MTD 711-1017

CLEVIS PIN

$7.49

$

In Stock, only 1 left!

0

6

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

7

MTD 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

8

MTD 718-04012

BEARING CUP

$21.99

$

In Stock, only 1 left!

0

9

MTD 931-04207

BEARING BLOCK

$27.99

$

In Stock, only 1 left!

0

10

MTD 731-05064

BLADE GUARD
(Superseded to 731P05064)

$27.99

$

Usually ships in 3-6 days

0

11

MTD 932-04169

COMPRESSION SPRING

$10.99

$

In Stock, only 1 left!

0

12

MTD 736-0342

FLAT WASHER .283 ID X .749 X .030

$7.49

$

Usually ships in 3-6 days

0

13

MTD 936-04088

FLAT WASHER .635 X 1.24 X .181
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

14

MTD 738-0706C

SHOULDER SCREW .375X.280:1/4-14
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

15

MTD 941-0524A

BALL BEARING

$23.99

$

In Stock, Qty 20+

0

16

MTD 950-04105

SPACER

$15.99

$

Usually ships in 3-6 days

0

17

MTD 750-0547

SPACER

$5.99

$

In Stock, only 2 left!

0

18

MTD 954-04032B

BELT 3L X 35.8

$25.99

$

In Stock, Qty 20+

0

19

MTD 956-0449

SHEAVE

$14.99

$

In Stock, only 2 left!

0

20

MTD 781-0080-0637

EDGER BLADE

$8.99

$

In Stock, Qty 20+

0

21

MTD 781-0427-0637

BELT GUARD-

$20.99

$

Usually ships in 3-6 days

0

22

MTD 787-01075A-0637

COVER PLATE

$19.99

$

Usually ships in 3-6 days

0
