25B-52J1700 - Yard Machines Walk-Behind Edger (2014) General Assembly Parts Diagram

Walk-Behind Edger

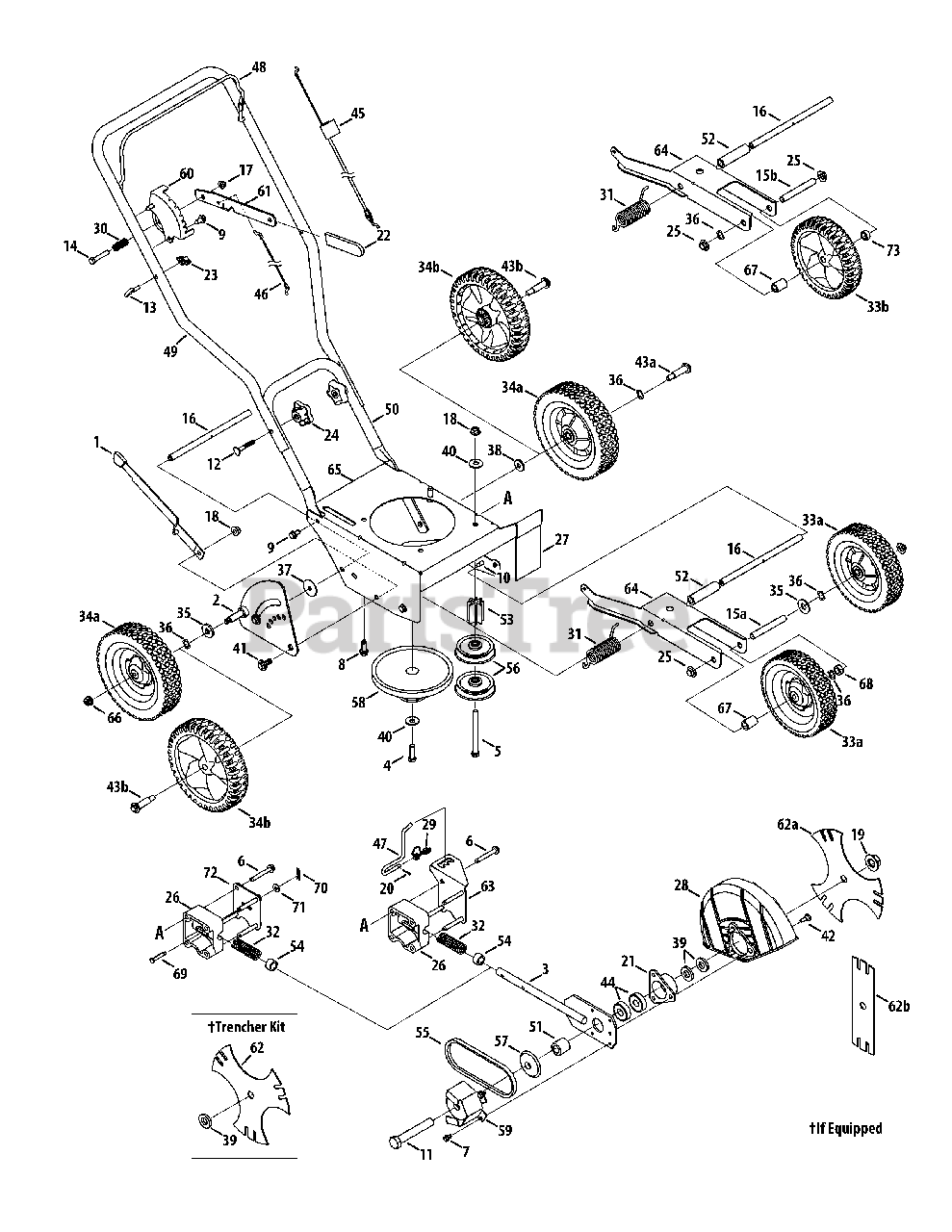

General Assembly Parts Diagram

  • Title

1

MTD 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

2

MTD 687-02585

Curb Height Adjuster Plate

$30.99

$

In Stock, only 1 left!

0

3

MTD 687-02126

Blade Plate Assembly

$56.99

$

Usually ships in 3-6 days

0

4

MTD 710-0191

Screw 3/8-24

$4.99

$

In Stock, Qty 9

0

5

MTD 710-0411

Screw 3/8-16

$8.49

$

In Stock, Qty 17

0

6

MTD 710-04389

Hex Screw, 5/16-18

$6.99

$

In Stock, only 1 left!

0

7

MTD 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0726

Hex Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0870

Hex Screw 5/16-18

$6.49

$

In Stock, only 1 left!

0

11

MTD 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

12

MTD 710-1174

Carriage Bolt, 5/16-18

$7.49

$

In Stock, Qty 20+

0

13

MTD 710-1205

Rope Guide (Eye Bolt)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Screw, 5/16-18

$5.49

$

In Stock, Qty 20+

0

15a

MTD n/a

Axle Shaft .50x6.65

Note: Not used on this model

$

$

Currently unavailable

15b

MTD 711-04362

Axle Shaft .50 x 3.8

$9.49

$

Usually ships in 3-6 days

0

16

MTD 711-04440

Frame Spacer .50x9.25

$29.99

$

Usually ships in 3-6 days

0

17

MTD 712-04063

Lock Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

20

MTD 714-3010

Clevis Pin 3/32 x .625

$4.99

$

In Stock, only 1 left!

0

21

MTD 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

22

MTD 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

23

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

24

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

25

MTD 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0

26

MTD 931-04207

Bearing Block

$27.99

$

In Stock, only 1 left!

0

27

MTD 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

28

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

29

MTD 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 9

0

30

MTD 932-0369

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

31

MTD 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

32

MTD 932-04169

Compression Spring

$10.99

$

In Stock, only 1 left!

0

33a

MTD n/a

Wheel 7 x 1.75 T-Tread

Note: Not used on this model

$

$

Currently unavailable

33b

MTD 734-04562

Wheel 7 x 1.8, Pin Bar, Grey

$24.99

$

In Stock, Qty 10

0

34a

MTD n/a

Wheel 8 x 1.75 T-Tread

Note: Not used on this model

$

$

Currently unavailable

34b

MTD 734-04563

Wheel 8 x 1.8, Pin Bar, Grey

$28.99

$

In Stock, Qty 9

0

35

MTD 736-04019

Flat Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

36

MTD 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

37

MTD 736-0234

Flat Washer, .385 x 1.5 x .075

$6.49

$

Usually ships in 3-6 days

0

38

MTD 736-0258

Flat Washer .385 x 1.0 x .135 †

$4.49

$

In Stock, only 4 left!

0

39

MTD 936-04088

Flat Washer .635x1.24x.181
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

40

MTD 936-0452

Bell Washer,.396 x 1.140
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

41

MTD 738-04149

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

MTD 738-0706C

Shoulder Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

43a

MTD n/a

Shoulder Screw, 3/8-16

Note: Not used on this model

$

$

Currently unavailable

43b

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

44

MTD 941-0524A

Bearing, .625 ID x 1.57 OD

$23.99

$

In Stock, Qty 20+

0

45

MTD 746-04035

Control Cable
(Superseded to 946-04035)

$20.99

$

In Stock, only 1 left!

0

46

MTD 946-04036

Wheel Adjustment Cable

$18.99

$

In Stock, Qty 5

0

47

MTD 747-04110A

Blade Adjustment Rod

$17.99

$

In Stock, Qty 20+

0

48

MTD 747-0976A-0637

Bail Handle
(Superseded to 747-0976B)

$25.99

$

In Stock, only 1 left!

0

49

MTD 749-04183A

Upper Handle

Variations

MTD 749-04183A-0637

HANDLE-UPPER - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

50

MTD 749-04234

Lower Handle

Variations

MTD 749-04234-0637

Lower Handle for Edger - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

51

MTD 950-04105

Spacer, .63 x 1.12 x 1.06

$15.99

$

Usually ships in 3-6 days

0

52

MTD 750-04129

Spacer

$4.99

$

Usually ships in 3-6 days

0

53

MTD 950-04142

Pulley Mount Spacer

$14.99

$

Usually ships in 3-6 days

0

54

MTD 750-0547

Spacer, .64 x.88 x .50

$5.99

$

In Stock, only 2 left!

0

55

MTD 954-04032B

Belt

$25.99

$

In Stock, Qty 13

0

56

MTD 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

57

MTD 956-0449

Sheave

$14.99

$

In Stock, only 2 left!

0

58

MTD 756-1150A

Combination Flywheel Pulley

$163.99

$

Usually ships in 3-6 days

0

59

MTD 781-0427-0637

Belt Guard

$20.99

$

In Stock, only 1 left!

0

60

MTD 781-0741A

Depth Index Bracket

Variations

MTD 781-0741A-0637

BRKT-INDEX DEPTH - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

61

MTD 781-0742-0637

Depth Index Lever

$39.99

$

Usually ships in 3-6 days

0

62a

MTD 781-0748-0637

Tri-Star Blade

$21.99

$

In Stock, Qty 13

0

62b

MTD 781-0080-0637

Standard Blade

$8.99

$

In Stock, Qty 20+

0

63

MTD 787-01081A-0638

Bracket Plate
(Superseded to 787-01081A-0637)

$6.49

$

Usually ships in 3-6 days

0

64

MTD 787-01240-0638

Dual Wheel Bracket

$29.99

$

Usually ships in 3-6 days

0

65

MTD 787-01304-0638

Frame
(Superseded to 787-01304-0691)

$69.99

$

Usually ships in 3-6 days

0

66

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

67

MTD 750-05548

Spacer., .525 x .775 x .93

$3.99

$

Usually ships in 3-6 days

0

68

MTD 750-0664

Spacer., .505ID x .88OD x .440

$6.99

$

In Stock, only 2 left!

0

69

MTD 711-1017

Clevis Pin, .250 x 1.53

$7.49

$

In Stock, only 1 left!

0

70

MTD 914-0104

Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

72

MTD 787-01075A-0637

Cover Plate

$19.99

$

Usually ships in 3-6 days

0

73

MTD 750-04428

Spacer, .525 x .775 x .3125

$3.49

$

In Stock, Qty 12

0
