25B-52J1700 - Yard Machines Walk-Behind Edger (2014) 1T65RU Cylinder Head & Muffler Parts Diagram

Walk-Behind Edger

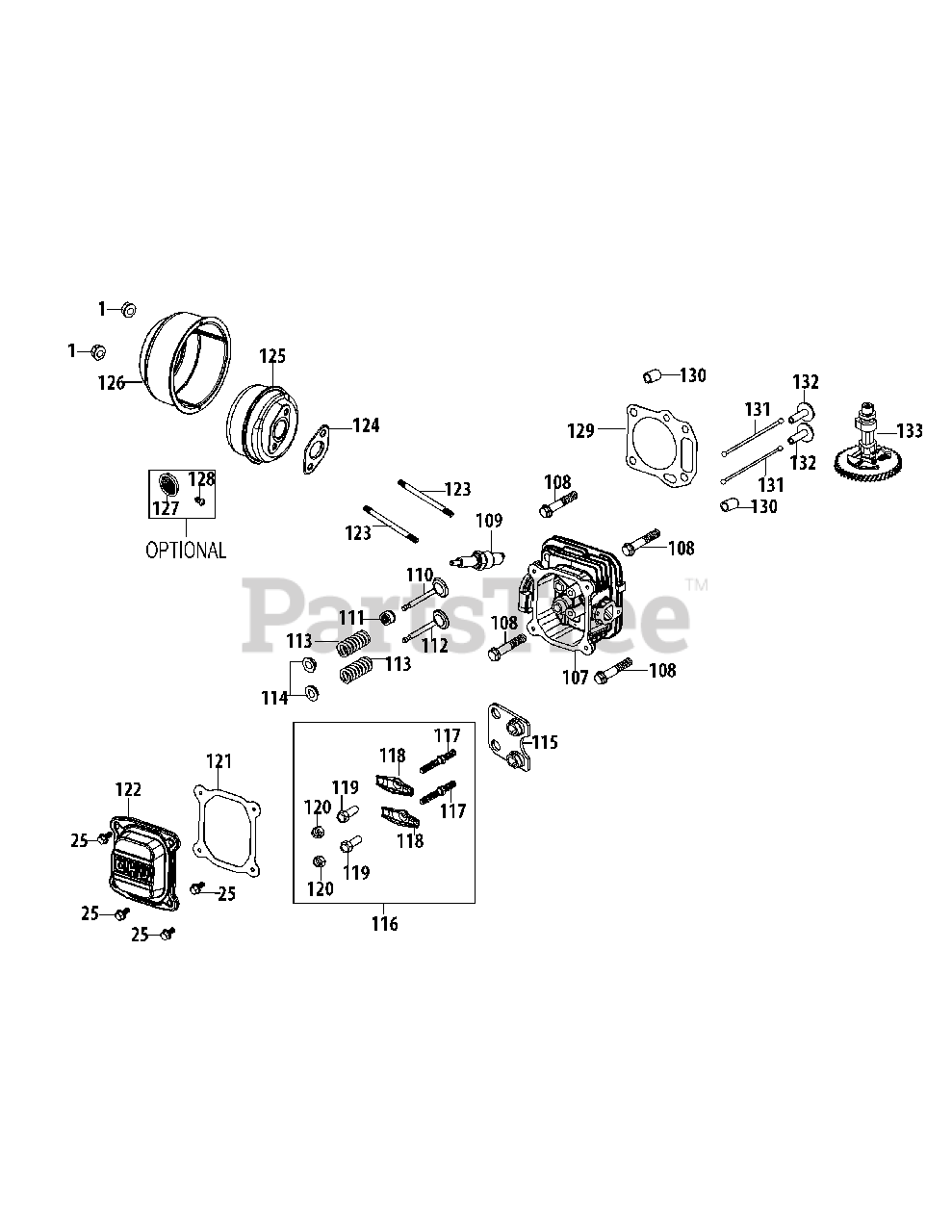

1T65RU Cylinder Head & Muffler Parts Diagram

  • Title
1

MTD 712-05015

Nut M6X10Mm Starter/Carb/Muff

$6.99

$

In Stock, Qty 20+

0

25.1

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

107

MTD 951-05162

Cylinder Head Assembly

$113.99

$

Usually ships in 3-6 days

0

107.1

MTD 951-14689

Cylinder Head

$122.99

$

Usually ships in 3-6 days

0

108

MTD 710-06200

Bolt M8X54 Cylinder Head

$6.49

$

Usually ships in 3-6 days

0

109

MTD 951-14437

Spark Plug/F5Rtc

$8.49

$

In Stock, Qty 20+

0

110

MTD 951-14640

Intake Valve
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

111

MTD 921-04705

Intake Valve Seal

$6.49

$

Usually ships in 3-6 days

0

112

MTD 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

113

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

114

MTD 708-04094

Valve Spring Retainer
(Superseded to 951-11977)

$4.49

$

In Stock, only 2 left!

0

115

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

116

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

117

MTD 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

118

MTD 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

119

MTD 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

120

MTD 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

121

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

122

MTD 908-05094

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

123

MTD 710-06204

Muffler Stud M6X76

$5.99

$

In Stock, Qty 20+

0

124

MTD 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, Qty 20+

0

125

MTD 951-14692

Muffler Assembly
(Superseded to 951-14692A)

$16.99

$

In Stock, only 1 left!

0

126

MTD 751-14693

Muffler Shield
(Superseded to 951-14693A)

$27.99

$

In Stock, only 1 left!

0

127

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

128

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

129

MTD 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

130

MTD 715-04108

Cylinder Head Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

131

MTD 747-04862

Push Rod

$6.49

$

In Stock, Qty 6

0

132

MTD 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

133

MTD 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

MTD 952Z1T65RUA

Complete Engine
(Superseded to 952Z1T65RUC)

Note: (not shown)

$679.99

$

Usually ships in 3-6 days

0
