25A-587-136 - Yard Machines Walk-Behind Edger (1998) (Homebase) 25A-587-136 General Assembly Parts Diagram

Walk-Behind Edger

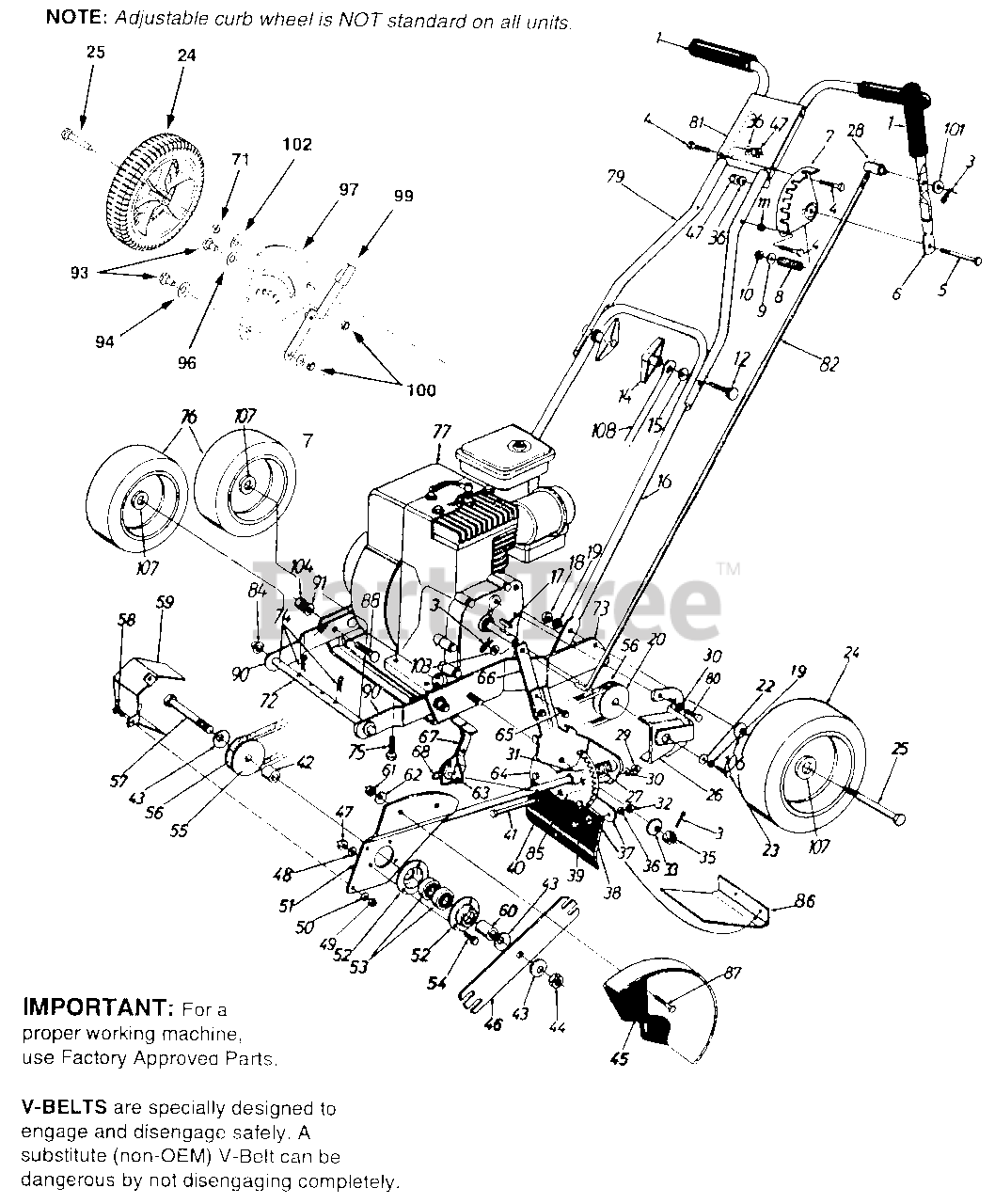

25A-587-136 General Assembly Parts Diagram

  • Title

1

MTD 720-0283

Grip

$8.49

$

Usually ships in 3-6 days

0

?2

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

MTD 714-0104

Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

5

MTD 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

6

MTD 749-0666

Engagement Handle
(Superseded to 749-0666-0637)

Variations

MTD 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

MTD 781-0081

Adjustment Bracket

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

MTD 732-0369

Compression Spring 1.38" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 736-0264

Flat Wash. .344" I.D.

$6.99

$

In Stock, only 2 left!

0

10

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

12

MTD 710-1174

Curv. Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 720-0241

Wing Nut Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

MTD 736-0451

Saddle Wash. .32" I.D. x .937"

$4.49

$

In Stock, Qty 11

0

16

MTD 749-0937

Lower Handle
(Superseded to 749-0937-0637)

Variations

MTD 749-0937-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 714-4122

Sq. Key 3/16" x .75" Lg.

$

$

Currently unavailable

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

MTD 738-0169

L-Wash. 3/8" I.D.

$

$

Currently unavailable

20

MTD 756-0327B

Engine Pulley

$

$

Not available

22

MTD 736-0258

Flat Wash. .385" I.D.

$4.49

$

In Stock, only 4 left!

0

23

MTD 710-0152

Hex Bolt 3/8-24 x 1 Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

24

MTD 734-1781

Wheel, Slot Bar Gray

$32.99

$

In Stock, Qty 7

0

25

MTD 738-0108

Shoulder Bolt .498" Dia.
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

26

MTD 687-0100

Belt Guard Ass'y.

Variations

MTD 687-0100-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 687-0100-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 687-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-0100-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-0100-0716

No Longer Available GUARD-BELT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

28

MTD 711-0392

Ferrule

$13.99

$

Usually ships in 3-6 days

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 715-0143

Spring Pin Spir. 1/4" Dia.

$4.99

$

In Stock, Qty 9

0

32

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

MTD 736-0112

Bell Wash. .535" I.D.

$9.99

$

Usually ships in 3-6 days

0

35

MTD 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

36

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

37

MTD 781-0087

Flap Bracket

Variations

MTD 781-0087-0637

Flap Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 736-0342

Flat Wash. .25" I.D.

$7.49

$

Usually ships in 3-6 days

0

39

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

40

MTD 731-0725

Flap

$

$

Not available

41

MTD 710-0402

Hex Bolt 5/16-18 x 4.5" Lg.

$

$

Not available

42

MTD 750-0229

Spacer 1.030" Lg.
(Superseded to 950-0229)

$

$

Not available

43

MTD 736-0317

Bell Washer .63" I.D.

$7.99

$

In Stock, Qty 20+

0

44

MTD 712-0413

Hex Jam L-Nut 5/8-18 Thd.

$6.49

$

In Stock, only 1 left!

0

45

MTD 781-0076

Guard Ass'y.

Variations

MTD 781-0076-0637

No Longer Available GUARD ASM - POWDER BLACK (0637)

$

$

Not available

MTD 781-0076-0483

No Longer Available GUARDASSY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0076-0498

No Longer Available GUARDASSY - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0076-0638

No Longer Available GUARDASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0076-0650

No Longer Available GUARDASSY - RED METALLIC (0650)

$

$

Not available

MTD 781-0076-0662

No Longer Available GUARDASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0076-0665

No Longer Available GUARDASSY - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0076-0667

No Longer Available GUARDASSY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0076-0716

No Longer Available GUARDASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

MTD 781-0080

Edger Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

47

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

48

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

49

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

51

MTD 781-0078

Spindle Plate Ass'y.

Variations

MTD 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 05034A

Bearing Housing

$

$

Not available

53

MTD 741-0155

Ball Bearing .62 I.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

54

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

MTD 756-0449

3/8" "V"-Pulley
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

56

MTD 754-0142

"V"-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

57

MTD 710-0929

Hex Bolt 5/8-18 x 4.5" Lg.
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

58

MTD 710-0258

Hex Bolt 1/4-20 x .625" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

59

MTD 781-0086

Belt Guard
(Superseded to 781-0427-0637)

Variations

MTD 781-0086-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

60

MTD 750-0118

Sleeve .90" Lg.
(Superseded to 950-0118)

$

$

Not available

61

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0242

Bell Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 715-0121

Spring Pin Spir. 1/4" Dia.

$6.99

$

In Stock, Qty 8

0

64

MTD 781-0090

Pivot Bracket Ass'y.

Variations

MTD 781-0090-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0090-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0090-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0090-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0090-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 710-0600

Hex Self-Tap Scr. 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

66

MTD 781-0075

Arm Extension
(Superseded to 781-0075-0637)

Variations

MTD 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

67

MTD 781-0093

Adjustment Lever Ass'y.
(Superseded to 981-0093)

$

$

Not available

68

MTD 732-0188A

Torsion Spring

$12.99

$

In Stock, Qty 9

0

?69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

?70

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

MTD 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

72

MTD 738-0898

Axle 8.20" Lg. (Front)
(Superseded to 938-0898)

$

$

Not available

73

MTD 681-0044

Base Ass'y

Variations

MTD 681-0044-0637

BASE ASSY - POWDER BLACK (0637)

$

$

Not available

MTD 681-0044-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0044-0650

BASE ASSY - RED METALLIC (0650)

$

$

Not available

MTD 681-0044-0662

BASE ASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0044-0716

No Longer Available BASE ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

74

MTD 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

75

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

76

MTD 734-1797

Wheel, Slot Bar Gray

$

$

Not available

77

Engine

$

$

Not available

79

MTD 749-0938

Upper Handle

Variations

MTD 749-0938-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

80

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

81

MTD 781-0091A

Handle Support Plate

Variations

MTD 781-0091A-0637

No Longer Available PLATE-HAND - POWDER BLACK (0637)

$

$

Not available

MTD 781-0091A-0638

No Longer Available PLATE-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

82

MTD 747-1164

Clutch Rod

$

$

Not available

84

MTD 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, only 2 left!

0

85

MTD 711-0386

Spacer 3.765" Lg.

$

$

Not available

86

MTD 781-0095

Debris Deflector

Variations

MTD 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

MTD 781-0095-0483

No Longer Available DEFLECTOR- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0095-0638

No Longer Available DEFLECTOR-DEBRIS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0095-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

90

MTD 781-0580

Axle Arm

Variations

MTD 781-0580-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0580-0638

No Longer Available AXLE ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

91

MTD 736-0105

Bell Washer .40" I.D.

$4.49

$

In Stock, Qty 20+

0

?92

MTD 736-0280

Flat Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

93

MTD 738-0258

Shld. Bolt .5" Dia.
(Superseded to 938-0258)

$

$

Not available

94

MTD 736-0255

Bell Wash. .515" I.D.

$4.99

$

In Stock, only 3 left!

0

96

MTD 736-0272

Flat Wash. .51" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

97

MTD 781-0100

Curb Height Adjuster

Variations

MTD 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

99

MTD 732-0552

Spring Adj. Lever
(Superseded to 932-0552)

$

$

Not available

100

MTD 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

101

MTD 736-0264

Flat Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

102

MTD 736-0504

Wave Wash. .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

103

MTD 736-3050

Flat Washer .406" I.D. x .81" O.D.

$4.49

$

In Stock, Qty 16

0

104

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

?105

MTD 736-0452

Bell Washer .396" I.D. x 1.14" O.D.

$4.99

$

In Stock, Qty 5

0

106

MTD 736-0105

Bell Washer .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

107

UNKNOWN

$

$

Not available

108

MTD 749-0941

Strut 15.91"
(Superseded to 749-0941-0637)

Variations

MTD 749-0941-0637

STRUT - POWDER BLACK (0637)

$

$

Not available

$

$

111

MTD 736-0463

Flat Washer .25" I.D. x.62" O.D.

$4.49

$

In Stock, Qty 20+

0
