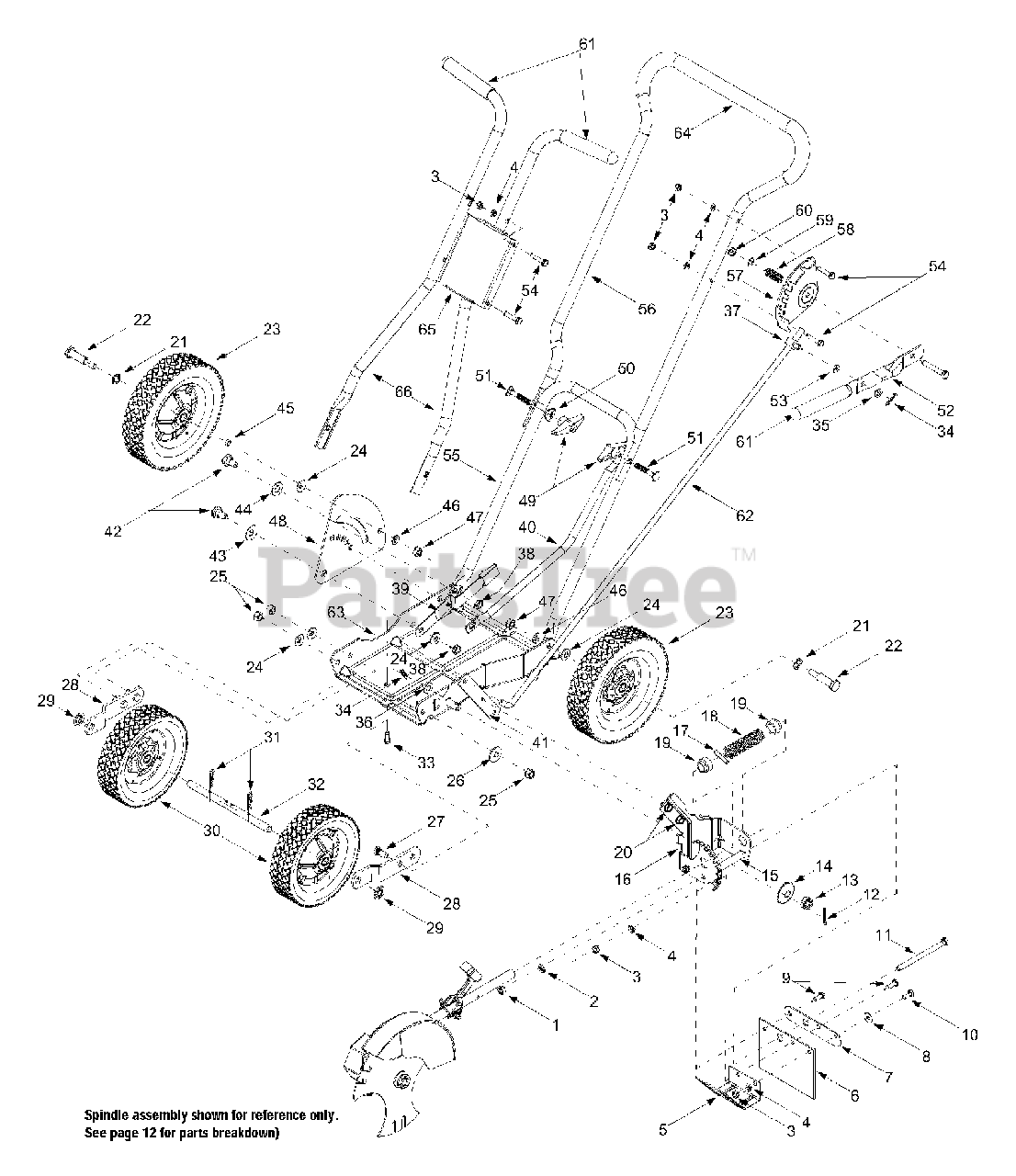

25A-580A000 - Yard Machines Walk-Behind Edger (2002) General Assembly Parts Diagram

Walk-Behind Edger

General Assembly Parts Diagram

  • Title

1

MTD 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

MTD 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

4

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

MTD 781-0095

Debris Deflector

Variations

MTD 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

MTD 781-0095-0483

No Longer Available DEFLECTOR- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0095-0638

No Longer Available DEFLECTOR-DEBRIS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0095-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 731-0725

Debris Guard

$

$

Not available

7

MTD 781-0087

Flap Bracket, 1.12 x 5.5

Variations

MTD 781-0087-0637

Flap Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

9

MTD 710-0252

Hex Screw w/ Nose, 1/4-20 x .85
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0751

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0402

Hex Screw, 5/16-18 x 4.5

$

$

Not available

12

MTD 714-0115

Cotter Pin, 1/8 x 1.0

$3.99

$

In Stock, only 2 left!

0

13

MTD 712-0114

Slotted Hex Nut, 1/2-20
(Superseded to 912-0114)

$

$

Not available

14

MTD 736-0112

Sphere Washer, .531 x 1.6 x .045

$9.99

$

Usually ships in 3-6 days

0

15

MTD 711-0386

Spacer, .38 x .50 x 3.75

$

$

Not available

16

MTD 781-0090

Spindle Pivot Bracket Assembly

Variations

MTD 781-0090-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0090-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0090-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0090-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0090-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 715-0143

Spirol Pin, 1/4 x 1.25

$4.99

$

In Stock, Qty 15

0

18

MTD 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

19

MTD 711-0379

Shoulder Spacer, .635 x .620

$

$

Not available

20

MTD 710-0607

Self-tapping Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

21

MTD 736-0504

Wave Washer, .510 x .75 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

22

MTD 738-0108

Shoulder Screw, .498 x 1.45
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

23

MTD 734-1268

Wheel w/ Ball Bearing, 8 x 1.75

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1781

Wheel w/ Plastic Bearing, 8 x 1.75

$32.99

$

In Stock, Qty 7

0

24

MTD 736-0105

Spring Washer, .401 x .871 x .063

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

26

MTD 736-0452

Bell Washer, .396 x 1.14 x .095

$4.99

$

In Stock, Qty 5

0

27

MTD 710-0793

Round Head Bolt, 3/8-24 x .89

$

$

Not available

28

MTD 781-1069

Front Axle Arm

Variations

MTD 781-1069-0637

No Longer Available AXLE ARM - POWDER BLACK (0637)

$

$

Not available

MTD 781-1069-0638

No Longer Available AXLE ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 726-0221

Cap Speed Nut, 1/2

$6.49

$

In Stock, only 2 left!

0

30

MTD 734-1264

Wheel w/ Ball Bearing, 7 x 1.75

$55.99

$

Usually ships in 3-6 days

0

MTD 734-1797

Wheel w/ Plastic Bearing, 7 x 1.75

$

$

Not available

31

MTD 714-0101

Internal Cotter Pin, .08 x 1.42

$4.99

$

In Stock, only 2 left!

0

32

MTD 738-1176

Front Axle, .50 x 7.98

$

$

Currently unavailable

33

MTD 710-0654A

Self-tapping Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

34

MTD 714-0104

Internal Cotter Pin, .072 x 1.0

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 1 left!

0

36

MTD 736-3050

Flat Washer, .406 x .810 x .051

$4.49

$

In Stock, Qty 16

0

37

MTD 711-0392

Adjustment Ferrule

$13.99

$

Usually ships in 3-6 days

0

38

MTD 712-0266

Center Lock Nut, 3/8-24
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 732-0552

Curb Adjustment Lever Assembly
(Superseded to 932-0552)

$

$

Not available

40

MTD 749-0941

Support Strut, 15.91
(Superseded to 749-0941-0637)

Variations

MTD 749-0941-0637

STRUT - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 781-0075

Spindle Extension Arm
(Superseded to 781-0075-0637)

Variations

MTD 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 738-0258

Shoulder Screw, .498 x .250
(Superseded to 938-0258)

$

$

Not available

43

MTD 736-0255

Bell Washer, .51 x 1.14 x .040

$4.99

$

In Stock, only 3 left!

0

44

MTD 736-0272

Flat Washer, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

45

MTD 750-0535

Spacer, .376 x .625 x .22
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0798

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

48

MTD 781-0100

Curb Height Adjustment Plate

Variations

MTD 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

49

MTD 720-0241

Wing Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

50

MTD 736-0451

Saddle Washer, .320 x .93

$4.49

$

In Stock, Qty 7

0

51

MTD 710-1174

Carriage Bolt 5/16-18 x .75

$7.49

$

In Stock, Qty 20+

0

52

MTD 749-0666

Blade Clutch/Depth Control Lever
(Superseded to 749-0666-0637)

Variations

MTD 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

53

MTD 736-0271

Spring Washer, .317 x .625 x .099
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

54

MTD 710-3103

Hex Cap Screw, 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

55

MTD 749-0937

Lower Handle
(Superseded to 749-0937-0637)

Variations

MTD 749-0937-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 749-0936A

Upper Handle (Loop Style)

$

$

Not available

57

MTD 781-0081

Depth Adjustment Bracket

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

58

MTD 732-0369

Compression Spring, .55 x 1.37
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

59

MTD 736-0204

Flat Washer, .344 x .62 x .030

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-0158

Hex Lock Nut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

61

MTD 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

62

MTD 747-1164

Clutch Rod, 3/8 x 33.5

$

$

Not available

63

MTD 681-0044

Edger Base

Variations

MTD 681-0044-0637

BASE ASSY - POWDER BLACK (0637)

$

$

Not available

MTD 681-0044-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0044-0650

BASE ASSY - RED METALLIC (0650)

$

$

Not available

MTD 681-0044-0662

BASE ASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0044-0716

No Longer Available BASE ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

64

MTD 720-0297

Foam Grip (Loop Handle), 20

$

$

Not available

65

MTD 781-0091A

Upper Handle Support Plate

Variations

MTD 781-0091A-0637

No Longer Available PLATE-HAND - POWDER BLACK (0637)

$

$

Not available

MTD 781-0091A-0638

No Longer Available PLATE-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

66

MTD 749-0938

Upper Handle (T-Style)

Variations

MTD 749-0938-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$
