25A-551B401 - Yard-Man Edger (2003) Wheel Assembly Parts Diagram

Edger

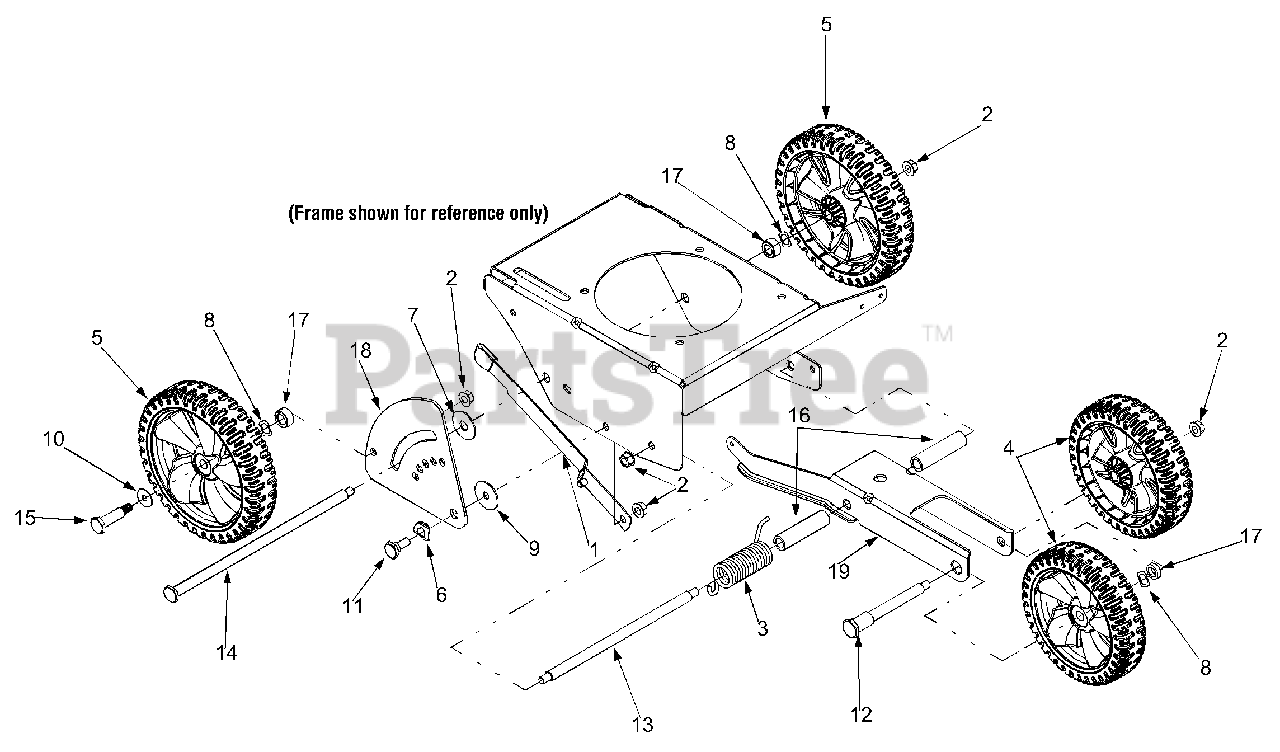

Wheel Assembly Parts Diagram

  • Title

1

MTD 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

2

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

3

MTD 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

4

MTD 734-1264

Wheel 7 x 1.75

$55.99

$

Usually ships in 3-6 days

0

5

MTD 734-1268

Wheel 8 x 1.75

$71.99

$

Usually ships in 3-6 days

0

6

MTD 736-0182

Spring Washer,.500 x 1.00

$4.49

$

In Stock, Qty 7

0

7

MTD 736-0208

Flat Washer,.51 ID x 1.5 OD

$4.49

$

In Stock, Qty 9

0

8

MTD 736-0232

Wave Washer,.531 ID x.781 OD

$4.99

$

In Stock, Qty 12

0

9

MTD 736-0234

Washer,.385 x 1.5

$6.49

$

Usually ships in 3-6 days

0

10

MTD 736-0326

Flat Washer,.510 x 1.00

$4.49

$

In Stock, only 4 left!

0

11

MTD 738-0380

Shoulder Screw,.50 x.27

$7.99

$

In Stock, only 1 left!

0

12

MTD 738-04036

Shoulder Screw,.50 x 4.62
(Superseded to 938-04036)

$

$

Not available

13

MTD 738-04037

Shoulder Screw,.50 x 9.36, 3/8-16

$45.99

$

Usually ships in 3-6 days

0

14

MTD 738-04041

Shoulder Screw,.50 x 11.61

$

$

Not available

15

MTD 738-0527

Shoulder Screw,.498 x 2.045

$8.49

$

In Stock, Qty 5

0

16

MTD 750-04129

Spacer,.525 x.688

$4.99

$

Usually ships in 3-6 days

0

17

MTD 750-0664

Spacer,.505 ID x.88 OD

$6.99

$

In Stock, only 2 left!

0

18

MTD 781-0100

Curb Height Adjuster Plate

Variations

MTD 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

19

MTD 787-01074

Wheel Bracket
(Superseded to 787-01074-0637)

Variations

MTD 787-01074-0637

BRACKET-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$
