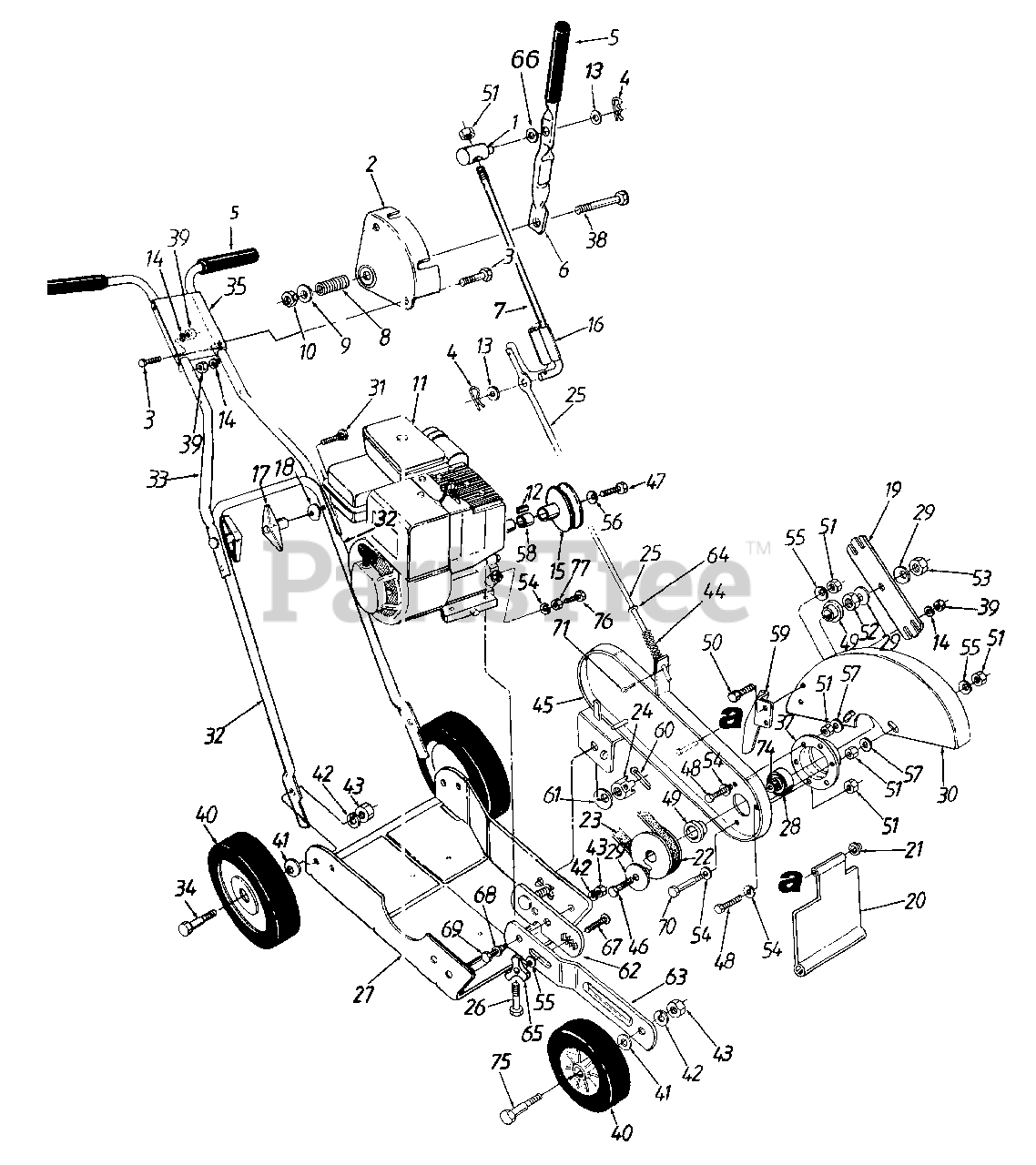

Edger Parts Diagram

  • Title

1

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

2

MTD 781-0583

Spindle Adj. Brkt.

Variations

MTD 781-0583-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

4

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

5

MTD 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

6

MTD 749-0666

Engagement Handle
(Superseded to 749-0666-0637)

Variations

MTD 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

MTD 747-0907

Upper Clutch Rod

$

$

Not available

8

MTD 732-0369

Compression Spring 1.38" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 736-0264

Fl-Wash. .344" I.D.

$6.99

$

In Stock, only 2 left!

0

10

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

11

Engine

$

$

Not available

12

MTD 714-0105

Sq. Key 3/16" x 1" Lg.
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

13

MTD 736-0264

Fl-Wash. .344" I.D.

$6.99

$

In Stock, only 2 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

MTD 756-0327B

Engine Pulley

$

$

Not available

16

MTD 750-0963

Clutch Rod Lock
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

17

MTD 720-0241

Wing Nut Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

18

MTD 736-0451

Saddle Wash. .32" I.D. x .937" O.D.

$4.49

$

In Stock, Qty 11

0

19

MTD 781-0080

Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

20

MTD 731-1518

Edger Guide Flap

$

$

Not available

21

MTD 726-0111

Push Cap

$

$

Not available

22

MTD 756-0449

3/8" "V"-Pulley
(Superseded to 956-0449)

Note: (2 Req'd.)

$14.99

$

In Stock, only 2 left!

0

23

MTD 754-0142

"V"-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

24

MTD 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

25

MTD 747-0906

Lower Clutch Rod

$

$

Not available

26

MTD 710-0654A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 781-0581

Edger Base

Variations

MTD 781-0581-0637

No Longer Available BASE-EDGER - POWDER BLACK (0637)

$

$

Not available

MTD 781-0581-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0581-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 781-0581-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

28

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

29

MTD 736-0317

Bell-Wash. 5/8" I.D. x 1-1/4" O.D.

$7.99

$

In Stock, Qty 20+

0

30

MTD 14341A

Blade Guard

Variations

MTD 14341A-0637

No Longer Available GUARD-BLAD - POWDER BLACK (0637)

$

$

Not available

MTD 14341A-0638

No Longer Available GUARD-BLAD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

32

MTD 749-0937

Lower Handle
(Superseded to 749-0937-0637)

Variations

MTD 749-0937-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 749-0938

Upper Handle (546)

Variations

MTD 749-0938-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 738-0414

Shld. Bolt 3/8-16 Thd.

$

$

Not available

35

MTD 781-0091A

Handle Support Plate (546)

Variations

MTD 781-0091A-0637

No Longer Available PLATE-HAND - POWDER BLACK (0637)

$

$

Not available

MTD 781-0091A-0638

No Longer Available PLATE-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

37

MTD 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

38

MTD 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

MTD 734-1779

Wheel Ass'y.
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

41

MTD 736-0105

Bell-Wash 38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

44

MTD 732-0330

Comp. Spring 2" Lg.
(Superseded to 932-0330)

$

$

Not available

45

MTD 681-0049

Spindle Brkt. Ass'y.

Variations

MTD 681-0049-0637

No Longer Available BRACKET-SP - POWDER BLACK (0637)

$

$

Not available

MTD 681-0049-0638

No Longer Available BRACKET-SP - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

46

MTD 710-0298

Hex Bolt 5/8-18 x 3.5" Lg.

$9.99

$

In Stock, only 2 left!

0

47

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

48

MTD 710-0528

Hex Cap Bolt 5/16-18 x 1-1/4" Lg.

$4.49

$

In Stock, Qty 19

0

49

MTD 711-1018

Shld. Spacer .626" I.D.

$

$

Not available

50

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

53

MTD 712-0413

Hex Ins. L-Nut 5/8-18 Thd.

$6.49

$

In Stock, only 1 left!

0

54

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0452

Bell-Wash. .396" I.D. x 1.14" O.D.

$4.99

$

In Stock, Qty 5

0

57

MTD 736-3008

Fl-Wash. .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 750-0345

Spacer .748" I.D. x .985" O.D.

$

$

Not available

59

MTD 781-0585

Edger Guide

Variations

MTD 781-0585-0637

No Longer Available GUIDE-EDGE - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0255

Bell-Wash. .515" I.D. x 1.14" O.D.

$4.99

$

In Stock, only 3 left!

0

62

MTD 681-0045

Wheel Pivot Support Brkt. Ass'y.

Variations

MTD 681-0045-0637

No Longer Available BRACKET-WH - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 781-0582

Wheel Adjuster Brkt.

Variations

MTD 781-0582-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0582-0638

No Longer Available BRACKET-WH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

64

MTD 736-3050

Fl-Wash. .406" I.D. x .81" O.D.

$4.49

$

In Stock, Qty 16

0

65

MTD 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

66

MTD 736-0271

Spring Wash. .32" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

67

MTD 710-1236

Carr. Bolt 5/16-18 x 1" Lg.

Note: (Special)

$6.99

$

In Stock, only 4 left!

0

68

MTD 750-0736

Spacer .383" I.D. x .503" O.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

69

MTD 710-0253

Hex Bolt 318-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

70

MTD 738-0413

Shld. Bolt 5/16-18 x 1.27" Lg.

$

$

Not available

71

MTD 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 2 left!

0

?73

MTD 720-0280

Foam Grip

Note: (Optional)

$

$

Not available

74

MTD 736-0366

Fl-Wash. .64" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 738-0533

Shld. Bolt .498" Dia. x 1.64" Lg.

$7.99

$

Usually ships in 3-6 days

0

76

MTD 710-1195

Hex Bolt 5/16-24 x 2.75" Lg. (Gr. 5)

$

$

Not available

77

MTD 712-0123

Hex Nut 5/16-24 Thd."
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0
