25A-532A352 - Yard Machines Walk-Behind Edger (2000) (Walmart) Drive & Blade Parts Diagram

Walk-Behind Edger

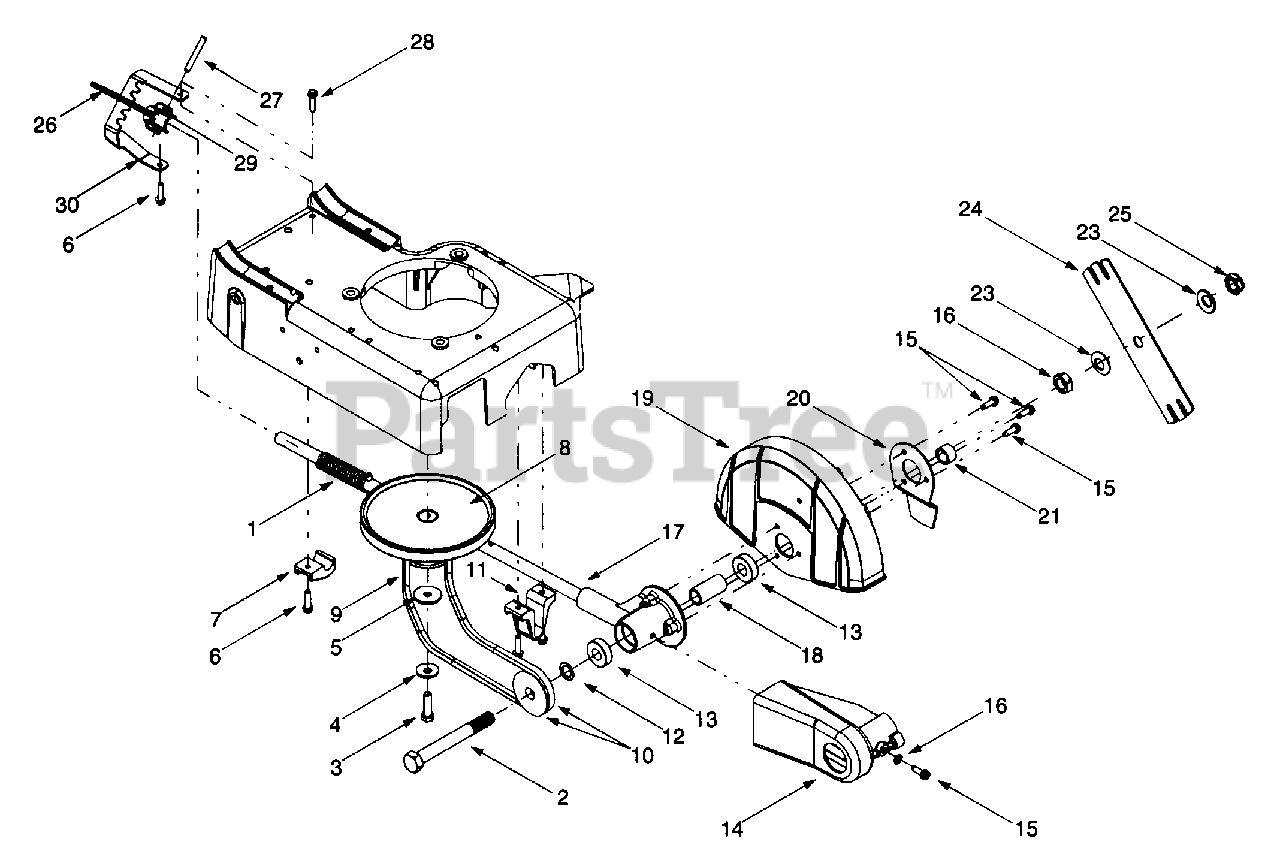

Drive & Blade Parts Diagram

  • Title

1

MTD 732-0862

Compression Spring

$

$

Not available

2

MTD 710-1267

Hex Cap Screw, 5/8-18 x 5.25

$

$

Not available

3

MTD 710-0191

Hex Cap Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

4

MTD 736-0452

Bell Washer, .396 x 1.14 x .095

$4.99

$

In Stock, Qty 7

0

5

MTD 736-0320

Flat Washer, .38 x 1.38 x .12

$6.99

$

In Stock, Qty 7

0

6

MTD 710-1241

Hi-Lo Tap Screw, 1/4-15 x 1.0

$6.99

$

In Stock, Qty 19

0

7

MTD 731-1930

Rear Rod Holder

$

$

Not available

8

MTD 756-1150A

Flywheel/Pulley Combination

$163.99

$

Usually ships in 3-6 days

0

9

MTD 754-0343

V-belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

10

MTD 756-0449

Sheave, .6255 x .6295
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

11

MTD 731-1929

Front Rod Holder

$

$

Not available

12

MTD 736-0116

Flat Washer, .635 x .93 x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

13

MTD 741-0155

Ball Bearing, .62 x 1.38 x .44
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

14

MTD 731-1939

Belt Guard

$

$

Not available

15

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0142

Flat Washer, .281 x .50 x .063

$4.99

$

In Stock, only 4 left!

0

17

MTD 719-0387A

Spindle Bearing Housing w/Insert

$

$

Currently unavailable

18

MTD 750-1158

Spacer, .628 x .875 x 1.818

$

$

Not available

19

MTD 731-1942

Blade Guard

$

$

Not available

20

MTD 781-0740

Blade Guide

Variations

MTD 781-0740-0637

No Longer Available GUIDE BLAD - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 750-1163

Spacer, .628 x .875 x .545

$

$

Not available

?22

MTD 712-0318

Jam Nut, 5/18-18

$3.49

$

In Stock, Qty 13

0

23

MTD 736-0317

Bell Washer, .64 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

24

MTD 781-0080

Standard Edger Blade, 9"
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

25

MTD 712-0413

Nylon Lock Jam Nut, 5/8-18

$6.49

$

In Stock, only 1 left!

0

26

MTD 681-0139

Angle Adjustment Lever Ass'y

$

$

Not available

27

MTD 715-0121

Spirol Pin, 1/4-20

$6.99

$

In Stock, Qty 8

0

28

MTD 715-0143

Spirol Spring Pin, 1/4

$4.99

$

In Stock, Qty 15

0

29

MTD 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 10

0

30

MTD 781-0749

Tilt Index Bracket

$

$

Not available
