25A-520A700 - Yard Machines Walk-Behind Edger (2004) Wheel Assembly Parts Diagram

Walk-Behind Edger

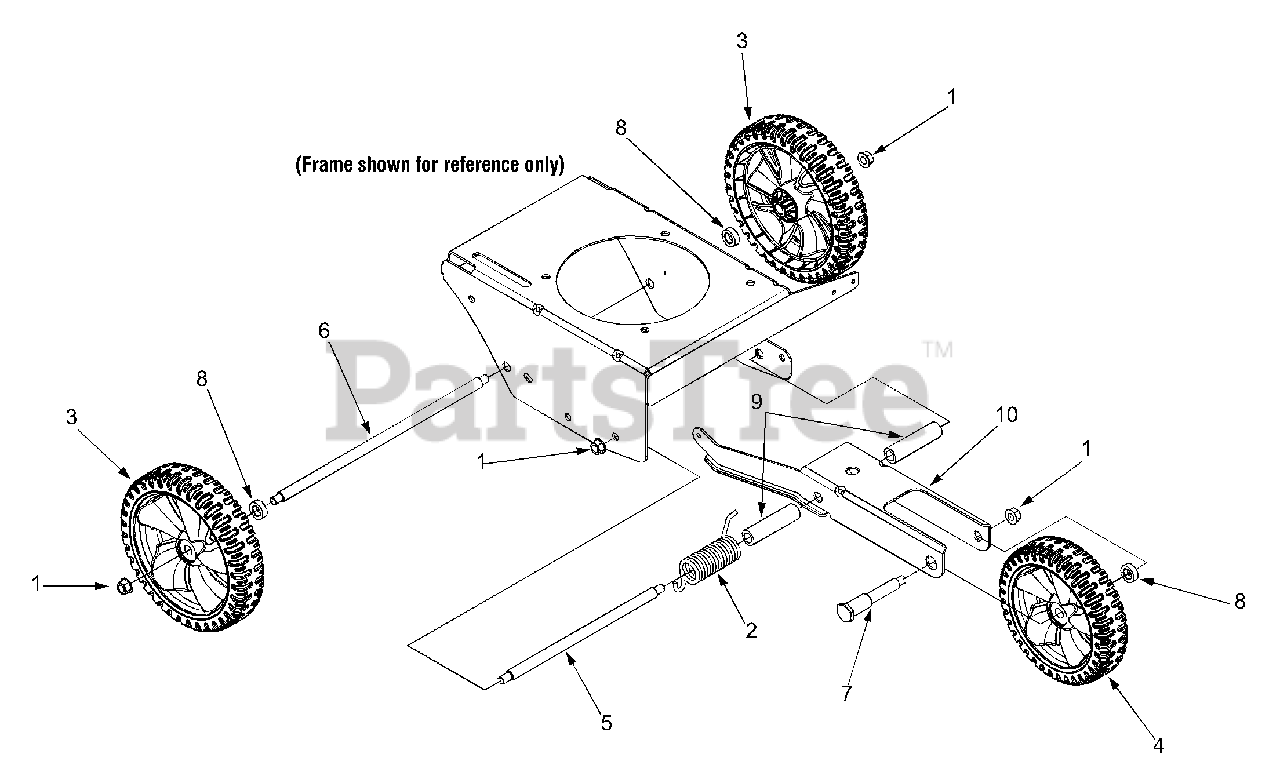

Wheel Assembly Parts Diagram

  • Title
1

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

MTD 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

3

MTD 734-1987

Wheel 8x1.8

$23.99

$

In Stock, Qty 5

0

4

MTD 734-1988

Wheel 7x1.8

$20.99

$

In Stock, only 4 left!

0

5

MTD 738-04037

Shoulder Screw,.50 x 9.36, 3/8-16

$45.99

$

Usually ships in 3-6 days

0

6

MTD 738-04038

Shoulder Screw,.50 x 12.90, 3/8-16

$

$

Currently unavailable

7

MTD 738-04039

Shoulder Screw,.50 x 3.19, 3/8-16

$

$

Not available

8

MTD 750-0289

Spacer,.510 ID x.875 OD

$

$

Not available

9

MTD 750-04129

Spacer,.525 x.775

$4.99

$

Usually ships in 3-6 days

0

10

MTD 787-01074

Wheel Bracket
(Superseded to 787-01074-0637)

Variations

MTD 787-01074-0637

BRACKET-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$
