25A-520A700 - Yard Machines Walk-Behind Edger (2004) Spindle Assembly Parts Diagram

Walk-Behind Edger

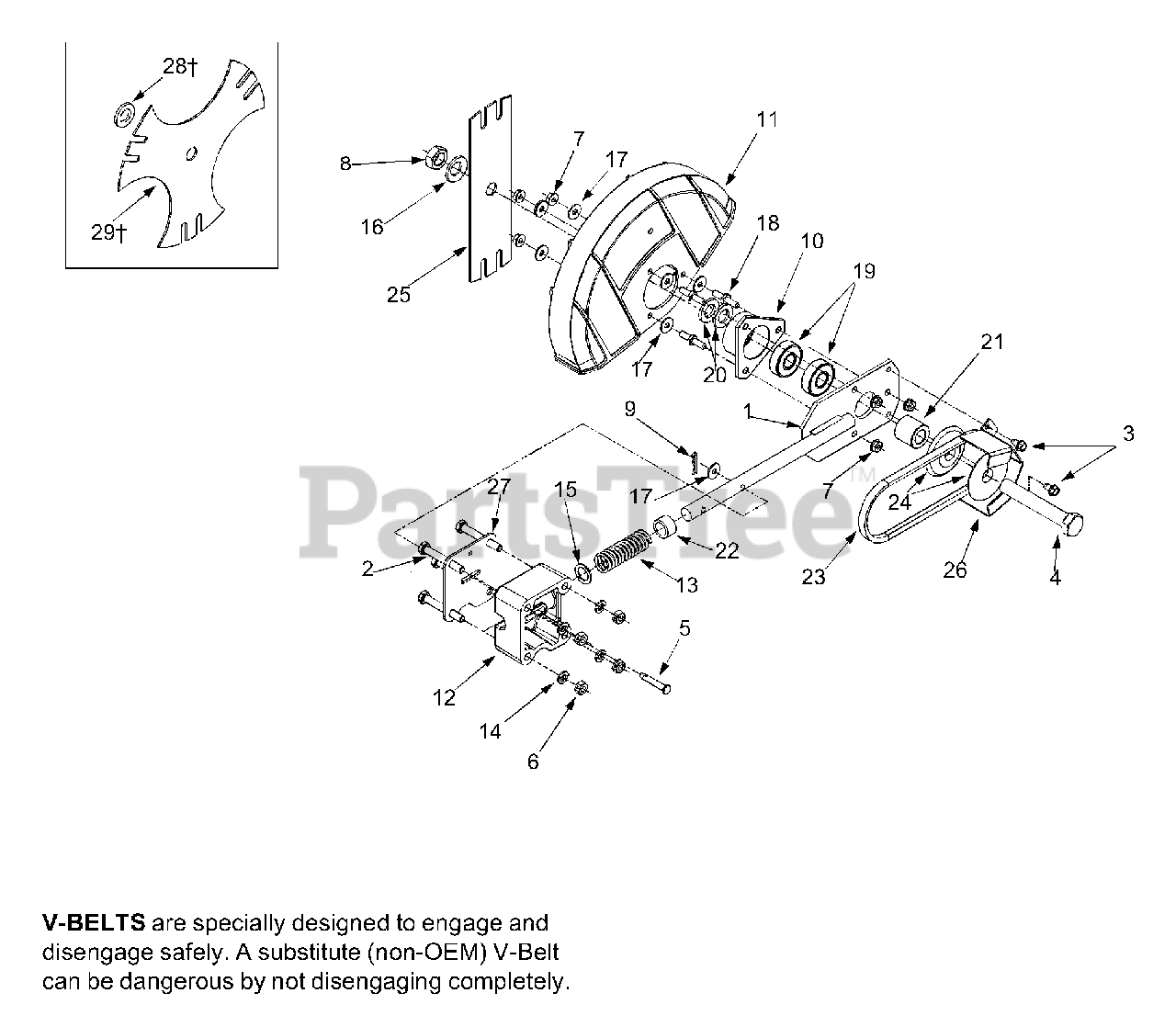

Spindle Assembly Parts Diagram

  • Title

1

MTD 687-02019

Blade Plate Assembly
(Superseded to 753-05727)

$

$

Not available

2

MTD 710-0395

Hex Screw, 5/16-18

$4.99

$

In Stock, only 1 left!

0

3

MTD 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

5

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

6

MTD 712-3004A

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

8

MTD 712-3056

Jam Nut, 5/8-18

$4.99

$

In Stock, Qty 13

0

9

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

10

MTD 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

11

MTD 731-04158

Blade Guard
(Superseded to 753-05727)

$

$

Not available

12

MTD 731-04207

Bearing Block
(Superseded to 931-04207)

$27.99

$

In Stock, only 1 left!

0

13

MTD 732-04169

Compression Spring
(Superseded to 932-04169)

$10.99

$

In Stock, only 1 left!

0

14

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0317

Bell Washer,.63 ID x 1.2 OD

$7.99

$

In Stock, Qty 20+

0

17

MTD 736-3090

Flat Washer,.260 x.72

$6.99

$

In Stock, Qty 11

0

18

MTD 738-04025

Pin, 1/4-20
(Superseded to 938-04025)

$

$

Not available

19

MTD 741-0524

Bearing,.625 ID x 1.57 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

20

MTD 736-04088

Flat Washer

$4.49

$

In Stock, only 2 left!

0

21

MTD 750-04105

Spacer,.63 x 1.12 x 1.06
(Superseded to 950-04105)

$15.99

$

Usually ships in 3-6 days

0

22

MTD 750-0547

Spacer,.632 ID x.875 OD

$5.99

$

In Stock, only 2 left!

0

23

MTD 754-04032

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 17

0

24

MTD 756-0449

Sheave
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

25

MTD 781-0080

Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

26

MTD 781-0427

Belt Guard
(Superseded to 781-0427-0637)

Variations

MTD 781-0427-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

27

MTD 787-01075

Cover Plate
(Superseded to 787-01075A-0637)

Variations

MTD 787-01075-0637

PLATE-COVER - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

28

MTD 736-04088

Flat Washer

Note: If so equipped

$4.49

$

In Stock, only 2 left!

0

29

MTD 781-0748

Tri Star Blade

Note: If so equipped

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0
