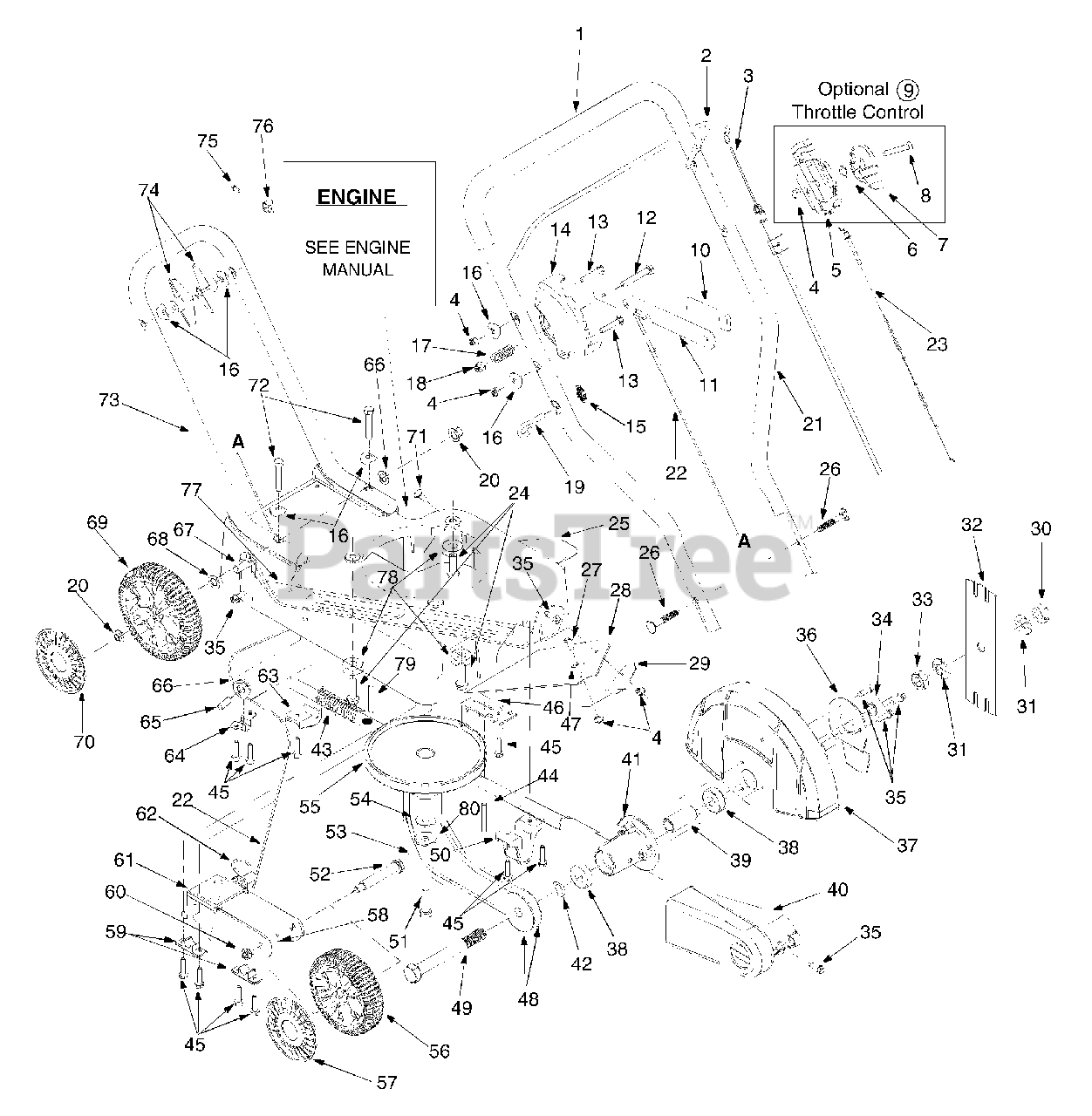

25A-510A000 - Yard Machines Walk-Behind Edger (1998) General Assembly Parts Diagram

Walk-Behind Edger

General Assembly Parts Diagram

  • Title

1

MTD 720-0297

Foam Grip

Note: (Optional)

$

$

Not available

2

MTD 747-0976

Blade Control Handle
(Superseded to 747-0976B)

Variations

MTD 747-0976-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

3

MTD 746-0966

Control Cable 44" B&S

$

$

Not available

MTD 746-1078

Control Cable 43" Tec.

$

$

Not available

MTD 746-0971

Control Cable 44" Tec.

Note: (Const. Spd. Eng.)

$

$

Not available

MTD 746-0965

Control Cable 34" B&S
(Superseded to 946-0965)

Note: (Const. Spd Eng.)

$

$

Not available

4

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

MTD 646-0875

Throttle Hsg.
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

6

MTD 736-0501

Cur. Wash. .663" I.D. x .980" O.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

7

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

8

MTD 710-0605

Screw Oval C-Sunk 1/4-20 x 1.81" Lg.

$4.49

$

In Stock, only 2 left!

0

9

MTD 811-00185

Throttle Comp.
(Superseded to 811-0185)

Note: (Inc. Ref. 4,5,6,7,8)

$36.99

$

In Stock, only 1 left!

0

10

MTD 720-0142

Depth Lever Grip

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

11

MTD 781-0742

Depth Lever
(Superseded to 781-0742-0637)

Variations

MTD 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

12

MTD 710-0116

Hex Screw 5/16-18 x 2.0" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

14

MTD 781-0741

Depth Bracket

$

$

Not available

15

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0451

Washer .320 I.D. x .93 O.D.

$4.49

$

In Stock, Qty 11

0

17

MTD 732-0369

Compression Spring .550" O.D. x 1.3" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

18

MTD 712-0429

Hex Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-1205

Eye Bolt 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

20

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

21

MTD 749-1079

Upper Handle
(Superseded to 749-1079-0637)

Variations

MTD 749-1079-0637

HANDLE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 746-0955

Depth Cable

$

$

Not available

23

MTD 746-0845

Throttle Cable
(Superseded to 946-1115)

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

24

MTD 710-0502A

Tapp Screw w/Hex LWsh 3/8-16 Thd.

$6.99

$

In Stock, only 2 left!

0

25

MTD 631-0079

Edger Base Ass'y

$

$

Not available

26

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

In Stock, Qty 20+

0

27

MTD 710-3013

Hex Screw 1/4-20 x .50" Lg.

$4.99

$

In Stock, Qty 11

0

28

MTD 731-1935

Discharge Shield Deflector

$

$

Not available

29

MTD 781-0746

Deflector Keeper

$

$

Not available

30

MTD 712-0413

Hex Jam Nut 5/8-18 Thd.

$6.49

$

In Stock, only 1 left!

0

31

MTD 736-0317

Bell Wash. .63" I.D. x 1.25" O.D. x .18"

$7.99

$

In Stock, Qty 20+

0

32

MTD 781-0080

Standard Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

MTD 781-0713

Cross-Cut Blade

Note: (Optional)

$

$

Not available

MTD 781-0748

Tri-Cut Blade

Note: (Optional)

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

33

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

34

MTD 750-1163

Spacer .628" I.D. x .875" O.D. x .545" Lg.

$

$

Not available

35

MTD 710-0642

Hex Scr. w/Wash.: TT: 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 781-0740

Blade Guide

Variations

MTD 781-0740-0637

No Longer Available GUIDE BLAD - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 731-1942

Blade Guard

$

$

Not available

38

MTD 741-0155

Bearing Ass'y .62" I.D. x 1.38" O.D. x .4"
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

39

MTD 750-1158

Spacer .628" I.D. x .875" O.D. x 1.818 Lg.

$

$

Not available

40

MTD 731-1939

Belt Guard

$

$

Not available

41

MTD 719-0387

Spindle w/Insert

$

$

Currently unavailable

42

MTD 736-0116

Flat Washer .635" I.D. x .93" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

43

MTD 732-0862

Compression Spring: Arbor

$

$

Not available

44

MTD 715-0121

Pin 1/4-2.0" Lg.

$6.99

$

In Stock, Qty 8

0

45

MTD 710-1241

Hex Screw w/Wash 1/4

$6.99

$

In Stock, Qty 18

0

46

MTD 781-0750A

Spindle Bracket

$

$

Not available

47

MTD 736-0342

Flat Washer .283" I.D. x .75" O.D. x .030"

$7.49

$

Usually ships in 3-6 days

0

48

MTD 756-0449

Pulley
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

49

MTD 710-1627

Hex Bolt 5/8-18 x 5.25" Lg.

$

$

Not available

50

MTD 731-1929

Front Rod Handler

$

$

Not available

51

MTD 710-0191

Hex Screw: 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

52

MTD 738-0481

Shoulder Screw 3/8-16:.50 x 2.62" Lg.
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

53

MTD 754-0142

V-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

54

MTD 736-0452

Bell Wash. .396" I.D. x 1.14" O.D. x .095"

$4.99

$

In Stock, Qty 5

0

55

MTD 756-1150

Engine Pulley
(Superseded to 756-1150A)

$163.99

$

Usually ships in 3-6 days

0

56

MTD 734-1779

Wheel 7 x 1.5" Diamond White
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

MTD 734-1840

Wheel 7 x 1.7" Aero Gray

Note: (Optional)

$

$

Not available

MTD 734-1843

Wheel 7 x 1.7" Slot Green

Note: (Optional)

$

$

Not available

MTD 734-1869

Wheel 7 x 2.0" Link w/BB

Note: (Optional)

$

$

Not available

MTD 741-0484

Bearing (2 per wheel)
(Superseded to 941-0484)

Note: N/I (Optional)

$7.49

$

In Stock, only 1 left!

0

57

MTD 731-1886

Hubcap: Spoke w/Hole Yellow

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

MTD 731-1887

Hubcap: Spoke w/Hole Gray

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

MTD 731-1888

Hubcap: Spoke w/Hole Beige

Note: (Optional)

$10.99

$

In Stock, Qty 20+

0

58

MTD 750-1178

Spacer .520" I.D. x .860" Lg.

$

$

Not available

59

MTD 731-1931

Black Bushing .515 Dia x .62

$

$

Not available

60

MTD 712-3020

Jam Lock Nut 3/8-16 Thd.
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

61

MTD 681-0141

Front Wheel Brkt Ass'y.

$

$

Not available

62

MTD 732-0867

Torsion Spring

$

$

Not available

63

MTD 731-1930

Rear Rod Handler

$

$

Not available

64

MTD 781-0747

Cable Keeper

Variations

MTD 781-0747-0637

No Longer Available KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 747-0993

Idler Rod

$

$

Not available

66

MTD 756-0625

Cable Roller Pulley

$9.49

$

In Stock, Qty 14

0

67

MTD 711-1269

Axle

$

$

Not available

68

MTD 736-3068

Flat Wash. .531" I.D. x .875" O.D. x .06"

$6.99

$

In Stock, only 2 left!

0

69

MTD 734-1780

Wheel 8 x 1.75" Diamond White
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

MTD 734-1841

Wheel 8 x 1.7" Aero Gray
(Superseded to 934-1841)

Note: (Optional)

$

$

Not available

MTD 734-1844

Wheel 8 x 1.7" Slot Green

Note: (Optional)

$

$

Not available

MTD 734-1819

Wheel 8 x 2.0" Link Gray w/BB
(Superseded to 734-1978)

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

MTD 734-1818

Wheel 8 x 2.0" Link Yellow w/BB
(Superseded to 734-1978)

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

MTD 734-1820

Wheel 8 x 2.0" Link Beige w/BB
(Superseded to 734-1978)

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

Note: (2 per wheel) (Optional)

$7.49

$

In Stock, only 1 left!

0

70

MTD 731-1426

Hubcap: Radial Spoke Yellow
(Superseded to 731-1426B)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

MTD 731-0982A

Hubcap: Radial Spoke Beige
(Superseded to 731-0982C)

Note: (Optional)

$11.99

$

In Stock, Qty 18

0

MTD 731-0981A

Hubcap: Radial Spoke Grey
(Superseded to 731-0981C)

Note: (Optional)

$10.99

$

In Stock, only 2 left!

0

71

MTD 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 11

0

73

MTD 749-1078

Lower Handle

Variations

MTD 749-1078-0637

No Longer Available HANDLE LOW - POWDER BLACK (0637)

$

$

Not available

$

$

74

MTD 720-0241

Wing Knob Nut 5/16-18 Thd.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

75

MTD 710-1237

Hex Screw w/Wash.:T: #10-32 x .625"

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Screw #10-32 x .38

$

$

Not available

76

MTD 751B213146

Clamp B&S Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Clamp Tec. Throttle
(Superseded to TC-27793)

$1.99

$

In Stock, only 2 left!

0

77

MTD 781-0758

Base Support

Variations

MTD 781-0758-0637

No Longer Available SUPPORT ED - POWDER BLACK (0637)

$

$

Not available

$

$

78

MTD 736-0258

Flat Washer .385" x 1.0 x .135"

$4.49

$

Usually ships in 3-6 days

0

79

MTD 715-0143

Roll Pin

$4.99

$

In Stock, Qty 15

0

80

MTD 736-0320

Flat Washer .38 I.D. x 1.38 O.D. x .125

$6.99

$

In Stock, Qty 7

0
