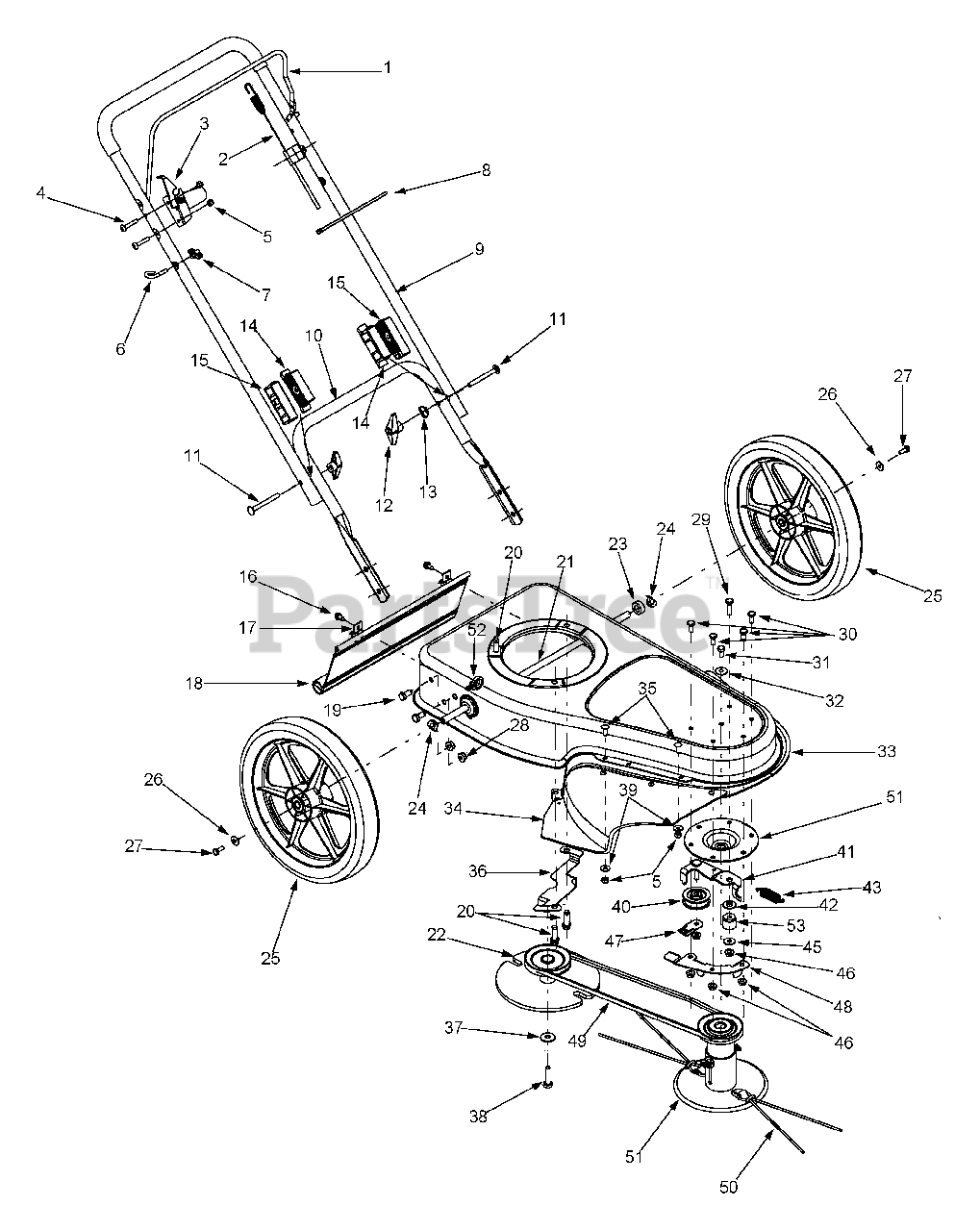

25A-258J766 - Troy-Bilt Walk-Behind Trimmer (2005) General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

Troy-Bilt 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 746-1116A

Engagement Cable
(Superseded to 946-1116A)

$39.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 681-0166

Control Lock Bracket
(Superseded to 981-0166)

$

$

Not available

4

Troy-Bilt 710-0578

Machine Screw 1/4-20 x 1.50

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

6

Troy-Bilt 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 749-1255

Upper Handle
(Superseded to 749-1255-0637)

Variations

Troy-Bilt 749-1255-0637

HANDLE-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

10

Troy-Bilt 749-1254

Lower Handle
(Superseded to 749-1254-0637)

Variations

Troy-Bilt 749-1254-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

11

Troy-Bilt 710-0450

Carriage Screw 5/16-18 x 3.0

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 720-0284

Wing Nut

$6.99

$

In Stock, Qty 9

0

13

Troy-Bilt 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 7

0

14

MTD 731-1267

Lower Handle Connector

$

$

Not available

15

Troy-Bilt 731-1268

Upper Handle Connector

$16.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-1652

Hex Washer Screw 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 782-9065

Trail Shield Clip

$4.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 731-2329

Trail Shield

$26.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 710-0216

Hex Cap Screw 3/8-16 x.750

$4.49

$

In Stock, Qty 15

0

20

Troy-Bilt 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 681-0159

Trimmer Axle
(Superseded to 681P0159A)

$58.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 756-1223

Flywheel / Pulley Combination

$123.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 750-1240

Spacer.51 ID x 1.0 OD

$3.99

$

In Stock, Qty 12

0

24

Troy-Bilt 736-0182

Spacer Washer.501 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

25

MTD 734-2050

Wheel Assembly

$

$

Not available

26

Troy-Bilt 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-3015

Hex Cap Screw 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-04010

Screw 5/16-18 x 2.25

$5.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 710-1307

Screw 5/16-18 x.75

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-0237

Hex Cap Screw 5/16-24 x.625

$4.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 736-0425

Bell Washer.325 ID x.930 OD

$4.99

$

In Stock, Qty 13

0

33

Troy-Bilt 781-1005A

Trimmer Base
(Superseded to 681-0165B-0637)

Variations

Troy-Bilt 781-1005A-0638

DECK ASM: TRIMMER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

34

Troy-Bilt 631-0096

Trimmer Deflector Assembly

$105.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0703

Hex Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

36

MTD 781-1007

Belt Keeper Bracket Engine

Variations

Troy-Bilt 781-1007-0637

BRACKET-BELT KEEPE(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

37

Troy-Bilt 736-0452

Bell Washer.396 ID x 1.14 OD

$4.99

$

In Stock, Qty 5

0

38

Troy-Bilt 710-1044

Hex Cap Screw 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 756-1198

Idler Pulley

$53.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 681-0181A

Idler Bracket Assembly
(Superseded to 981-1008A)

$48.99

$

In Stock, Qty 6

0

42

Troy-Bilt 750-1275

Idler Spacer

$6.49

$

In Stock, Qty 7

0

43

Troy-Bilt 732-1166

Extension Spring.50 Dia x 1.88 Lg

$4.49

$

In Stock, Qty 5

0

45

Troy-Bilt 736-0371

Flat Washer

$4.49

$

In Stock, only 3 left!

0

46

Troy-Bilt 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 781-1028

Idler Keeper Bracket

Variations

Troy-Bilt 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, Qty 10

0

$7.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 781-1020

Belt Keeper Bracket Front

Variations

Troy-Bilt 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$28.99

$

In Stock, only 3 left!

0

$23.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 754-0625A

V-Belt
(Superseded to 954-0625A)

$28.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt OEM-743-0112

Trimmer Line.155 (incl. 10 pieces)

$13.99

$

In Stock, Qty 14

0

51

Troy-Bilt 618-0558

Spindle Assembly
(Superseded to 918-0558A)

$

$

Not available

Troy-Bilt 782-0143

Skid Assembly (for 618-0558) not shown
(Superseded to 982-0143A)

$36.99

$

In Stock, Qty 20+

0

Troy-Bilt 710-3013

Hex Screw 1/4-20 X .5 GR5 not shown

$4.99

$

In Stock, Qty 11

0

Troy-Bilt 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

52

Troy-Bilt 726-3055

Cable Retainer Clip

$6.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 748-0278

Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0
