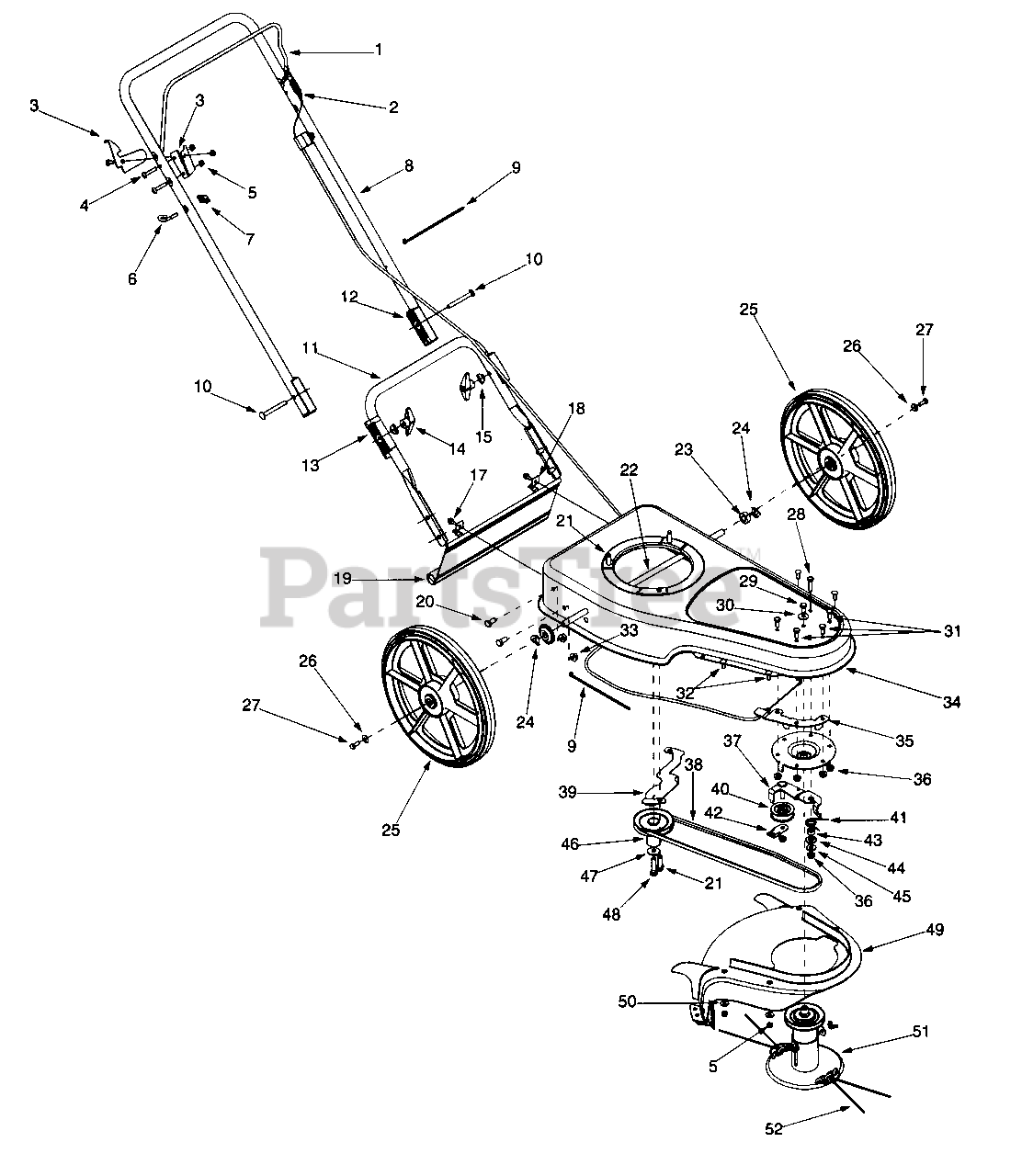

25A-253N401 - Yard-Man Walk-Behind Trimmer (2000) General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 746-1116

Clutch Cable
(Superseded to 946-1116A)

$39.99

$

In Stock, only 4 left!

0

3

MTD 681-0166

Control Lock Bracket
(Superseded to 981-0166)

$

$

Not available

4

MTD 710-0578

Machine Screw 1/4-20 x 1.50

$4.49

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

6

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

8

MTD 749-1255

Upper Handle
(Superseded to 749-1255-0637)

Variations

MTD 749-1255-0637

HANDLE-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0450

Carriage Screw 5/16-18 x 3.0

$6.49

$

Usually ships in 3-6 days

0

11

MTD 749-1254

Lower Handle
(Superseded to 749-1254-0637)

Variations

MTD 749-1254-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 731-1268

Upper Handle Connector

$16.99

$

Usually ships in 3-6 days

0

13

MTD 731-1267

Lower Handle Connector

$

$

Not available

14

MTD 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

15

MTD 736-0451

Shoulder Washer.320 ID x .93

$4.49

$

In Stock, Qty 7

0

17

MTD 710-0896

Hex Wash. Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 782-9065

Trail Shield Clip

$4.49

$

In Stock, only 3 left!

0

19

MTD 731-2329

Trail Shield

$26.99

$

In Stock, only 1 left!

0

20

MTD 710-0216

Hex Cap Screw 3/8-16 x .750

$4.49

$

In Stock, Qty 15

0

21

MTD 710-0502A

Hex Wash. Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

22

MTD 681-0159

Trimmer Axle
(Superseded to 681P0159A)

$58.99

$

Usually ships in 3-6 days

0

23

MTD 750-1240

Spacer .51 ID x 1.0 OD

$3.99

$

In Stock, Qty 12

0

24

MTD 736-0182

Spacer Washer .501 ID x 1.0

$4.49

$

In Stock, Qty 7

0

25

MTD 734-1860

Wheel Assembly
(Superseded to 734-1860A)

$

$

Not available

26

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

28

MTD 710-1694

Screw 5/16-18 x 1.25

$3.49

$

Usually ships in 3-6 days

0

29

MTD 710-0237

Hex Cap Screw 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

30

MTD 736-0425

Bell Washer .325 ID x .930 OD

$4.99

$

In Stock, Qty 13

0

31

MTD 710-1307

Screw 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

32

MTD 710-0703

Hex Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

34

MTD 681-0165

Trimmer Base Assembly

Variations

MTD 681-0165-0638

DECK ASM: TRIMMER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0165-0662

DECK ASM: TRIMMER - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0165-0665

DECK ASM: TRIMMER - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0165-0716

DECK ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

35

MTD 781-1020

Belt Keeper Bracket Front

Variations

MTD 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$28.99

$

In Stock, only 3 left!

0

$23.99

$

Usually ships in 3-6 days

0

36

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

MTD 681-0181

Idler Bracket Assembly
(Superseded to 981-1008A)

$48.99

$

In Stock, Qty 6

0

38

MTD 754-0489

V-Belt
(Superseded to 954-0625A)

$28.99

$

Usually ships in 3-6 days

0

39

MTD 781-1007

Belt Keeper Bracket Engine

Variations

MTD 781-1007-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 756-1198

Idler Pulley

$53.99

$

In Stock, only 2 left!

0

41

MTD 732-1007

Torsion Spring

$

$

Not available

42

MTD 781-1028

Idler Keeper Bracket

Variations

MTD 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, Qty 10

0

$7.99

$

Usually ships in 3-6 days

0

43

MTD 750-1277

Idler Spacer

$

$

Not available

44

MTD 750-1275

Idler Spacer

$6.49

$

In Stock, Qty 7

0

45

MTD 736-0371

Flat Washer

$4.49

$

In Stock, only 3 left!

0

46

MTD 756-1196

Engine Pulley
(Superseded to 756-1223)

$123.99

$

Usually ships in 3-6 days

0

47

MTD 736-0452

Bell Washer .396 ID x 1.14 OD

$4.99

$

In Stock, Qty 5

0

48

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

49

MTD 631-0099

Trimmer Deflector Assembly
(Superseded to 631-0096)

$105.99

$

Usually ships in 3-6 days

0

50

MTD 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, Qty 20+

0

51

MTD 618-0558

Spindle Assembly
(Superseded to 918-0558A)

$

$

Not available

52

MTD OEM-743-0111

Trimmer Line .130 Dia
(Superseded to OEM-743-0113)

$13.99

$

In Stock, Qty 12

0
