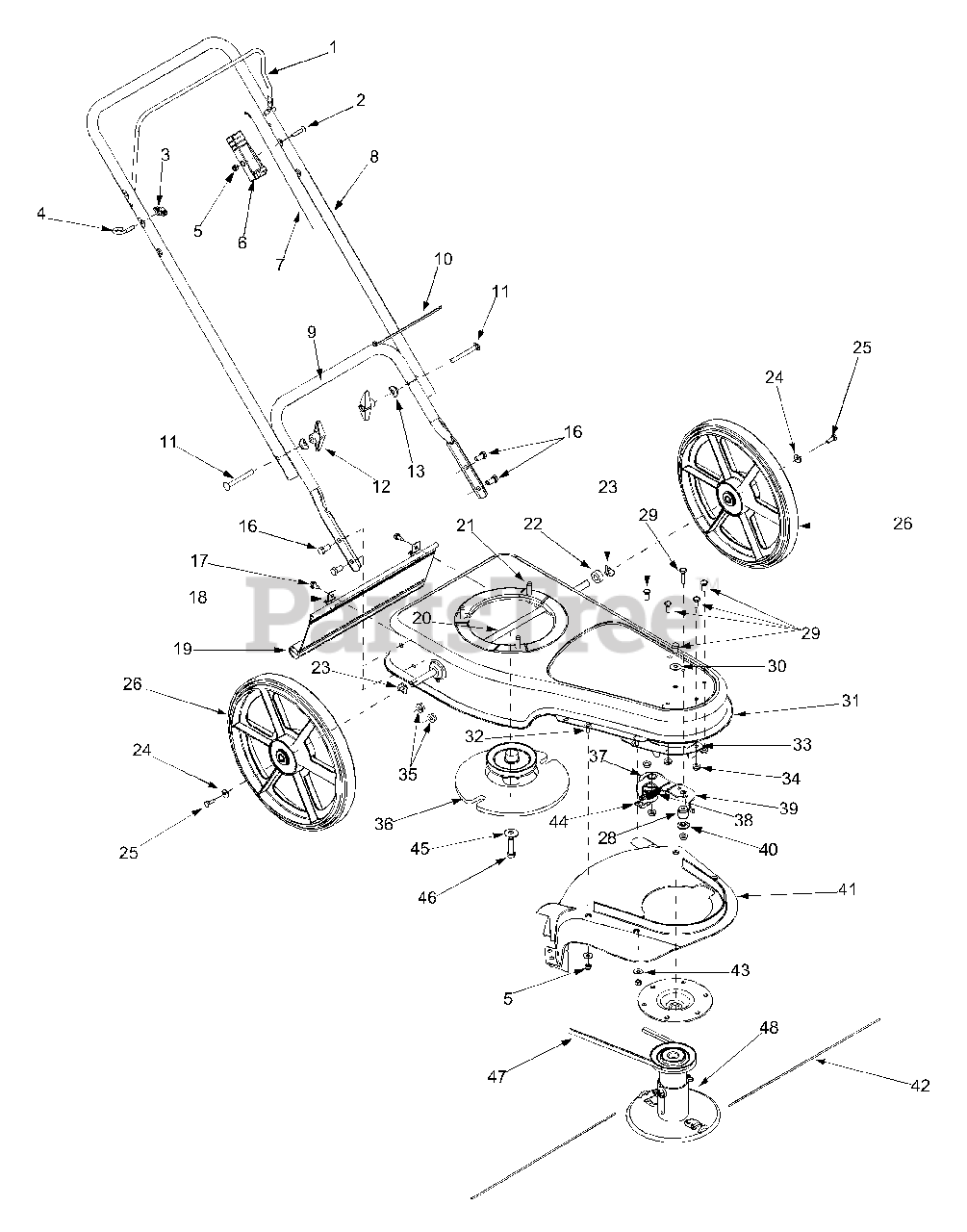

25A-203L729 - Yard Machines Walk-Behind Trimmer (2004) (Home Depot) General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 747-1287

Control Lever
(Superseded to 747-1287-0637)

Variations

MTD 747-1287-0637

LEVER-CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-1270

Oval C-Screw 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

6

MTD 746-0883

Throttle Housing

$16.99

$

In Stock, only 3 left!

0

7

MTD 746-0551

Throttle Cable
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

8

MTD 749-1403

Upper Handle
(Superseded to 749-1403-0637)

Variations

MTD 749-1403-0637

HANDLE-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 749-1254

Lower Handle
(Superseded to 749-1254-0637)

Variations

MTD 749-1254-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-1174

Carriage Screw 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Wing Nut 5/16-18

$6.99

$

In Stock, Qty 9

0

13

MTD 736-0451

Saddle Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 7

0

16

MTD 710-0216

Hex Cap Screw 3/8-16 x.750

$4.49

$

In Stock, Qty 15

0

17

MTD 710-1652

Hex Washer Screw 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

18

MTD 782-9065

Trail Shield Clip

$4.49

$

In Stock, only 3 left!

0

19

MTD 731-2329

Trail Shield

$26.99

$

In Stock, only 1 left!

0

20

MTD 681-0159

Axle Assembly
(Superseded to 681P0159A)

$58.99

$

Usually ships in 3-6 days

0

21

MTD 710-0502A

Hex Washer Screw 3/8-16 x.250

$6.99

$

In Stock, only 2 left!

0

22

MTD 750-1240

Spacer.51 ID x 1.00 OD x.38

$3.99

$

In Stock, Qty 12

0

23

MTD 736-0182

Spring Washer.50 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

24

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-3015

Hex Cap Screw 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

26

MTD 734-1864

Wheel 14 x 1.8 Bar Gray
(Superseded to 734-04030)

$76.99

$

In Stock, only 1 left!

0

27

MTD 723-0400

Safety Glasses (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

28

MTD 748-0278

P/M Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0

29

MTD 710-0237

Hex Cap Screw 5/16-24 x.625

$4.49

$

In Stock, only 1 left!

0

30

MTD 736-0425

Bell Washer.325 ID x.930 OD

$4.99

$

In Stock, Qty 13

0

31

MTD 681-0165A

Trimmer Base Assembly
(Superseded to 681-0165B-0637)

Variations

MTD 681-0165A-0638

DECK ASM: TRIMMER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0165A-0650

DECK ASM: TRIMMER - RED METALLIC (0650)

$

$

Not available

MTD 681-0165A-0662

DECK ASM: TRIMMER - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0165A-0665

DECK ASM: TRIMMER - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0165A-0716

DECK ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

32

MTD 710-0703

Hex Cap Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

33

MTD 781-1020

Belt Keeper Bracket

Variations

MTD 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$28.99

$

In Stock, only 3 left!

0

$23.99

$

Usually ships in 3-6 days

0

34

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

MTD 712-3005

Flange L-Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

36

MTD 756-1223

Flywheel Pulley

$123.99

$

Usually ships in 3-6 days

0

37

MTD 756-1198

Idler Pulley

$53.99

$

In Stock, only 2 left!

0

38

MTD 732-1022

Extension Spring.50 ID x 3.375

$4.99

$

In Stock, only 1 left!

0

39

MTD 681-0181A

Idler Bracket Assembly
(Superseded to 981-1008A)

$48.99

$

In Stock, Qty 6

0

40

MTD 750-1275

Idler Spacer

$6.49

$

In Stock, Qty 7

0

41

MTD 631-0099

Trimmer Deflector Assembly
(Superseded to 631-0096)

$105.99

$

Usually ships in 3-6 days

0

42

MTD OEM-743-0113

Trimmer Line.130 Dia

$13.99

$

In Stock, Qty 12

0

43

MTD 736-0173

Flat Washer.28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

44

MTD 781-1028

Idler Bracket Keeper

Variations

MTD 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, Qty 10

0

$7.99

$

Usually ships in 3-6 days

0

45

MTD 736-0452

Bell Washer.396 ID x 1.140 OD

$4.99

$

In Stock, Qty 5

0

46

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

47

MTD 754-0625A

V-Belt
(Superseded to 954-0625A)

$28.99

$

Usually ships in 3-6 days

0

48

MTD 618-0558

Spindle Assembly, includes 782-0143
(Superseded to 918-0558A)

$

$

Not available

MTD 782-0143

Skid Assembly not shown (use with 618-0558)
(Superseded to 982-0143A)

$36.99

$

In Stock, Qty 20+

0

MTD 710-3013

Hex Screw 1/4-20 X .5 GR5 not shown

$4.99

$

In Stock, Qty 11

0

MTD 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0
