259724 - Poulan Lawn Tractor (2001) Steering Parts Diagram

Lawn Tractor

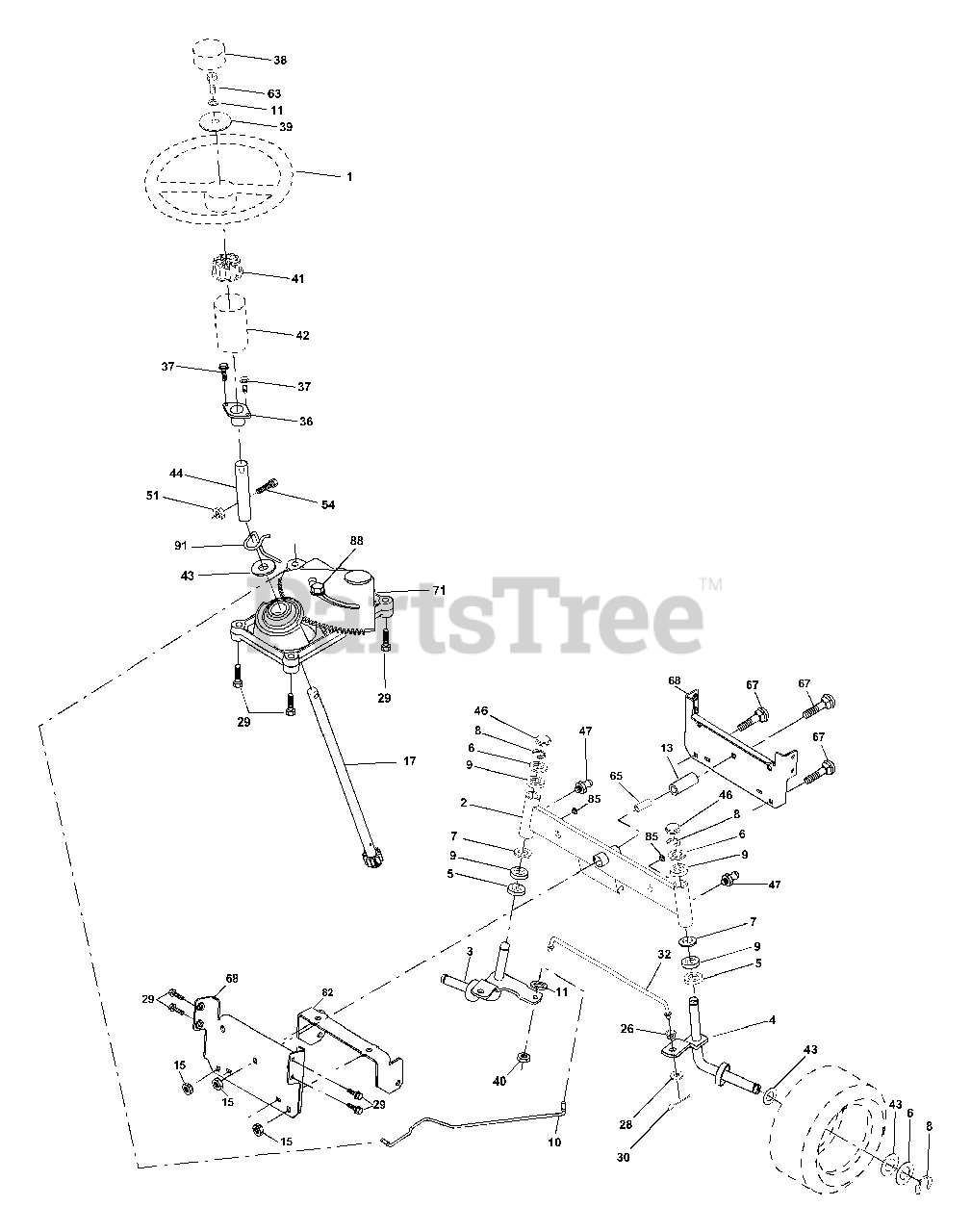

Steering Parts Diagram

  • Title
1

Electrolux/AYP 140044

Steering Wheel
(Superseded to 532175904)

$

$

Not available

2

Electrolux/AYP 154427

Front Axle Asm
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169840

Spindle Asm Lh
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 169839

Spindle Asm Rh
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 6266H

Washer Thrust .75 x 1.230
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

Washer 27/32 x 1-1/4 x 16 Ga.
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

Ring Klip #T5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 175121

Draglink
(Superseded to 532175121)

$68.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 10040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 136518

Spacer Brg Axle Front
(Superseded to 532136518)

$9.99

$

In Stock, only 1 left!

0

15

Murray 145212

Nut Hexflange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 177876

Shaft Asm Strg
(Superseded to 532407600)

$

$

Not available

26

Electrolux/AYP 126847X

Bushing LInk Drag Blk LR
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 19131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 76020412

Pin
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 130465

Rod Tie Wire Form 19.75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Murray 155099

Bushing Strg. 5/8 ID Dash
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 140045

Insert, Steering Wheel
(Superseded to 532175905)

$6.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19133812

Washer 13/32 x 2-3/8 x 12 Ga.
(Superseded to 583789501)

$

$

Not available

40

Electrolux/AYP 7810H

Nut Lock Center 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 100711L

Adaptor Wheel Strg.
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

42

Electrolux/AYP 145054X428

Boot Steering Dash P/L MTL Blk
(Superseded to 532169633)

$

$

Not available

43

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 153720

Extension Steering Non-adjust
(Superseded to 532153721)

$

$

Not available

46

Electrolux/AYP 121232X

Cap Spindle Fr Top Blk
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 6855M

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 73800500

Nut Lock Hx W/Ins 5/16-18unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18unc
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 160367

Spacer Axle
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Electrolux/AYP 72140618

Bolt Rdhd Sqnk 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 169827

Brace Axle
(Superseded to 532169827)

$21.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 175146

Steering Asm.
(Superseded to 532175146)

$182.99

$

In Stock, only 3 left!

0

82

Electrolux/AYP 169835

Bracket Susp Chasis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 133835

Fastner Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 175118

Bolt Shoulder 7/16-20
(Superseded to 532175118)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 175553

Clip Steering
(Superseded to 532175553)

$13.99

$

In Stock, only 1 left!

0
