258702-0124-01 - Briggs & Stratton Vertical Engine Gasket Sets Parts Diagram

Vertical Engine

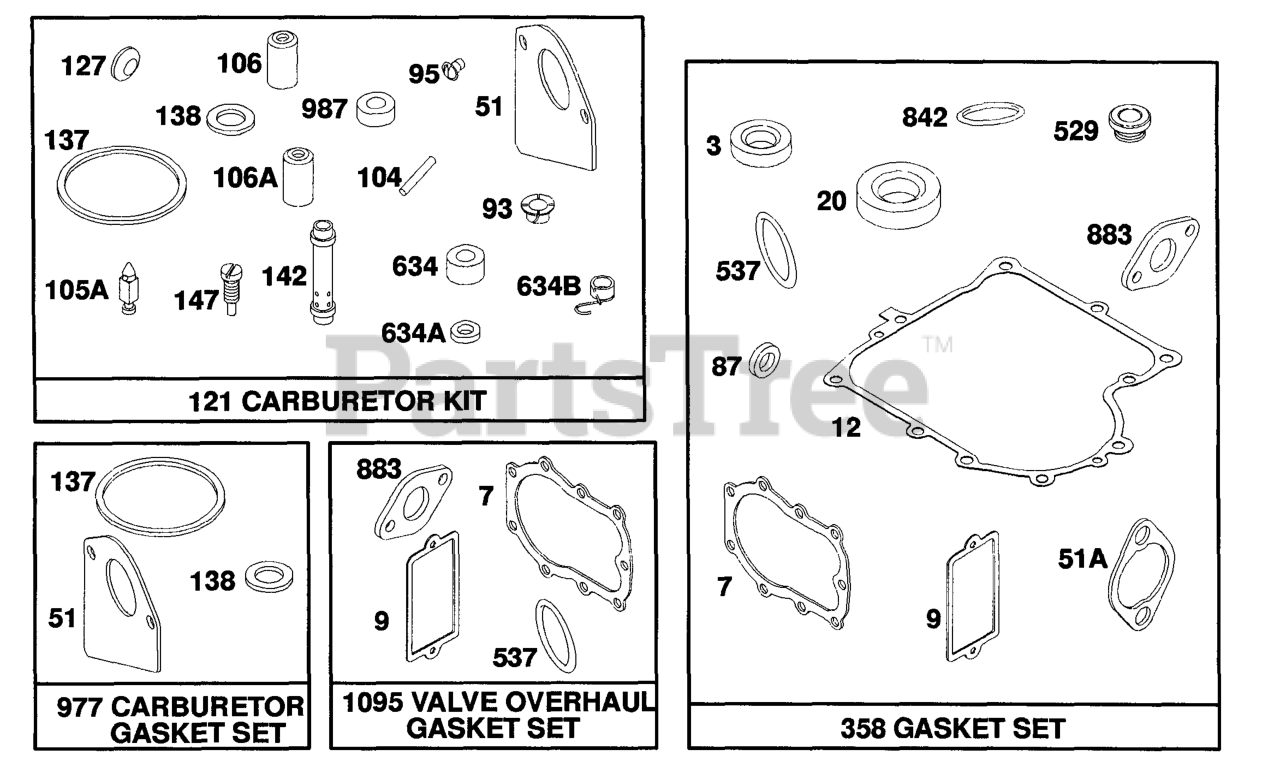

Gasket Sets Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part Number 393411

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part Number 393411. Included in Valve Overhaul Gasket Set-Part No. 498539

$9.49

$

In Stock, only 4 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part Number 393411. Included in Valve Overhaul Gasket Set-Part No. 498539

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 270915

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part Number 393411

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270916

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part Number 393411

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271702

Gasket, Crankcase (.015" Thick, Std.)
(Superseded to 271702S)

Note: Included in Gasket Set-Part Number 393411

$10.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

Note: Included in Gasket Set-Part Number 393411

$6.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 498869

Gasket-Carburetor Mounting

$5.49

$

In Stock, Qty 11

0

51A

Briggs & Stratton 498869

Gasket-Carburetor Mounting

Note: Included in Gasket Set-Part Number 393411

$5.49

$

In Stock, Qty 11

0

51

Briggs & Stratton 272465

Gasket, Carburetor
(Superseded to 692284)

Note: Included in Carburetor Kit-Part No. 495837. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

In Stock, only 2 left!

0

87

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part Number 393411

$7.99

$

In Stock, Qty 8

0

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

Note: Included in Carburetor Kit-Part No. 495837

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No. 495837

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No. 495837

$4.99

$

In Stock, only 1 left!

0

105A

Briggs & Stratton 231855

Valve, Inlet (Lmt 54 55, 91)
(Superseded to 231855S)

Note: Included in Carburetor Kit-Part No. 495837

$6.99

$

Usually ships in 2-12 days

0

106A

Briggs & Stratton 231856

Seat, Inlet (Pump Feed)
(Superseded to 691780)

Note: Included in Carburetor Kit-Part No. 495837

$10.99

$

In Stock, only 2 left!

0

106A

Briggs & Stratton 231854

Seat, Inlet (Gravity Feed)
(Superseded to 690577)

Note: Included in Carburetor Kit-Part No. 495837

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 280328

Seat-Inlet (Gravity Feed System) Lmt 26,27,28, 31
(Superseded to 691901)

Note: Included in Carburetor Kit-Part No. 495837

$8.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 398188

Kit-Needle/seat (Pump Feed)

Note: Included in Carburetor Kit-Part No. 495837

$6.49

$

In Stock, Qty 20+

0

121

Briggs & Stratton 495837

Carburetor Overhaul Kit

$98.99

$

Usually ships in 2-12 days

0

127

No Nomenclature

Note: Included in Carburetor Kit-Part No. 495837

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No. 495837. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No. 495837. Included in Carburetor Gasket Set-Part No. 494385

$5.49

$

In Stock, Qty 20+

0

142

Briggs & Stratton 494878

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 495837

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 495604

Nozzle-Carburetor (High Altitude)

Note: Include(s): 281164 Washer

$20.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: Included in Carburetor Kit-Part No. 495837 (LMT 1,2,3,4,5,7,33,34,37,38,39,40,41,63, 65, 66,77,78,79,80,81,89,97,98,100,101,102,103,113,114,115,116,117,119)

$22.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 393411

Gasket Set

$60.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part Number 393411

$8.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 281106

Seal-O
(Superseded to 691917)

Note: Included in Gasket Set-Part Number 393411. Included in Valve Overhaul Gasket Set-Part No. 498539

$4.49

$

In Stock, Qty 20+

0

634B

Briggs & Stratton 494453

Spring & Seal Assem (Manual Choke)
(Superseded to 690801)

Note: Included in Carburetor Kit-Part No. 495837

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 398970

Seal, Throttle Shaf (Lmt 46, 49, 50, 51, 53, 86)
(Superseded to 692279)

Note: Included in Carburetor Kit-Part No. 495837

$3.99

$

In Stock, only 3 left!

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Kit-Part No. 495837

$6.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part Number 393411

$4.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272293

Gasket-Exhaust Pipe
(Superseded to 692236)

Note: Included in Gasket Set-Part Number 393411. Included in Valve Overhaul Gasket Set-Part No. 498539

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 494385

Gasket Set-Carburetor
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No. 495837

$5.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498539

Gasket Set-Valve Overhaul

$38.99

$

Usually ships in 2-12 days

0
