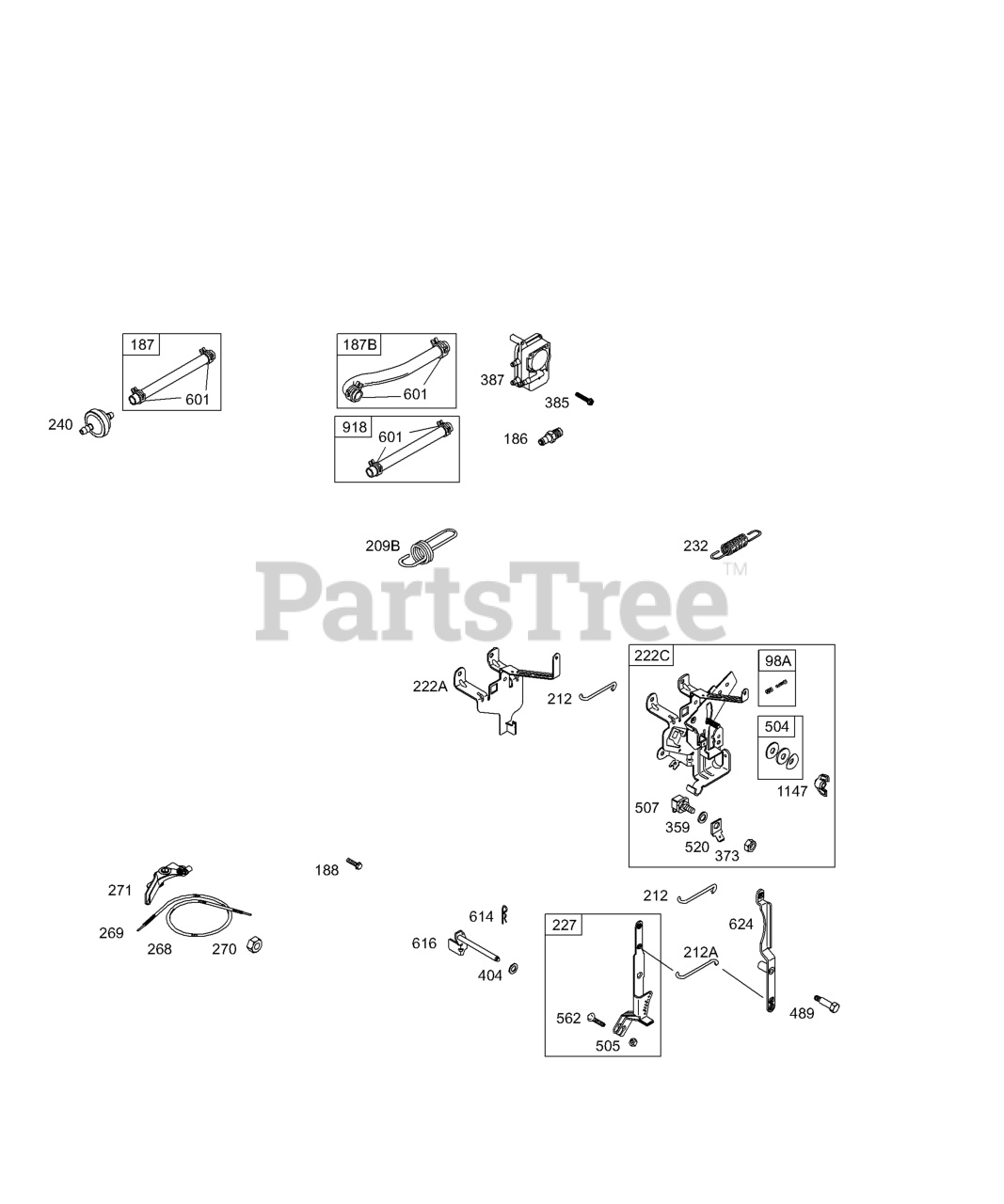

257412-0115-E1 - Briggs & Stratton Horizontal Engine Controls, Fuel Tank, Governor Springs Parts Diagram

Horizontal Engine

Controls, Fuel Tank, Governor Springs Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Kit-Idle Speed

$8.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 691764

Connector-Hose

$14.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 691049

Line-Fuel
(Superseded to 791744)

Note: (Molded) Used Before Code Date 98060200

$14.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

209B

Briggs & Stratton 692905

Spring-Governor

$8.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 691853

Link-Throttle

$9.49

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 691294

Link-Throttle

$9.49

$

Usually ships in 2-12 days

0

222A

Briggs & Stratton 693348

Bracket-Control

$37.99

$

Usually ships in 2-12 days

0

222C

Briggs & Stratton 691481

Bracket-Control

$36.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692143

Lever-Governor Control

$12.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691848

Spring-Governor Link

$11.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 298090S

Filter-Fuel

Note: Used Before Code Date 98060200

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 691673

Screw

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 692026

Pump-Fuel
(Superseded to 799056)

Note: Used Before Code Date 98060200

$30.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

489

Briggs & Stratton 691776

Screw

Note: (Linkage Lever)

$

$

Not available

504

Briggs & Stratton 495659

Washer Set-Friction

$2.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 691407

Crank-Governor

$8.49

$

Usually ships in 2-12 days

0

624

Briggs & Stratton 691415

Lever-Linkage

$12.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 393815

Hose-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

1147

Briggs & Stratton 690355

Nut

Note: (Control Bracket)

$3.49

$

Usually ships in 2-12 days

0
