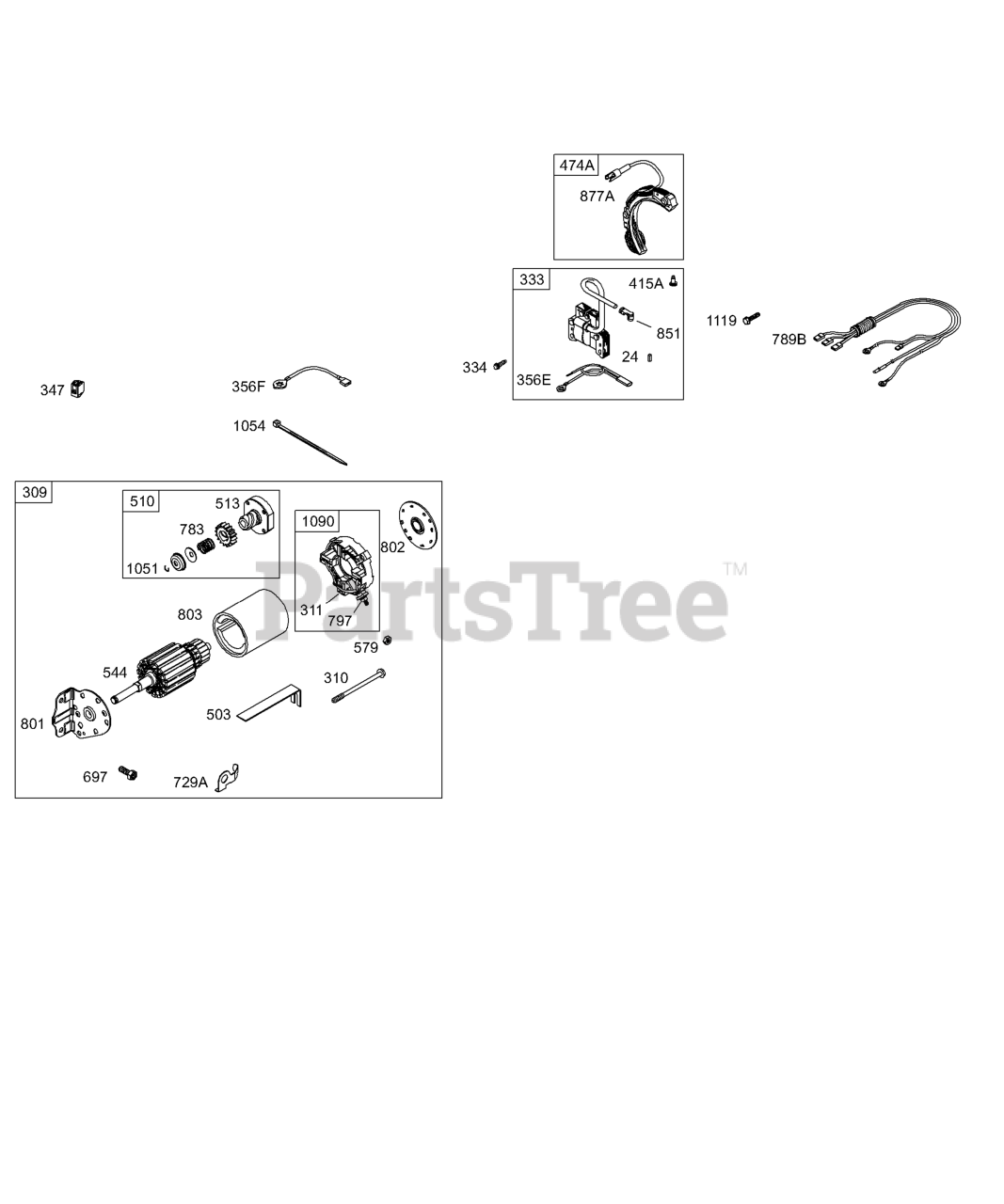

257412-0115-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Gear Reducer Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Gear Reducer Parts Diagram

  • Title

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693054

Motor-Starter
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 398811

Armature-Magneto

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 495098S

Switch-Rocker

$23.99

$

In Stock, only 1 left!

0

356E

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

Note: (2 Wires, 15" And 15-11/16" Long)(Snap Connect Insulated Female BladeTerminal, Ring Terminal, And Bare Wire End)

$11.99

$

In Stock, only 1 left!

0

356F

Briggs & Stratton 690817

Wire-Stop

Note: (1 Wire, 6-1/4" Long)(Push-On Insulated Female Blade Terminal, AndInternal Tooth Lockwasher Ring Terminal)

$9.99

$

Usually ships in 2-12 days

0

415A

Briggs & Stratton 692882

Plug

$6.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 691953

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, Qty 10

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729A

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

789B

Briggs & Stratton 691403

Harness-Wiring

$33.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691429

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: (3 5/8" Housing Length)

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

$18.99

$

In Stock, only 2 left!

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
