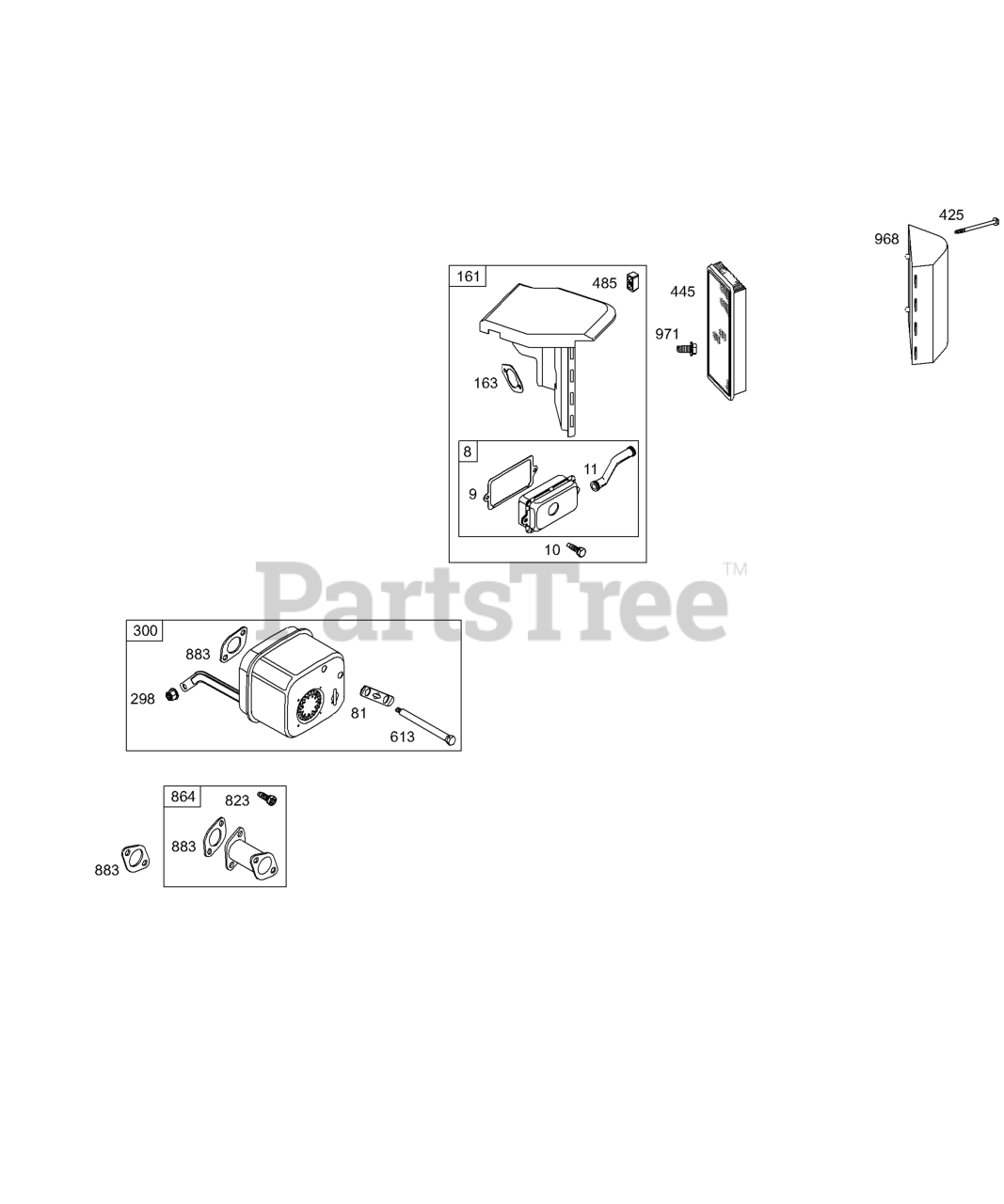

257412-0115-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Muffler Parts Diagram

Horizontal Engine

Air Cleaner, Muffler Parts Diagram

  • Title

8

Briggs & Stratton 498038

Breather Assembly

$60.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691907

Tube-Breather

$24.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691178

LOCK, Muffler Screw

$5.49

$

In Stock, Qty 9

0

161

Briggs & Stratton 498544

Base-Air Cleaner

Note: (Metal)

$152.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

298

Briggs & Stratton 691105

Locknut-Muffler/Elbow

$7.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 497470

Muffler

$119.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 691671

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, Qty 9

0

445

Briggs & Stratton 691643

Filter-Air Cleaner Cartridge

$17.99

$

In Stock, Qty 6

0

485

Briggs & Stratton 692295

Knob-Control

$9.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 691416

SCREW

Note: (Muffler)

$11.99

$

In Stock, Qty 14

0

823

Briggs & Stratton 690363

Screw

Note: (Muffler Adapter)

$4.99

$

In Stock, only 2 left!

0

864

Briggs & Stratton 497469

Adapter-Muffler

$

$

Not available

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 691925

Cover-Air Cleaner

$

$

Not available

971

Briggs & Stratton 691003

SCREW

Note: (Air Cleaner Base to Carburetor)

$3.49

$

In Stock, Qty 9

0
