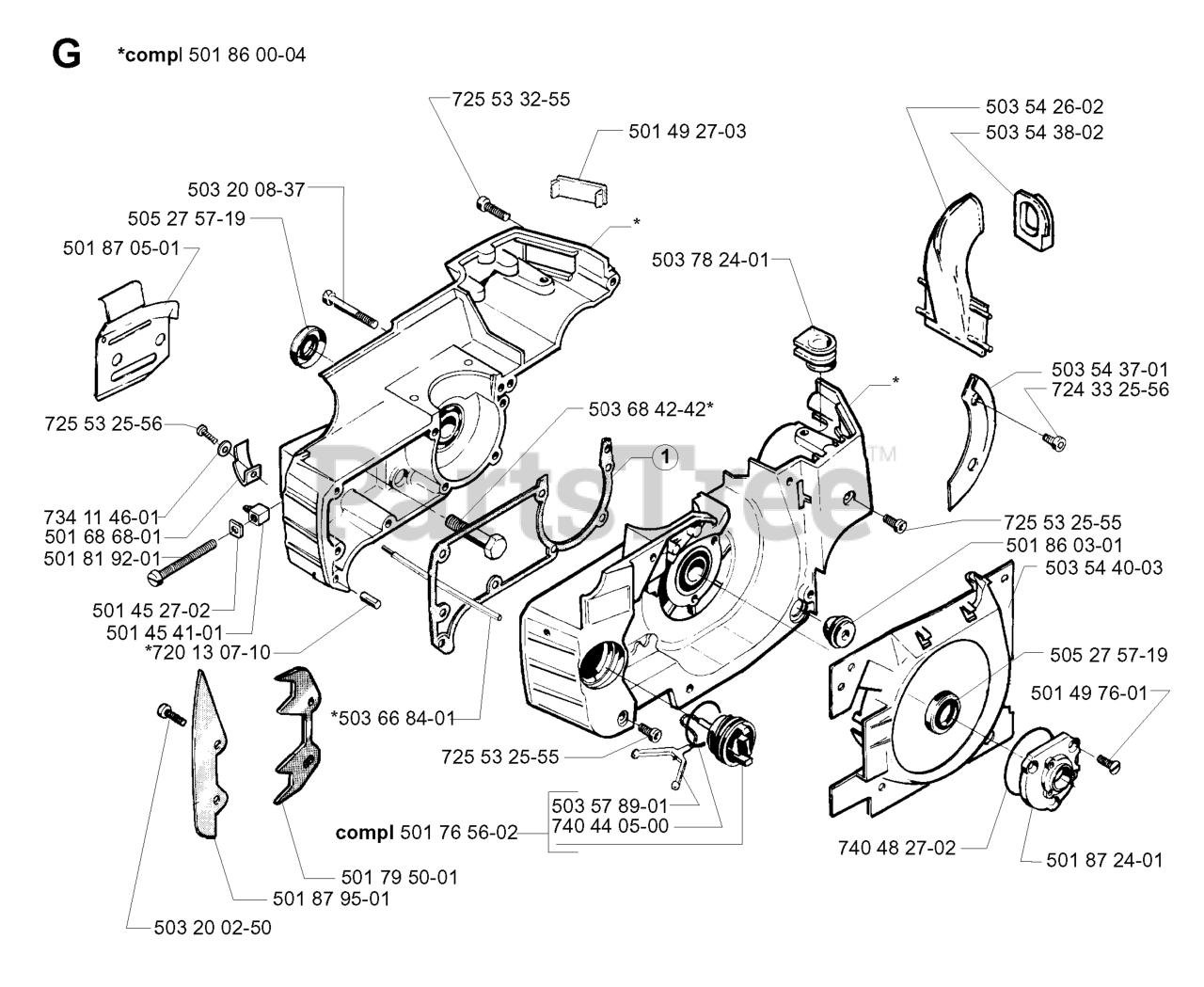

257 - Husqvarna Chainsaw (SN: 20013500001 & Above) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

501 87 95-01

Husqvarna 501879501

Felling Dog

$

$

Not available

740 48 27-02

Husqvarna 740482702

O-RING

$5.99

$

In Stock, only 3 left!

0

725 53 25-55

Husqvarna 725532555

SCREW MC6S 5X10

$4.99

$

In Stock, only 4 left!

0

740 44 05-00

Husqvarna 740440500

O-RING

$7.49

$

Usually ships in 3-10 days

0

503 54 37-01

Husqvarna 503543701

PLATE

$

$

Not available

501 86 00-04

Husqvarna 501860004

CRANKCASE

$

$

Not available

501 68 68-01

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

In Stock, only 2 left!

0

501 86 03-01

Husqvarna 501860301

BUFFER

$

$

Not available

501 45 27-02

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 20+

0

503 54 40-03

Husqvarna 503544003

AIR CONDUCTOR

$14.99

$

Usually ships in 3-10 days

0

501 87 05-01

Husqvarna 501870501

CHAIN GUIDE PLATE

$6.99

$

In Stock, only 1 left!

0

501 79 50-01

Husqvarna 501795001

FELLING DOG

$

$

Not available

725 53 32-55

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

720 13 07-10

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

725 53 25-56

Husqvarna 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$4.99

$

In Stock, only 4 left!

0

724 33 25-56

Husqvarna 724332556

SCREW ***

$

$

Not available

505 27 57-19

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, only 1 left!

0

503 20 08-37

Husqvarna 503200837

$

$

Currently unavailable

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

501 49 76-01

Husqvarna 501497601

SCREW

$

$

Not available

501 81 92-01

Husqvarna 501819201

SCREW

$10.99

$

In Stock, Qty 5

0

503 20 02-50

Husqvarna 503200250

RP SCREW
(Superseded to 503207450)

$6.99

$

In Stock, only 1 left!

0

501 45 41-01

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 5

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503 78 24-01

Husqvarna 503782401

BELLOWS

$

$

Not available

503 68 42-42

Husqvarna 503684242

BAR BOLT

$

$

Not available

503 66 84-01

Husqvarna 503668401

OIL TANK VENT

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

501 76 56-02

Husqvarna 501765602

OIL CAP

$10.99

$

In Stock, Qty 6

0

501 87 24-01

Husqvarna 501872401

BEARING COVER

$

$

Not available

503 54 26-02

Husqvarna 503542602

AIR JET

$

$

Not available

503 54 38-02

Husqvarna 503543802

GROMMET

$

$

Not available
