257 - Husqvarna Chainsaw (1994-06) Chain Brake Assembly Parts Diagram

Chainsaw

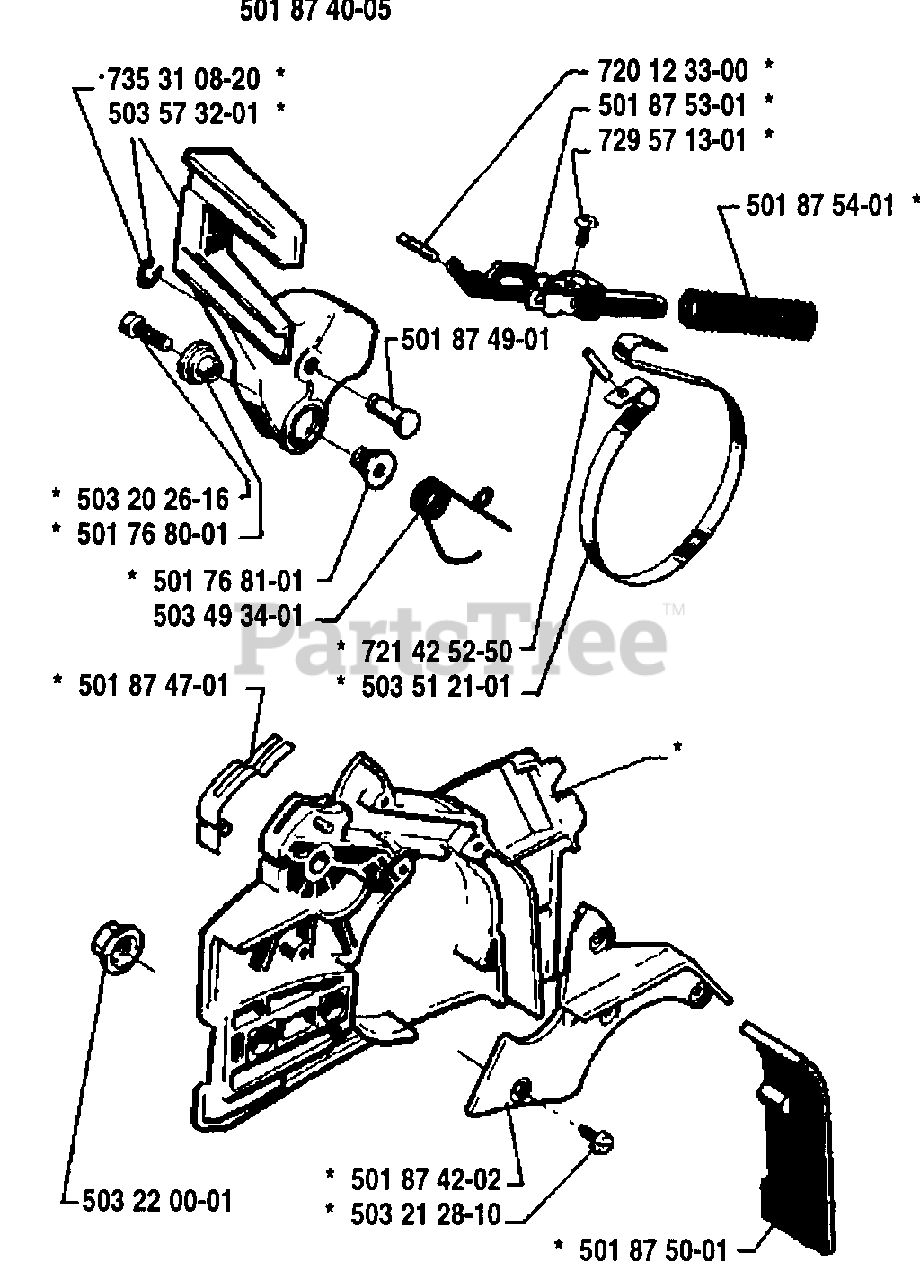

Chain Brake Assembly Parts Diagram

  • Title

501874005

Husqvarna 501874005

CHAINBRAKE
(Superseded to 503747072)

$

$

Not available

735310820

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

503573201

Husqvarna 503573201

HANDGUARD CPL
(Superseded to 503727401)

$45.99

$

In Stock, only 1 left!

0

720123300

Husqvarna 720123300

PIN 3X10

$3.49

$

In Stock, only 4 left!

0

501875301

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

729571301

Husqvarna 729571301

SCREW
(Superseded to 729571305)

$3.99

$

In Stock, Qty 17

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

503202616

Husqvarna 503202616

SCREW

$3.49

$

In Stock, only 4 left!

0

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 7

0

501768101

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

503493401

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501874701

Husqvarna 501874701

SPRING

$4.99

$

In Stock, only 3 left!

0

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

503512101

Husqvarna 503512101

BRAKE BAND

$17.99

$

Usually ships in 3-10 days

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501874202

Husqvarna 501874202

COVER

$

$

Not available

503212810

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 17

0

501875001

Husqvarna 501875001

DUST GUARD NLA

$

$

Not available

501875401

Husqvarna 501875401

SPRING

$

$

Not available
