25659BE (80101) - Snapper 25" Rear-Engine Riding Mower, 6.5hp Smooth Clutch Assembly - Series 8 Parts Diagram

25" Rear-Engine Riding Mower, 6.5hp

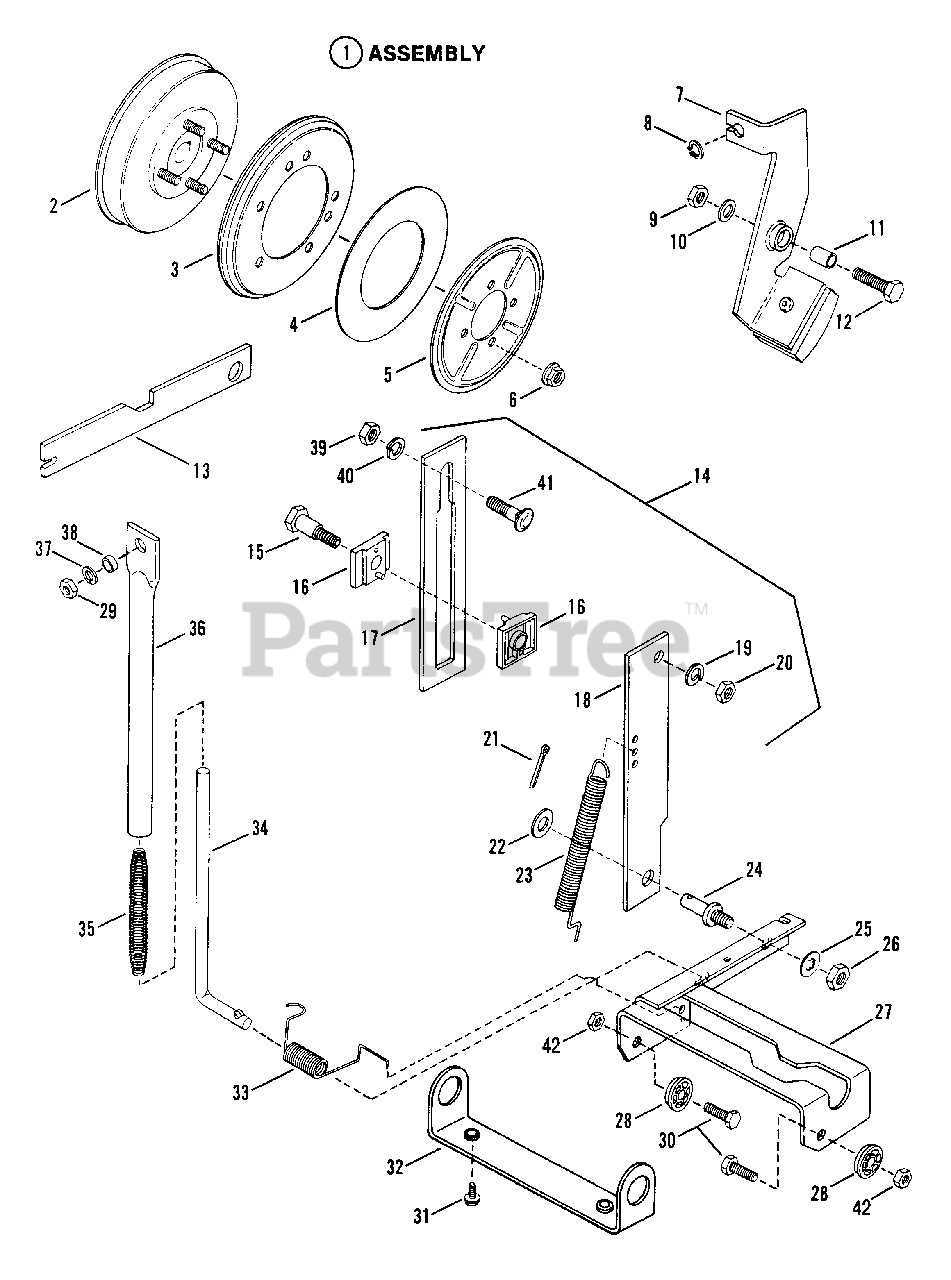

Smooth Clutch Assembly - Series 8 Parts Diagram

  • Title
1

Snapper 7053114

ASSEMBLY, Smooth Clutch
(Superseded to 7600208YP)

Note: (Includes items 2 thru 6); Cannot Be ordered as Assembly. Order parts separately.

$

$

Not available

2

Snapper 7059443

HUB, Driven Disc
(Superseded to 7600142YP)

Note: Was 57338

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

Note: Was 57423

$42.99

$

In Stock, Qty 20+

0

4

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

6

Snapper 7091601

NUT, 5/16 - 18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7052497

ASSEMBLY, Brake Lever
(Superseded to 7052497YP)

Note: (Includes brake lining & rivet)

$13.99

$

In Stock, Qty 20+

0

8

Snapper 7012313

RING, Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 14

0

9

Snapper 7090303

NUT, 1/4-28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

10

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7010916

SPACER
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 10

0

12

Snapper 7090535

SCREW, 1/4-28 x 1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7032392

TOOL, Smooth Clutch

$31.99

$

In Stock, only 1 left!

0

14

Snapper 7051474

ASSEMBLY, Guide & Link

Note: (Includes items 15 thru 20)

$

$

Not available

15

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

16

Snapper 7014663

SLIDE-HALF
(Superseded to 7014663YP)

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7032370

GUIDE, Clutch Link
(Superseded to 7032370YP)

$19.99

$

Usually ships in 2-12 days

0

18

Snapper 7032371

LINK, Clutch
(Superseded to 7032371YP)

$40.99

$

Usually ships in 2-12 days

0

19

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091313

COTTER-PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7013885

SPRING, Clutch Brake
(Superseded to 7013885YP)

$

$

Not available

24

Snapper 7015464

STUD, Clutch Link
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

25

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7091630

NUT, 3/8 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7047887

LIFT, Yoke
(Superseded to 7047887YP)

$149.99

$

In Stock, only 3 left!

0

28

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

31

Snapper 7090815

SCREW, 3/8-16 x 1/2" Self-Tapping
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

32

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

Note: Was 38296

$56.99

$

In Stock, only 1 left!

0

33

Snapper 7011821

SPRING
(Superseded to 7011821YP)

$14.99

$

Usually ships in 2-12 days

0

$

$

Not available

35

Snapper 7014771

SPRING
(Superseded to 7014771YP)

$19.99

$

Usually ships in 2-12 days

0

36

$

$

Not available

37

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

38

Snapper 7011968

ROLLER
(Superseded to 7011968YP)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

41

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0
