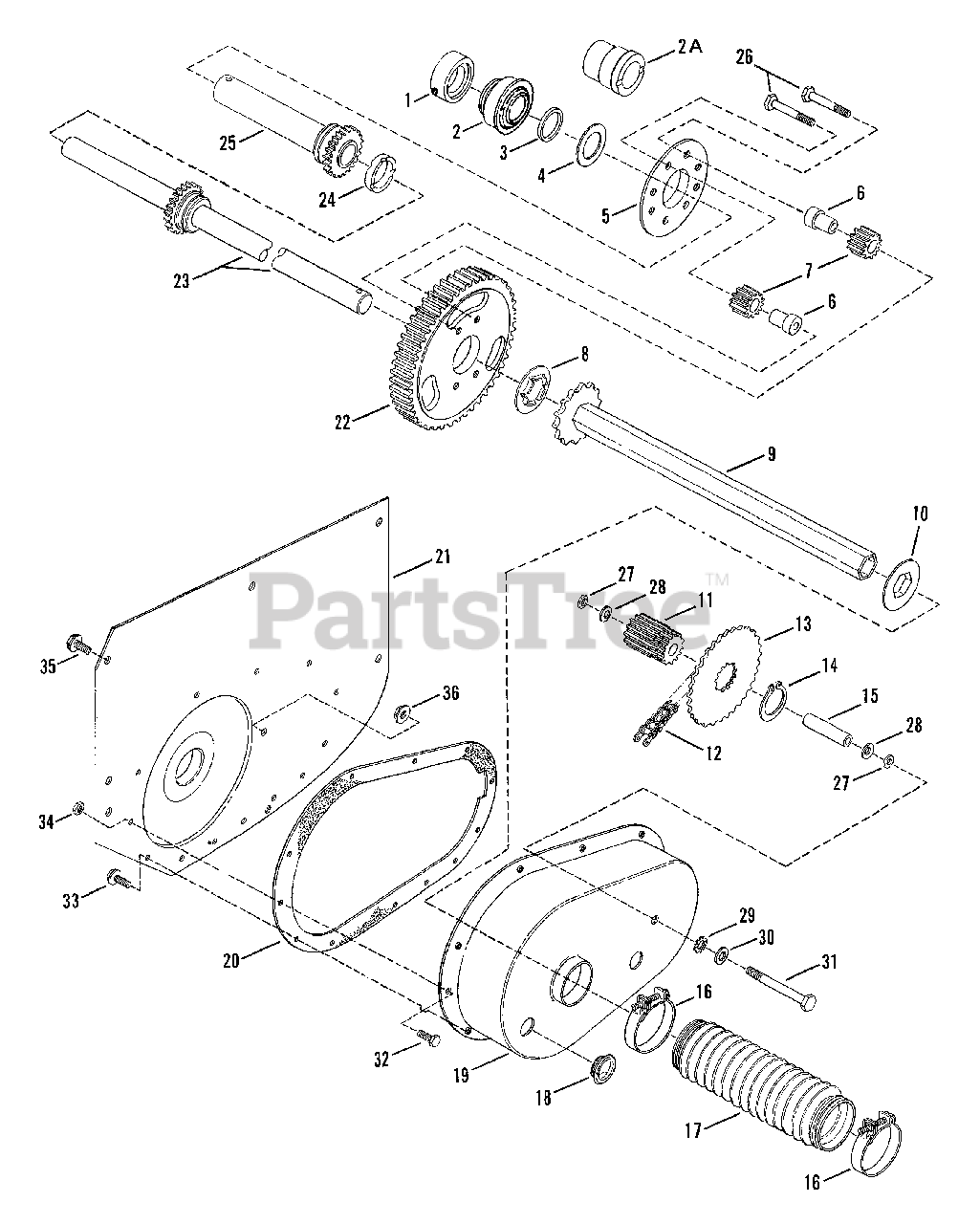

25657BE (81820) - Snapper 25" Rear-Engine Riding Mower, 6.5hp Differential, R.H. Fender Parts Diagram

25" Rear-Engine Riding Mower, 6.5hp

Differential, R.H. Fender Parts Diagram

  • Title

1

Snapper 7014401

COLLAR, Lock (12 & 14 HP Models)
(Superseded to 7014401YP)

Note: (Incl. 5/16C x 5/16" Set Screw #90201)

$26.99

$

Usually ships in 2-12 days

0

2

Snapper 7018822

BALL BEARING, Axle, R.H. Fender (12 & 14 HP Models)
(Superseded to 7018822YP)

$74.99

$

In Stock, Qty 6

0

2A

Snapper 7012296

BEARING, Axle, R.H. Fender (6.5 & 8 HP Models)
(Superseded to 7012296YP)

$14.99

$

In Stock, only 4 left!

0

3

Snapper 7032107

SPACER, Short Axle

$10.99

$

In Stock, Qty 8

0

4

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$

$

Not available

6

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7021127

PINION GEARS, Differential 94)
(Superseded to 7021127YP)

$23.99

$

In Stock, only 3 left!

0

8

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, only 4 left!

0

10

Snapper 7010988

WASHER, Hex Insert
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 15

0

11

Snapper 7010964

GEAR, 11 Teeth, 10 Pitch
(Superseded to 7200128YP)

$14.99

$

In Stock, only 1 left!

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

13

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$20.99

$

In Stock, only 2 left!

0

14

Snapper 7010965

RING, Retaining External
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

15

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

17

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 17083

$10.99

$

In Stock, Qty 20+

0

18

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

19

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

20

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

Note: Was 18060

$24.99

$

In Stock, Qty 20+

0

21

Snapper 7037957

FENDER, Right Hand (Ball Bearing)(2.498" Hole)

$

$

Not available

--

Snapper 7037280

FENDER, Right Hand (Bushing) (1 .620" Hole)
(Superseded to 7301301YP)

$149.99

$

In Stock, only 1 left!

0

22

Snapper 7021158

GEAR, 63 Teeth, 10 Pitch
(Superseded to 7021158YP)

$109.99

$

In Stock, Qty 15

0

23

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

Note: Was 47763

$136.99

$

In Stock, Qty 12

0

24

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7057398

AXLE, Short
(Superseded to 7600137YP)

Note: (Incl. Gear) Use only with Long Axle 47763

$95.99

$

In Stock, only 2 left!

0

26

Snapper 7012333

CAPSCREW, 5/16-24 x 1-5/8" Hex, Special Lock
(Superseded to 7012333YP)

$4.99

$

In Stock, only 3 left!

0

27

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7011782

WASHER, 5/16" Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090395

WASHER, 5/16" External Tooth
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

30

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7011042

BOLT, 5/16-24 x 2-5/8" Idler
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

32

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

33

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

34

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

35

Snapper 7090361

SCREW, 5/16-18 x 5/8", Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

Snapper 7060411

KIT, Differential
(Superseded to 7600229YP)

Note: (Includes 2A and 37280 Bushing Fender)

$1049.99

$

Usually ships in 2-12 days

0

Snapper 7060662

KIT, Differential
(Superseded to 7600229YP)

Note: (Includes item 2 and 37957 Ball Bearing Fender)

$1049.99

$

Usually ships in 2-12 days

0
