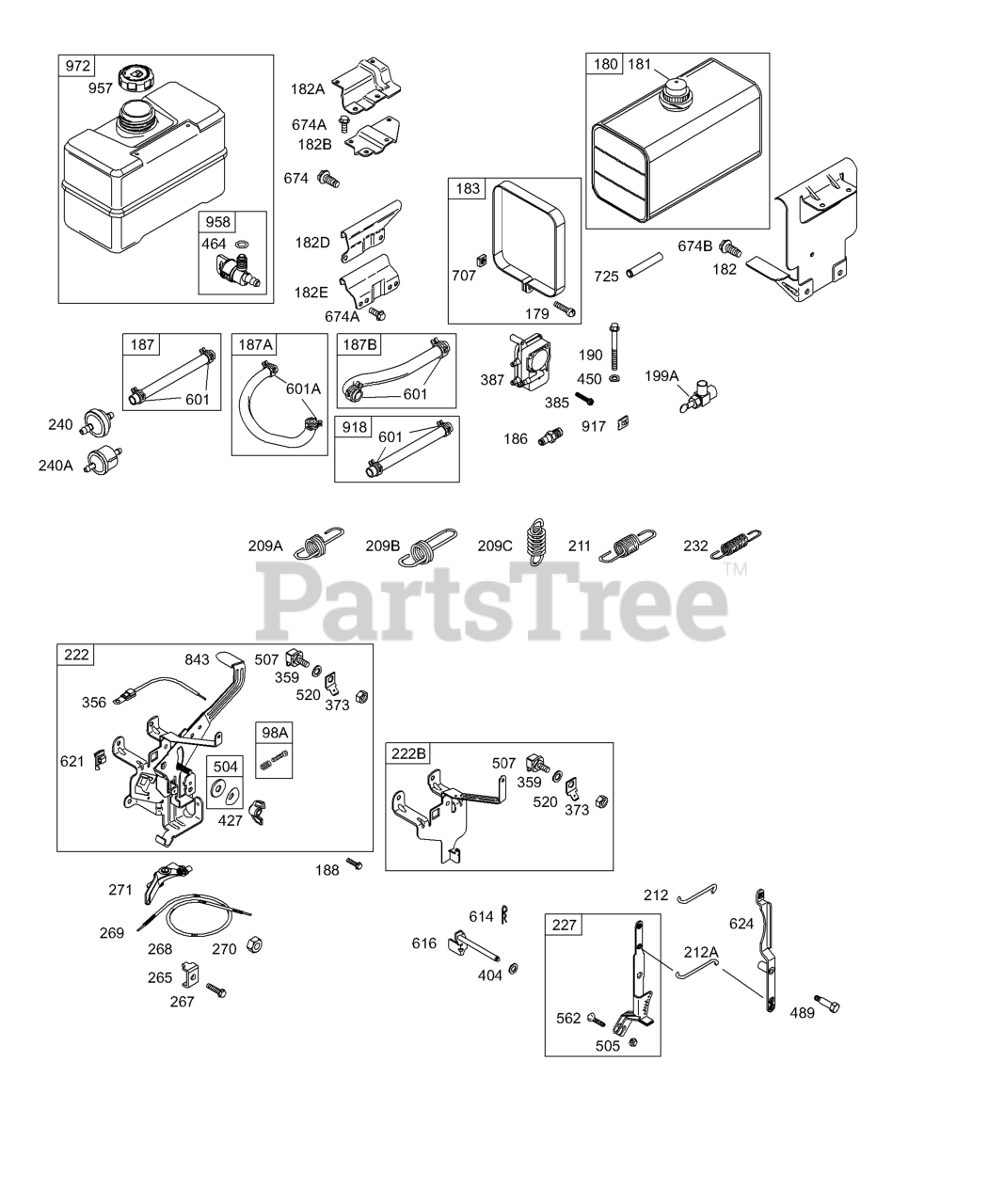

256417-0634-A2 - Briggs & Stratton Horizontal Engine Controls, Fuel Tank, Governor Springs Parts Diagram

Horizontal Engine

Controls, Fuel Tank, Governor Springs Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Kit-Idle Speed

$8.99

$

Usually ships in 2-12 days

0

179

Briggs & Stratton 690280

Screw

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

Tank-Fuel

Note: (Metal)

$

$

Not available

181

Briggs & Stratton 392305S

Cap-Fuel Tank
(Superseded to 791545)

Note: (Metal)

$

$

Not available

182

Briggs & Stratton 691200

Bracket-Fuel Tank

Note: (Metal Fuel Tank)

$19.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 691937

Strap-Fuel Tank

$33.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 691764

Connector-Hose

$14.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 296004

Line-Fuel
(Superseded to 791745)

Note: (Cut To Required Length)

$10.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 497029

Line-Fuel

Note: (Molded)

$16.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 691049

Line-Fuel
(Superseded to 791744)

Note: (Molded)

$14.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

190

Briggs & Stratton 690904

Screw

Note: (Fuel Tank)

$11.99

$

In Stock, only 4 left!

0

199A

Briggs & Stratton 692302

Valve-Fuel Shut Off
(Superseded to 592840)

Note: (Metal)

$43.99

$

In Stock, only 1 left!

0

199A

Briggs & Stratton 691940

Valve-Fuel Shut Off
(Superseded to 592840)

Note: (Metal)

$43.99

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 263055

Spring-Governor

Note: Used Before Code Date 97042800

$7.49

$

Usually ships in 2-12 days

0

209B

Briggs & Stratton 692905

Spring-Governor

Note: Used After Code Date 97042700

$8.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 692912

Spring-Governed Idle

Note: Used After Code Date 97042700

$7.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 691853

Link-Throttle

Note: (Upper)

$9.49

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 691294

Link-Throttle

Note: (Lower)

$9.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 691481

Bracket-Control

Note: Used After Code Date 97042700

$36.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692143

Lever-Governor Control

$12.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691848

Spring-Governor Link

$11.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

240A

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

Note: (Magneto Armature)

$45.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 691408

Wire-Stop

Note: (1 Wire, 4" Long)(Snap Connect Insulated Ring Terminal, And Bare WireEnd)

$12.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 691673

Screw

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 692026

Pump-Fuel
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

427

Briggs & Stratton 690355

Nut

Note: (Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

450

Briggs & Stratton 691261

WASHER

Note: (Fuel Tank Bracket) Used After Code Date 98111500

$3.99

$

In Stock, only 3 left!

0

464

Briggs & Stratton 691898

Seal-O Ring

Note: (Fuel Shut-off Valve)

$5.49

$

In Stock, only 1 left!

0

489

Briggs & Stratton 691776

Screw

Note: (Linkage Lever)

$

$

Not available

504

Briggs & Stratton 495659

Washer Set-Friction

$2.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: Used After Code Date 98111500

$3.99

$

In Stock, Qty 16

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 691407

Crank-Governor

$8.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

624

Briggs & Stratton 691415

Lever-Linkage

$12.99

$

In Stock, only 1 left!

0

674

Briggs & Stratton 691058

Screw

Note: (Fuel Tank Bracket)

$5.99

$

In Stock, Qty 11

0

674A

Briggs & Stratton 691635

Screw
(Superseded to 690708)

Note: (Fuel Tank Bracket)

$2.99

$

Usually ships in 2-12 days

0

674B

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Fuel Tank Bracket)

$3.99

$

In Stock, Qty 6

0

707

Briggs & Stratton 690279

Nut

Note: (Fuel Tank Strap)

$3.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 690403

Shield-Heat

$6.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 691322

Sleeve-Lever

$2.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 691737

Valve-Handle Shutoff

$7.49

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Hose-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988S

Cap-Fuel Tank
(Superseded to 799719)

Note: (Plastic)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

Valve-Fuel Shut Off
(Superseded to 698182)

Note: (Plastic)

$

$

Not available

972

Briggs & Stratton 691993

Tank-Fuel

Note: (Plastic) (4 Quart)

$166.99

$

In Stock, Qty 10

0
