2560 - Weed Eater Blower, Electric Electric Blower/Blower Assembly Parts Diagram

Blower, Electric

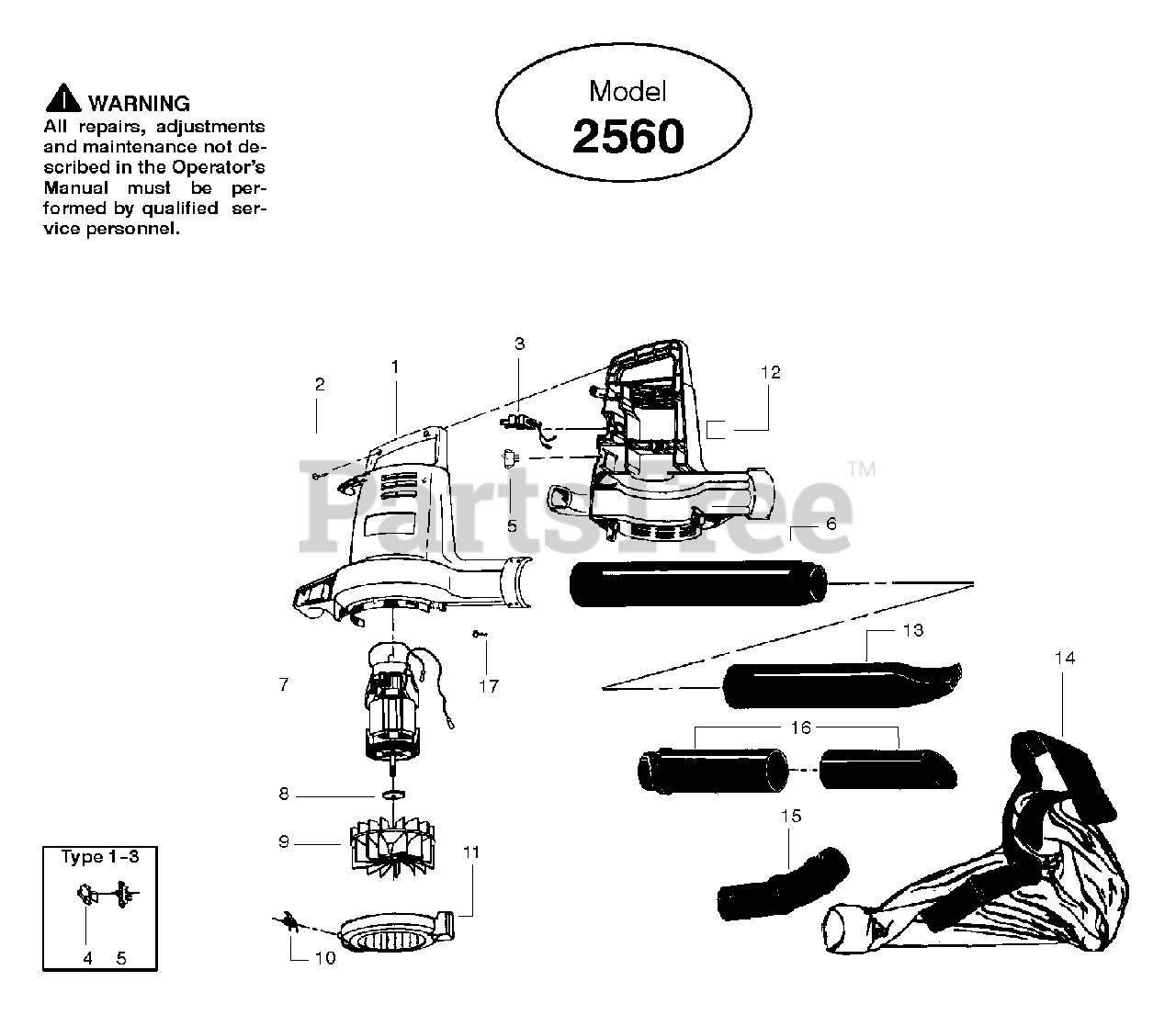

Electric Blower/Blower Assembly Parts Diagram

  • Title
1

Poulan 530351400

Housing Set Type 1

$

$

Not available

1

Poulan 530402169

Housing Set Type 2

$

$

Not available

1

Poulan 530402773

Housing Set Type 3

$

$

Not available

1

Poulan 530404049

Housing Set Type 4
(Superseded to 530404378)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530401846

Wire Harness Type 1 & 2

Note: (Incls. Switch )

$

$

Not available

3

Poulan 530403778

Wire Harness Type 3
(Superseded to 545124301)

Note: (Incls. Switch )

$

$

Not available

3

Poulan 530404162

Wire Harness Type 4

Note: (Incls. Switch )

$

$

Not available

4

Poulan 530401008

Switch Cover (Type 1-3)

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 530351409

Switch Type 1 & 2

$

$

Not available

5

Poulan 530401094

Switch Type 3

$

$

Not available

5

Poulan 530404190

Switch Type 4

$

$

Not available

6

Poulan 530036434

Blower Tube Type 1

$

$

Not available

6

Poulan 534352705

Blower Tube Type 2,3,4

$

$

Not available

7

Poulan 530351439

Motor Ass'y. Type 1 & 2

$

$

Not available

7

Poulan 530403312

Motor Ass'y. Type 3,4

$55.99

$

Usually ships in 3-10 days

0

8

$

$

Not available

9

Poulan 530037183

Impeller Type 1 & 2

$

$

Not available

9

Poulan 530401097

Impeller Type 3,4

$

$

Not available

10

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530403574

Assy-Cover Spring

Note: (incl. 10)

$

$

Not available

12

Poulan 530400089

Pad (Type 1 & 2)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530094662

Nozzle Type 1

$

$

Not available

13

Poulan 530036769

Nozzle Type 2,3,4
(Superseded to 530402461)

$

$

Not available

14

Poulan 530095114

Vacuum Bag Kit Type 1

$30.99

$

Usually ships in 3-10 days

0

14

Poulan 530402533

Vacuum Bag Kit Type 2,3,4

$44.99

$

Usually ships in 3-10 days

0

15

Poulan 530095118

Elbow (Type 1 only)

$5.49

$

Usually ships in 3-10 days

0

16

Poulan 530069270

Vacuum Tube Kit Type 1

$

$

Not available

16

Poulan 530402499

Vacuum Tube Kit Type 2,3,4

$

$

Not available

17

$3.99

$

Usually ships in 3-10 days

0

Poulan 530163993

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530402365

Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530402500

Warning Decal

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
