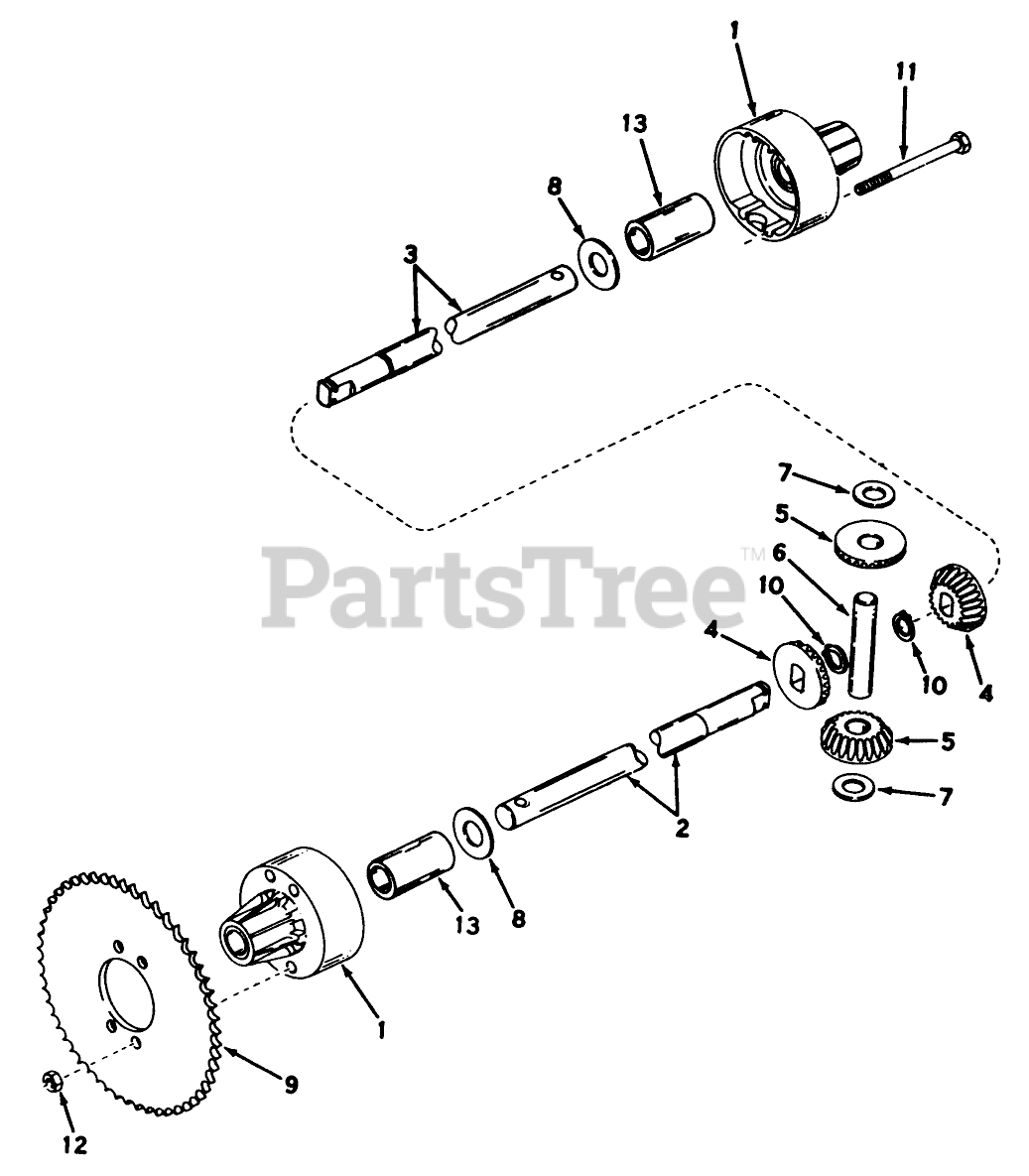

25574 - Lawn-Boy 30" Rear-Engine Riding Mower (SN: 400000001 - 499999999) (1974) Part List 1 4 Parts Diagram

30" Rear-Engine Riding Mower

Part List 1 4 Parts Diagram

  • Title
1

Lawn-Boy M774073

Housing, Differential Carrier (Incl. No. 13)

Note: NOTE: Purchase hardware items locally.

$

$

Currently unavailable

2

Lawn-Boy M774125

Axle, Short

$

$

Currently unavailable

3

Lawn-Boy M774126

Axle, Long

$

$

Currently unavailable

4

Lawn-Boy M778067

Gear, Bevel

$

$

Currently unavailable

5

Lawn-Boy M778068

Gear, Pinion

$

$

Currently unavailable

6

Lawn-Boy M786040

Pin, Drive

$

$

Currently unavailable

7

Lawn-Boy M780073

Washer, Thrust

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Lawn-Boy M12590

Sprocket

$

$

Currently unavailable

10

Lawn-Boy M788038

Ring, Snap

$

$

Currently unavailable

11

Lawn-Boy M792044

Screw, Hex Hd., 5/16-18 x 4

$

$

Currently unavailable

12

Lawn-Boy M792042

Nut, Lock, 5/16-18

$

$

Currently unavailable

13

$

$

Currently unavailable
